YZL205 Completely Automatic Lubricating Oil Filter
- Category:Filter
- Delivery Time:15 days
- Packing Details:Wooden box
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details

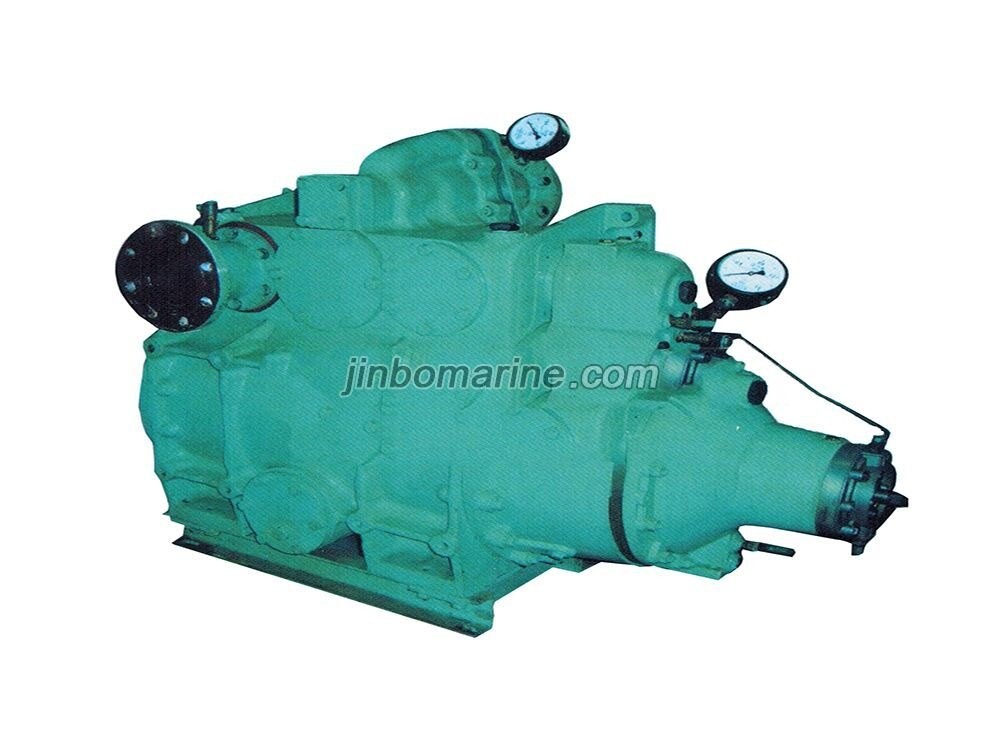

YZL205 Completely Automatic Lubricating Oil Filter
Features and use
full-auto lube-oil filte works intermitently by hydaulic and backwashes by internal differential pressure without stopping.
1. full-auto lube-oil filter is made of hydraulic motor, unit, body, end cover and filter element.
2. full-auto lube-oil filter with high automatable, high filter precision and convenient installation can automatically self-clean without stopping and it is no necessary to operate by electric, compressed air and human force.
3. Full-auto lube-oil filter runs long and duration.
4. Becase of continually backwashing, pressure drop is stable.
5. The fliter element(precision 30um-50um) made by stainless-steel wire,can filter sludge and impuirty, and is also sturdy abd anti-corro-sive. the net-plate filter element has compac construction and high filter efficient, and the filter precision is 50um-50um.
6. Full-auto lube-oil filter is purified without pollution and waste, the products are widely used in oil pipeline of diesel engine of ships, hydraulic system in iron and steel industry and machinery industry, oil pipe of marine machinery metallurgy, petrochemical and heavy machinery, it is and ideal equipment for purifying.

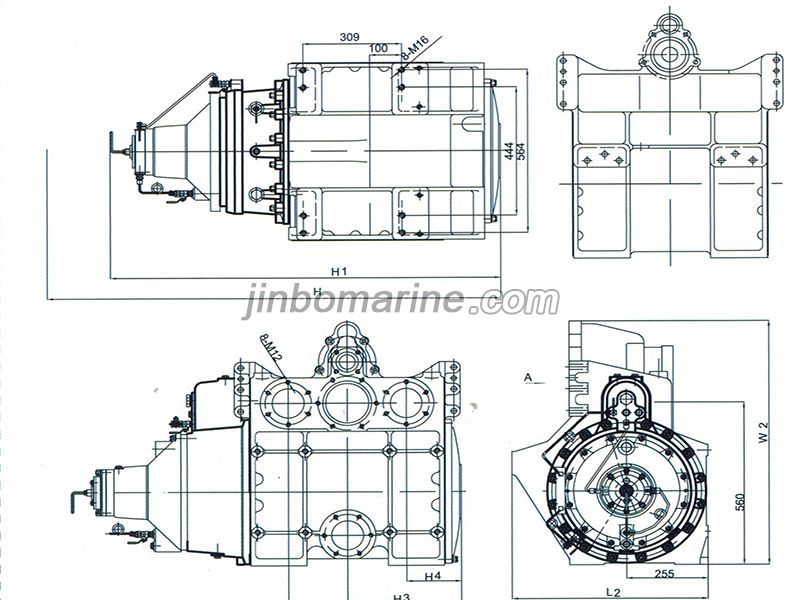

YZL205 Completely Automatic Lubricating Oil Filter Structure Diagram
YZL205 Completely Automatic Lubricating Oil Filter Technical Parameters
Model | Flow(referencem³/h) | Caliber and jointing size(mm) | Overall size(mm) | Weight(kg) | |||||||||||
DN | D | D1 | L1 W1 | N-D1 | N-D2 | H | H1 | H2 | H3 | H4 | L2 | W2 | |||
YZL-205 (Vertical) |
120 | 100 | 220 | 180 | 400*400 | 8-18 | 4-18 | 2000 | 1300 | 580 | 355 | 36 | 767 | ||
YZL-205 (Horizontal) |
120 | 100 | 145 |
309*444 309*564 |
8-M12 | 4-M16 | 2000 | 1230 | 543 | 358 | 173 | 615 | 482 |
