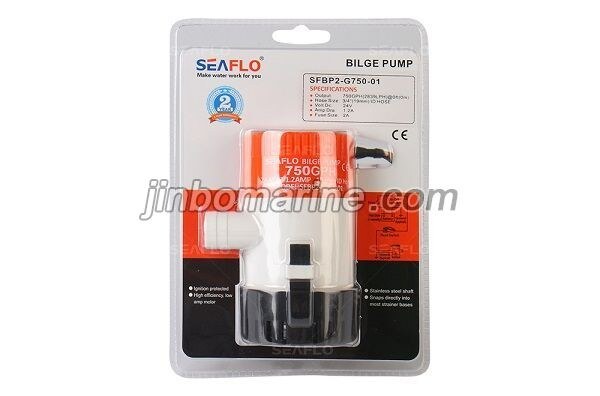

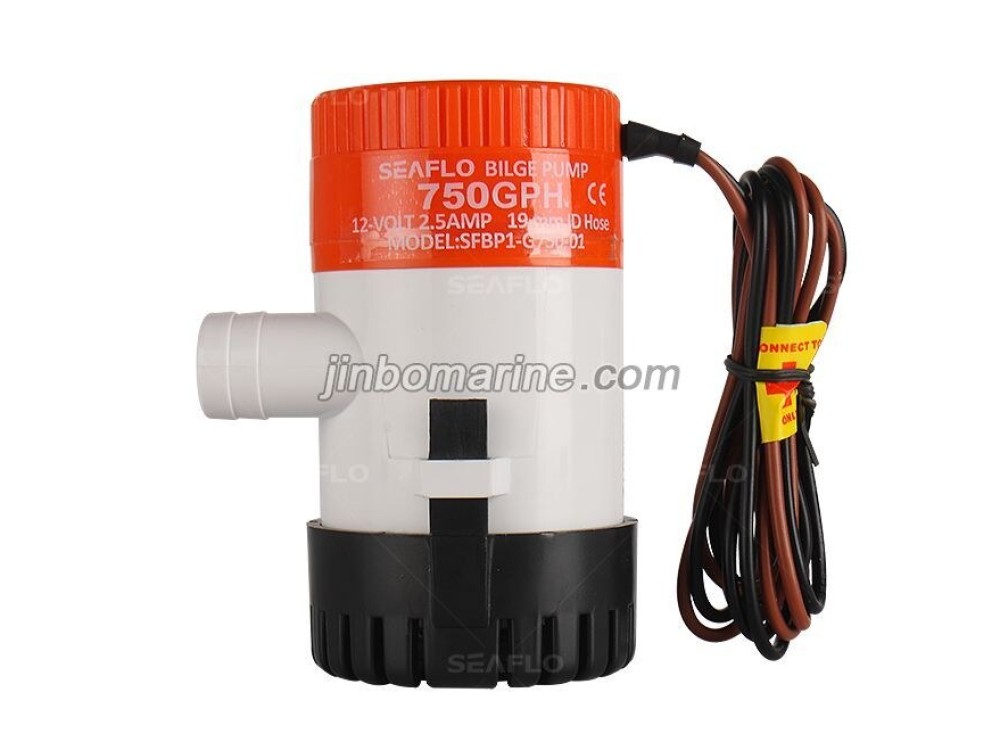

01 Series 750GPH Bilge Pump
SEAFLO non-automatic bilge pumps offer water evacuation activated by a panel or float switch. Our larger impeller design and more robust motor allow us to outperform our competitors. Our removable strainer base fits industry standard mounting conventions though, so you’ll have no problem changing to us from them.
STANDARD PUMP CONFIGURATIONS
| Model | FlowRate | Voltage | Max Draw | Fuse Amps | Head | Wire Lead | Outlet Dia | N.W. / G.W. |
| SFBP1-G750-01 | 750 GPH | 12 V | 2.5 A | 5.0 A |
9' (3m) |
3' (1m) | 3/4" | 0.33/0.40 kg |
| SFBP2-G750-01 | 750 GPH | 24 V | 1.2 A | 2.0 A | 9' (3m) | 3' (1m) | 3/4" | 0.33/0.40 kg |
PERFORMANCE
|
Voltage(V)
|
Current(A)
|
Flow
|
Head(M)
|
|
|
GPH
|
LPH |
|||
| OPEN | 2.3 | 655 | 2101 | 0 |
| 12 | 2.3 | 535 | 2025 | 0.5 |
| 12 | 2.3 | 356 | 1347 | 1 |
| 12 | 2.2 | 376 | 1423 | 1.5 |
| 12 | 2.3 | 253 | 958 | 2 |
| 12 | 2.2 | 188 | 712 | 2.5 |
|
ge(V)
|
Current(A)
|
Flow
|
Head(M)
|
|
|
GPH
|
LPH |
|||
| 13.6 | 3.2 | 631 | 2407 | 0 |
| 13.6 | 3.5 | 407 | 1540 | 1 |
| 13.6 | 3.5 | 299 | 1132 | 2 |
