CYZ-A Series Marine Self-priming Centrifugal Oil Transfer Pump
- Category:Centrifugal Pump
- Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft,Stainless steel pump case
- Standards:standard
- Certificate:CCS，Rina，ABS, BV, GL,
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Cyz-a series marine self-priming centrifugal pump
1. High Quality
2. Large displacement and high effciency
3. Easy and
stable operation
4. Competitive price
5. Fast Delivery
General Description
CYZ - type A self-priming centrifugal pump according to the relevant technical data at home and abroad after digestion, absorption, improve the development of the latest pump products, Widely used in ship terminal station oil tanker wharf, tankers airport, Respectively transport gasoline kerosene diesel fuel, etc. Transmission of medium temperature from – 20c to 80c, Viscosity below 100 pearl and the solid content of less than 30%
Main Feature
1.This is a kind of self-priming centrifugal pump, featured by a compacted structure, easy and stable operation, easy maintenance, high efficiency, long-life, strong self-priming capacity, etc. When it is used in oil tanker or other ships, it can double as stripping pump, ship ballast pump, Marine fire pump.The pump was made of high quality materials, sealing the calculation with hard alloy mechanical seal, durable, spit out line does not need to install the safety valve, inlet line does not need to install the bottom valve, thus simplifies the pipeline system, and improve the working conditions.
Model Explanation
- 25CYZ-A-20
- 25-Inlet diameter 80mm
- CYZ-Marine self priming horizongtal centrifugal oil pump
- A-Improvement model
- 20-Head 20m

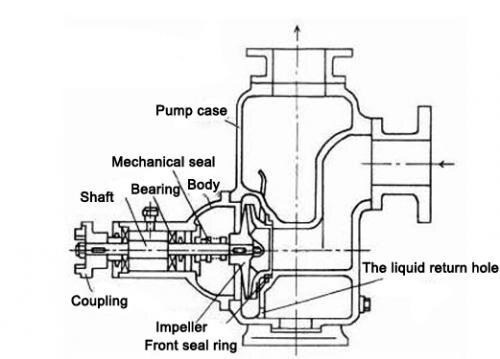

Structural Specifications
List of performance parameters
| MODEL | CAPACITY | HEAD | self-priming | RPM | NPSH | |
| time | ||||||
| ( m3/h) | (m) | (min) | r/min | m | ||
| 25CYZ-A-20 | 3.2 | 20 | 2 | 2900 | 3 | |
| 25CYZ-A32 | 3.2 | 32 | 2 | 3 | ||
| 32CYZ-A50 | 3.2 | 50 | 2 | 3 | ||
| 40CYZ-A-20 | 6.3 | 20 | 2 | 3 | ||
| 40CYZ-A-32 | 6.3 | 32 | 2 | 3 | ||
| 40CYZ-A-40 | 10 | 40 | 2 | 3.5 | ||
| 40CYZ-A-50 | 6.3 | 50 | 2 | 3.5 | ||
| 50CYZ-A-12 | 12.5 | 12 | 2 | 3.5 | ||
| 50CYZ-A-20 | 15 | 20 | 2 | 3.5 | ||
| 50CYZ-A-30 | 12.5 | 30 | 2 | 3.5 | ||
| 50CYZ-A-35 | 12.5 | 35 | 2 | 3.5 | ||
| 50CYZ-A-40 | 12.5 | 40 | 2 | 3.5 | ||
| 50CYZ-A-50 | 12.5 | 50 | 2 | 3.5 | ||
| 50CYZ-A-60 | 12.5 | 60 | 2 | 3.5 | ||
| 50CYZ-A-75 | 15 | 75 | 2 | 3.5 | ||
| 65CYZ-A-15 | 30 | 15 | 2.5 | 3.5 | ||
| 65CYZ-A-32 | 25 | 32 | 2 | 3.5 | ||
| 65CYZ-A-50 | 25 | 50 | 2 | 3.5 | ||
| 65CYZ-A-70 | 25 | 70 | 2 | 3.5 | ||
| 80CYZ-A-13 | 35 | 13 | 3.4 | 4.5 | ||
| 80CYZ-A-17 | 43 | 17 | 3 | 4.5 | ||
| 80CYZ-A-22 | 40 | 22 | 2.5 | 4.5 | ||
| 80CYZ-A-25 | 50 | 25 | 2.5 | 4.5 | ||
| 80CYZ-A-32 | 50 | 32 | 2 | 4 | ||
| 80CYZ-A-40 | 50 | 40 | 2 | 4 | ||
| 80CYZ-A-55 | 60 | 55 | 2 | 4 | ||
| 80CYZ-A-70 | 60 | 70 | 2 | 4 | ||
| 100CYZ-A-20 | 80 | 20 | 2 | 4.5 | ||
| 100CYZ-A-25 | 100 | 25 | 2 | 4.5 | ||
| 100CYZ-A-32 | 100 | 32 | 2 | 4.5 | ||
| 100CYZ-A-40 | 100 | 40 | 2 | 4 | ||
| 100CYZ-A-50 | 100 | 50 | 2 | 4 | ||
| 100CYZ-A-65 | 100 | 65 | 2 | 4 | ||
| 100CYZ-A-75 | 80 | 75 | 2 | 4 | ||
| 150CYZ-A-15 | 180 | 20 | 2.5 | 1450 | 3 | |
| 150CYZ-A-30 | 180 | 30 | 2.5 | 3.5 | ||
| 150CYZ-A-45 | 160 | 45 | 2 | 2900 | 4.5 | |
| 150CYZ-A-55 | 160 | 55 | 2 | 4.5 | ||
| 150CYZ-A-65 | 160 | 65 | 2 | 4.5 | ||
| 150CYZ-A-80 | 160 | 80 | 2 | 4.5 | ||
| 200CYZ-A-32 | 400 | 32 | 2 | 1450 | 4 | |
| 200CYZ-A-63 | 280 | 63 | 2 | 4 | ||
| 250CYZ-A-50 | 400 | 50 | 2 | 4 | ||
| 300CYZ-A-50 | 500 | 50 | 2 | 4 | ||
