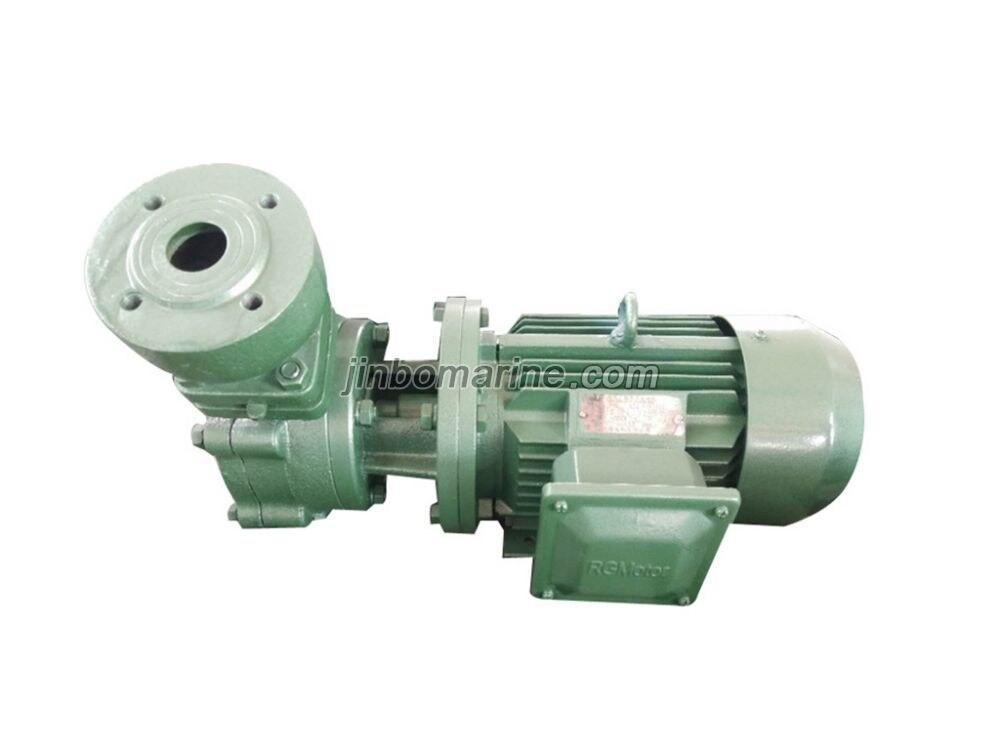

1WZ-3 marine direct connected self-priming vortex pump
- Category:Vortex Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description:
The pump is a single-stage single suction cantilever vortex pump, which is suitable for ships to transport seawater and fresh water without solid particles and impurities.

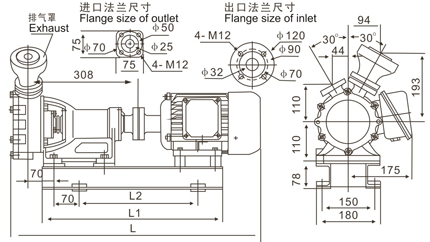

Installation size of 1WZ-3 and 1WZ-3Z:

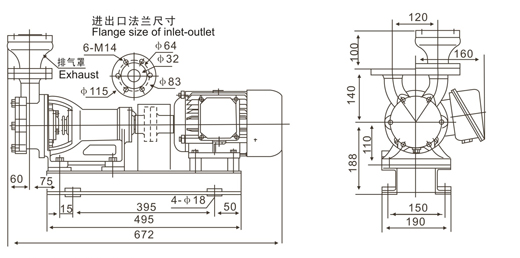

Installation size of 1WZ-0.9 and 1WZ-0.9Z:
Technical data:
| Type | Capacity | Head | Speed | NPSHr | Motor Power |
| m3/h | m | r/min | m | kw | |
| 1WZ-0.9 | 1 | 37 | 1400 | 3.5 | 1.5 |
| 1.8 | 25.5 | ||||
| 2.5 | 15 | ||||
| 1WZ-0.9(Z) | 1 | 37 | 1400 | 3.5 | 1.5 |
| 1.8 | 25.5 | ||||
| 2.5 | 15 | ||||
| 1WZ-3 | 3 | 10 | 1450 | 3.5 | 0.75 |
| 1WZ-3(Z) | 3 | 10 | 1450 | 3.5 | 0.75 |
