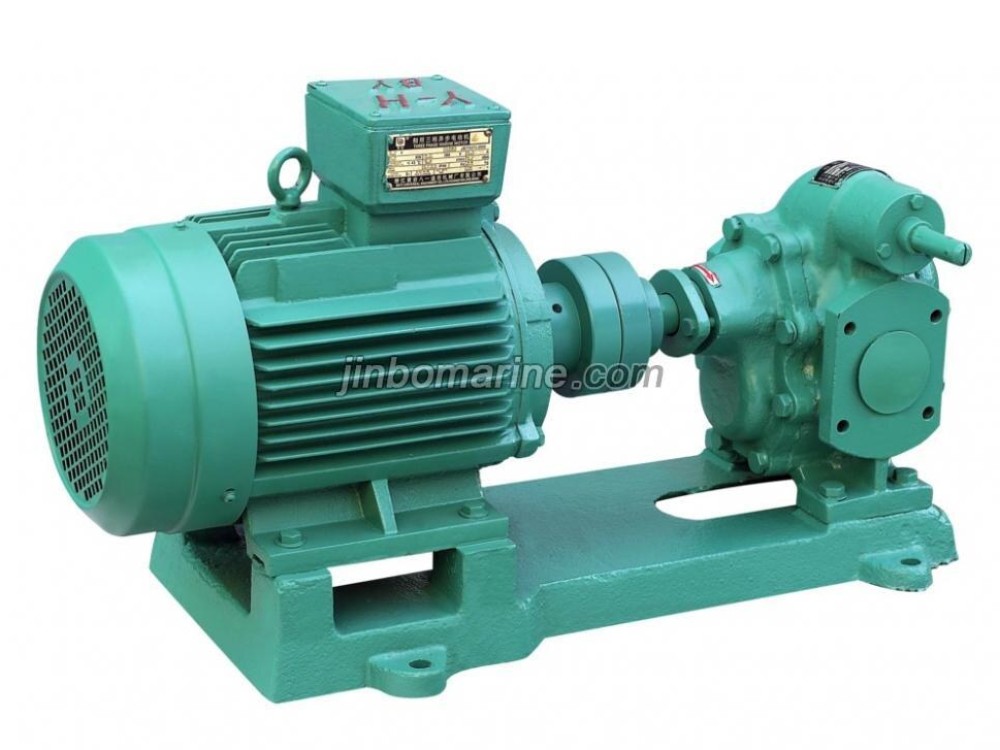

2CY Series Gear Oil Stripping Pump Marine
- Category:Gear Pump
- Material:cast iron pump case, Stainless steel pump shaft
- Standards:standard
- Certificate:CCS
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]2cy Gear Oil Pump.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details

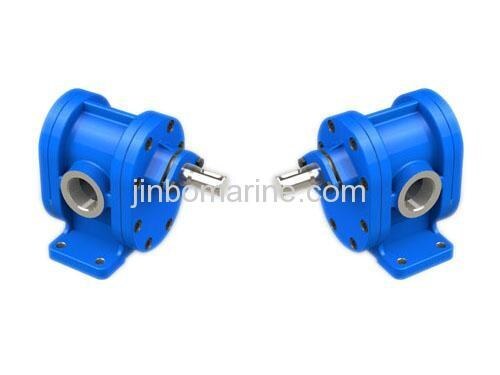

China 2CY Series Gear Oil Stripping Pump Marine:
2 CY Gear Pump can be used as a transport, the booster pump in the oil system.
2 CY Gear Pump can be used as a transport, pressure, injection fuel pump in the fuel oil system
2 CY Gear Pump can be used to provide hydraulic power of the hydraulic pump in the hydraulic system
2 CY Gear Pump can be used as lubricating oil pump in all industrial areas
Main Specification
| Type | Capacity | Speed | Pressure | NPSH | Effciency | Motor | |
| m3/h | r/min | Mpa | m | % | kw | Model | |
| CY-1.08/2.5 | 1.08 | 1420 | 2.5 | 9.5 | 58 | 2.2 | Y100L1-4 |
| 2CY-2.1/2.5 | 2.1 | 1420 | 2.5 | 9.5 | 58 | 3 | Y100L2-4 |
| 2CY-3/2.5 | 3 | 1440 | 2.5 | 9.5 | 59 | 4 | Y112M-4 |
| 2CY-4.2/2.5 | 4.2 | 1440 | 2.5 | 9.5 | 59 | 5.5 | Y132S-4 |
| 2CY-7.5/2.5 | 7.5 | 1440 | 2.5 | 9.5 | 63 | 7.5 | Y132M-4 |
| 2CY-12/2.5 | 12 | 1460 | 2.5 | 9.5 | 63 | 15 | Y160L-4 |
