Ansul-R102-10 Marine Deep Frying Pan With Fire Extinguishing System
- Category:Marine Kitchen Galley
- Material:SS
- Delivery Time:15 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

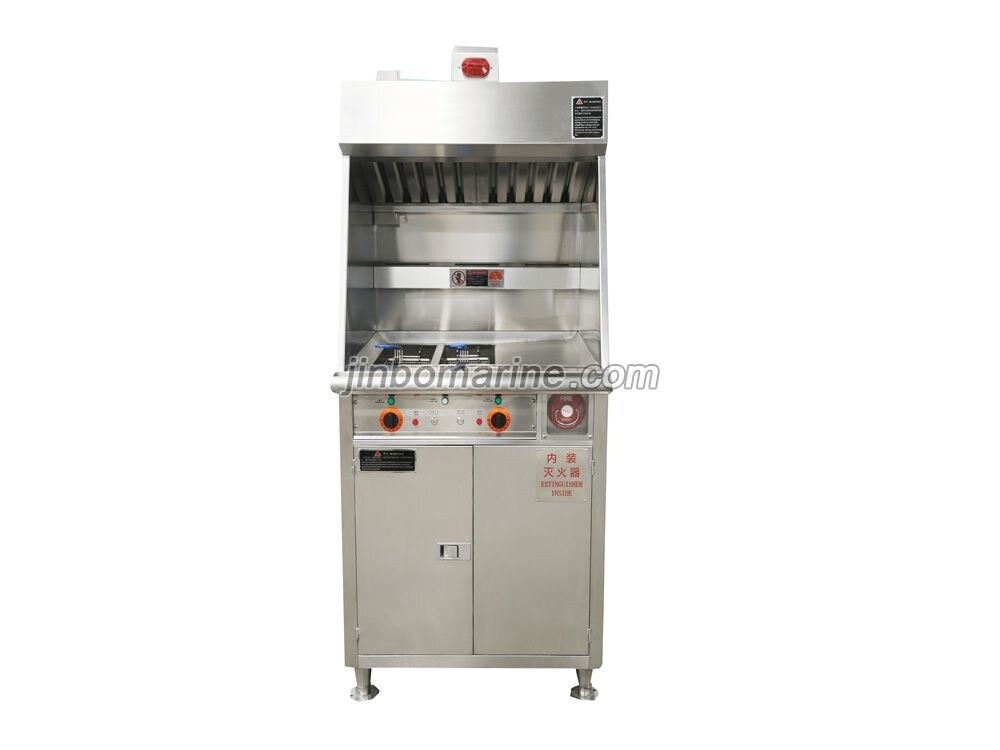

Ansul-R102-10 Marine Deep Frying Pan With Fire Extinguishing System
1. All stainless steel structure
2 Automatic detection, fire extinguishing, alarm and automatic power-off device
3. Manual emergency start fire extinguishing device
4. Control the normally closed open contact of the external alarm or control the power output
5. Working thermostat, protection temperature limiter failure alarm function
6. Oil pan drain valve with oil storage barrel
7 Anti-wave handrails
8. Power distribution stainless steel adjustable feet for easy installation on board

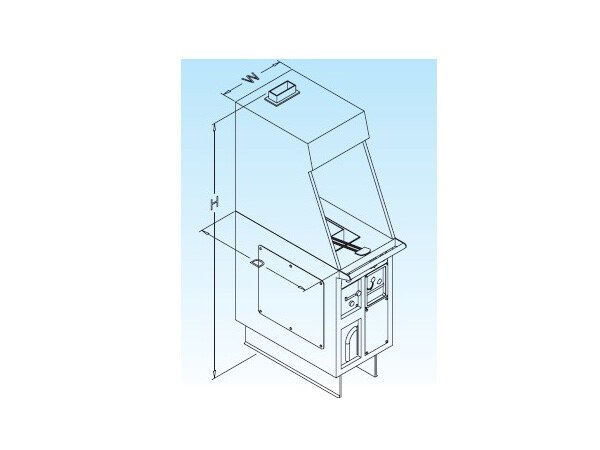

Ansul-R102-10 Marine Deep Frying Pan With Fire Extinguishing System Drawing
Ansul-R102-10 Marine Deep Frying Pan With Fire Extinguishing System Parameters
Model | MFEX22-10 | MFEX22-D20 | Ansul-R102-10 | Ansul-R102-20 |
Volume(L) | 10 | 20 | 10 | 20 |
Voltage | 380/415V-3PH-50Hz 440/480v 3ph-60Hz | |||
Power(kw) | 7.1/9 | 14.2/9 | 7 | 14 |
Size(mm) | 500x800x1750 | 650x800x1750 | 480x820x1800 | 780x820x1800 |
Weight(kg) | 105 | 130 | 124 | 158 |
