API WCB Gate Valve
- Category:Gate Valve
- Material:WCB
- Standards:API 600 & API 6D
- Certificate:Mill Certificate
- Supply Ability:Plywood Case
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

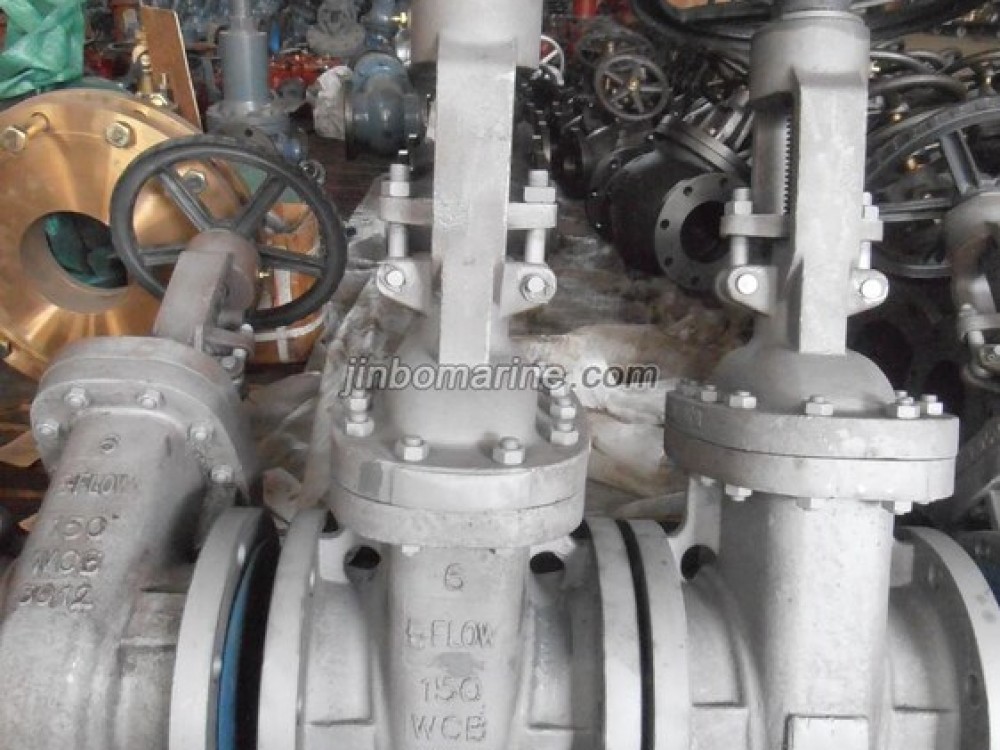

China API WCB Gate Valve:
WCB API Gate Valve is used on the pipeline with the temperature -29～425℃, the medium is water, steam and oil. The operation way can be manual, worm gear and electric.
Standard:
|
Design Standard |
Face to Face |
Flange Dimension |
Butt Welding Dimension |
Pressure Temperature Standard |
Inspection and Test Standard |
|
API 600 |
ANSI B16.0 |
ANSI B16.5 |
ANSI B16.25 |
ANSI B16.34 |
API 598 |
|
API 6D |
API 6D |
ANSI B16.5 |
ANSI B16.25 |
ANSI B16.34 |
API 6D |
Test Pressure:
| Nominal Pressure (Lb) | Shell Strength Test | Water Seal Test | Air Seal Test | |||
| MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | |
| 150 | 3 | 430 | 2.2 | 315 | 0.4-0.7 | 60-100 |
| 300 | 7.7 | 1110 | 5.7 | 815 | ||
| 600 | 15.3 | 2220 | 11.3 | 630 | ||
| 900 | 23 | 3330 | 17 | 2445 | ||
Main Parts & Material:
1.Body, Bonnet---ASTM A216 WCB
2.Stem---ASTM A182 F6
3.Disc---ASTM A216 WCB+ASTM A182 F6
4.Packing---Stainless Steel+flexible graphite
5. Bolt---A193 B7
6. Nut---A194 2H
7.Handwheel---ASTM A47

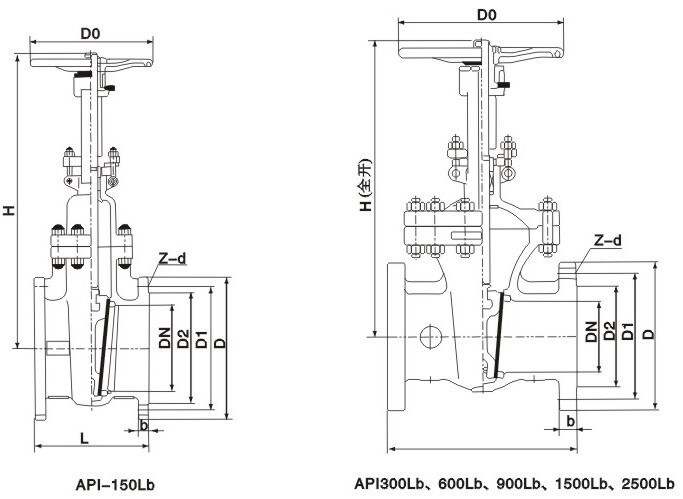

Main Size List for 150Lb:
| DN | 150Lb（RF） Main Size（mm） | Weight (kg) | ||||||||
| mm | in | L | D | D1 | D2 | b | Z-φd | H | D0 | |
| 15 | 1/2 | 108 | 89 | 60.5 | 35 | 11.2 | 4-16 | 169 | 100 | 5 |
| 20 | 3/4 | 117 | 98 | 69.9 | 43 | 12.7 | 4-16 | 192 | 100 | 6.1 |
| 25 | 1 | 127 | 108 | 79.2 | 51 | 14.2 | 4-16 | 230 | 120 | 9 |
| 32 | 1-1/4 | 140 | 117 | 89 | 63 | 16 | 4-16 | 246 | 120 | 12 |
| 40 | 1-1/2 | 165 | 127 | 98.6 | 73 | 17.5 | 4-16 | 283 | 150 | 17 |
| 50 | 2 | 178 | 152 | 120.7 | 92 | 19 | 4-19 | 323 | 150 | 23 |
| 65 | 2-1/2 | 190.5 | 178 | 139.7 | 105 | 22.4 | 4-19 | 347 | 180 | 45 |
| 80 | 3 | 230 | 190 | 152.4 | 127 | 24 | 4-19 | 383 | 200 | 50 |
| 100 | 4 | 229 | 229 | 190.5 | 157 | 24 | 8-19 | 457 | 200 | 63 |
| 125 | 5 | 254 | 254 | 216 | 186 | 24 | 8-22.5 | 632 | 250 | 89 |
| 150 | 6 | 267 | 279 | 241.5 | 216 | 25.4 | 8-22.5 | 635 | 250 | 108 |
| 200 | 8 | 292 | 343 | 298.5 | 270 | 28.4 | 8-22.5 | 762 | 280 | 171 |
| 250 | 10 | 330 | 406 | 362 | 324 | 30.2 | 12-25.4 | 892 | 300 | 263 |
| 300 | 12 | 356 | 483 | 431.8 | 381 | 32 | 12-25.4 | 1080 | 350 | 346 |
| 350 | 14 | 381 | 533 | 476.3 | 413 | 35 | 12-29 | 1295 | 350 | 488 |
| 400 | 16 | 406 | 597 | 539.8 | 470 | 36.6 | 16-29 | 1435 | 400 | 621 |
| 450 | 18 | 432 | 635 | 577.9 | 533 | 39.6 | 16-32 | 1626 | 400 | 814 |
| 500 | 20 | 457 | 398 | 635 | 584 | 43 | 20-32 | 1829 | 450 | 992 |
| 600 | 24 | 508 | 813 | 749.3 | 692 | 48.8 | 20-35 | 2175 | 500 | 1492 |
| 650 | 26 | 559 | 786 | 744.5 | 711 | 51.3 | 36-22.5 | 2235 | 550 | 1801 |
| 700 | 28 | 610 | 837 | 795.3 | 762 | 44.5 | 40-22.5 | 2310 | 600 | 1933 |
| 750 | 30 | 610 | 887 | 846 | 813 | 44.5 | 44-22.5 | 2695 | 600 | 2272 |
| 800 | 32 | 660 | 941 | 900 | 864 | 46 | 48-22.5 | 3708 | -- | -- |
| 900 | 36 | 711 | 1057 | 1009.7 | 927 | 52.3 | 40-25.4 | 3924 | -- | -- |
| 1000 | 40 | 812 | 1175 | 1120.6 | 1080 | 55.6 | 44-25.4 | 4318 | -- | -- |
*If you need the size for 300Lb, 600Lb, 900Lb, 1500Lb, 2500Lb, pls contact us.
