CFP-BGM Wall Mounted Open Type Fan Coil

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Description:

CFP-BGM,WAB,ZH fan coil has new design, beautiful appearance, simple installation, convenient operation, low noise, small volume and save energy etc. which is suitable for medium and small sized navy, such as suppress smuggling boat, patrol boat and luxurious yacht etc.

Technical Data:

Type CFP-7.0BGM CFP-7.1BGM CFP-7.2BGM CFP-7.3BGM CFP-7.4BGM
Cooling capacity Kw 2 3 3.5 4.7 7
Btu/hr 7000 10000 12000 16000 24000
Heating capacity Kw 2.2 3.3 3.85 5.17 7.7
Btu/hr 7500 11000 13000 17600 26000
Air flow high m3/h 350 500 630 800 1000
mid m3/h 300 400 520 720 880
low m3/h 220 280 400 605 700
Water flow m3/h 450 510 630 790 880
Diameter of Inlet/outlet RC1/2 thread or DN 15 hose
Power supply 220V 50Hz 1Φ
Total Power W 30 40 40 70 135
Current A 0.35 0.4 0.4 0.9 1.1

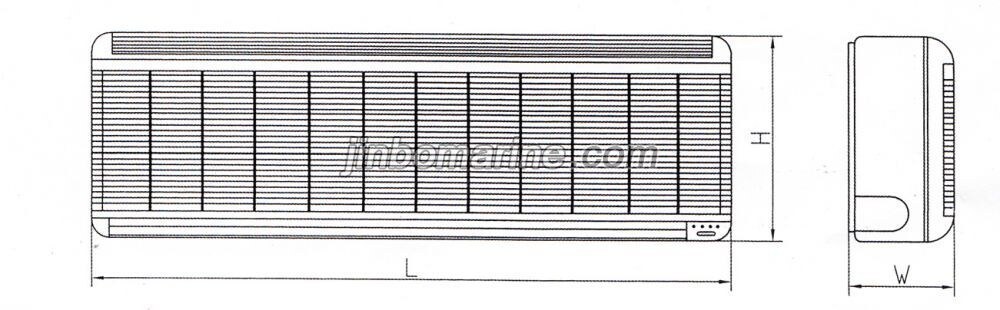

Dimension L mm 890 890 1030 1080 1080
W mm 180 180 185 215 215
H mm 290 290 290 330 330
Weight kg 15 17 19 21 28
