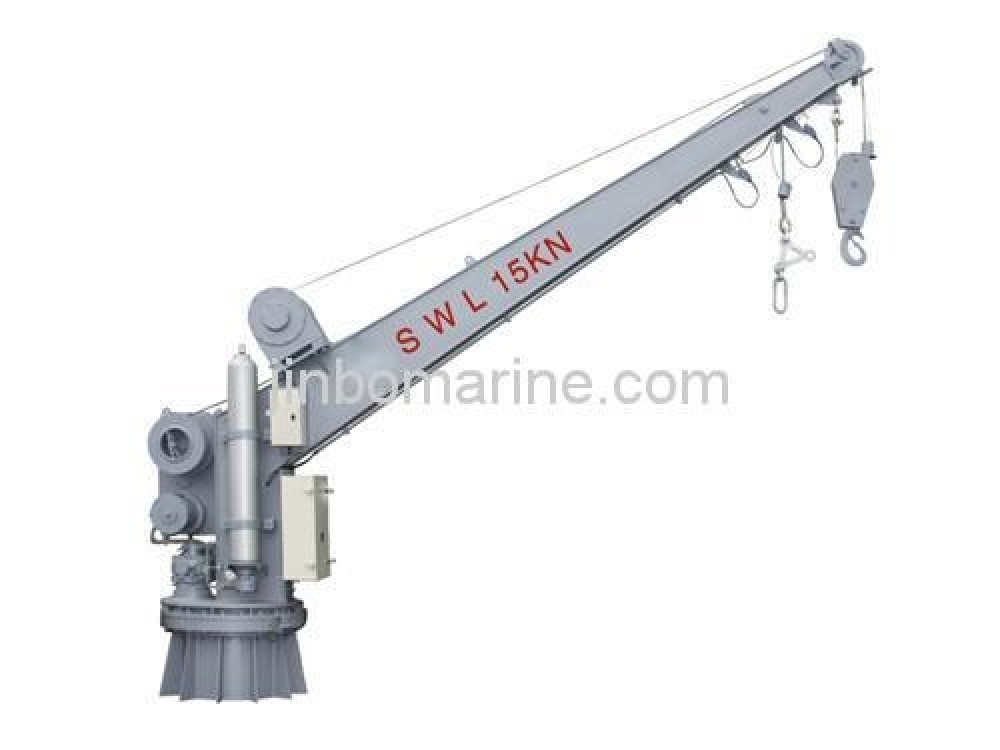

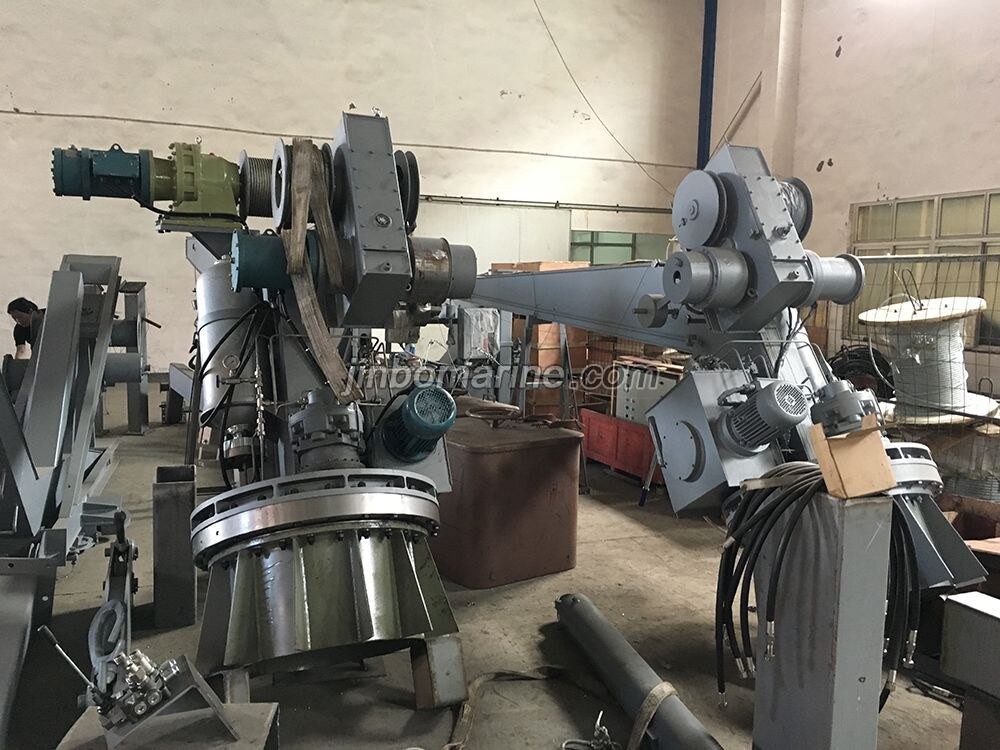

Single Arm Rotary Boat Davit With Crane
- Category:Lifeboat Davit
- Standards:SOLAS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
This device slew by the hydraulic, and launch the boat to the water surface by the boat own gravity, slew the boat or raft outboard under the condition of loss of electricity, while Launching, the passengers could pull the remote control cable in the boat to launch or stop rescue boat or raft. As well, the crews can operate it on the deck. This device meets the SOLAS 1974, the international life saving equipment rules LSA and IMO, MSC81 (70) and other regulatory requirements.
The single arm rescue boat / raft lowering device and crane main technical specifications
Technical Parameter:
| Model | Max. Safety working load | Hoisting load | Hoisting speed | Landing speed | Rope capacity of the reel | Rotation Radius |
| SARC21 | 21KN | 14KN | ≥18m/min | 40-60m/min | 30m | 3600-4500mm |
| SA23-1 | 23KN | 14KN | 3600-5400mm | |||
| SA23-2 | 23KN | 18KN | 3600-5000mm |
Crane main Technical data:
| Max. Hoisting load | Rope capacity of the reel | Max. Rotation Angle | Landing speed | Rotation Radius |
| 30KN | 30m | ≤330° | 11-15 m/min | 4100-5000mm |
| 15KN | 4100-7300mm | |||
| 30KN | 4100-5500mm |
