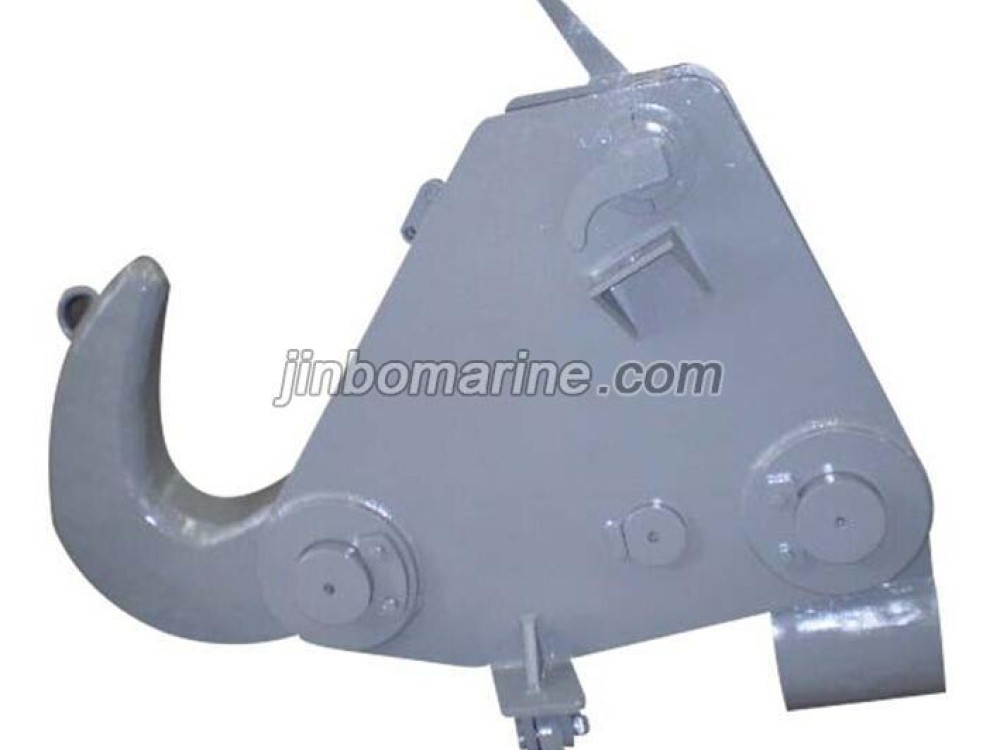

Multifunctional Pier Marine Towing Hook
- Category:Spring Towing Hook
- Certificate:Certificate: CCS, BV, etc​
- Standards:International standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Multifunctional Pier Marine Towing Hook.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Multifunctional Pier Marine Towing Hook:
Brief description:
The towing hook enable the ships can be towed in safety under emergency situations.
It is easy to handle,and can be release quickly.

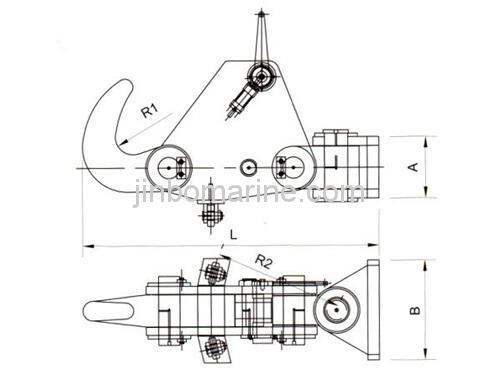

| TYPE | SWL (t) | A (mm) | B (mm) | L (mm) | R1 (mm) | R2 (mm) |
| ETH-30 | 30 | 210 | 340 | 1050 | 65 | 430 |
| ETH-40 | 40 | 220 | 345 | 1100 | 65 | 450 |
| ETH-50 | 50 | 276 | 448 | 1332 | 80 | 577 |
| ETH-60 | 60 | 295 | 475 | 1415 | 85 | 613 |
| ETH-80 | 80 | 350 | 560 | 1680 | 100 | 721 |
| ETH-100 | 100 | 450 | 630 | 2100 | 125 | 921 |
