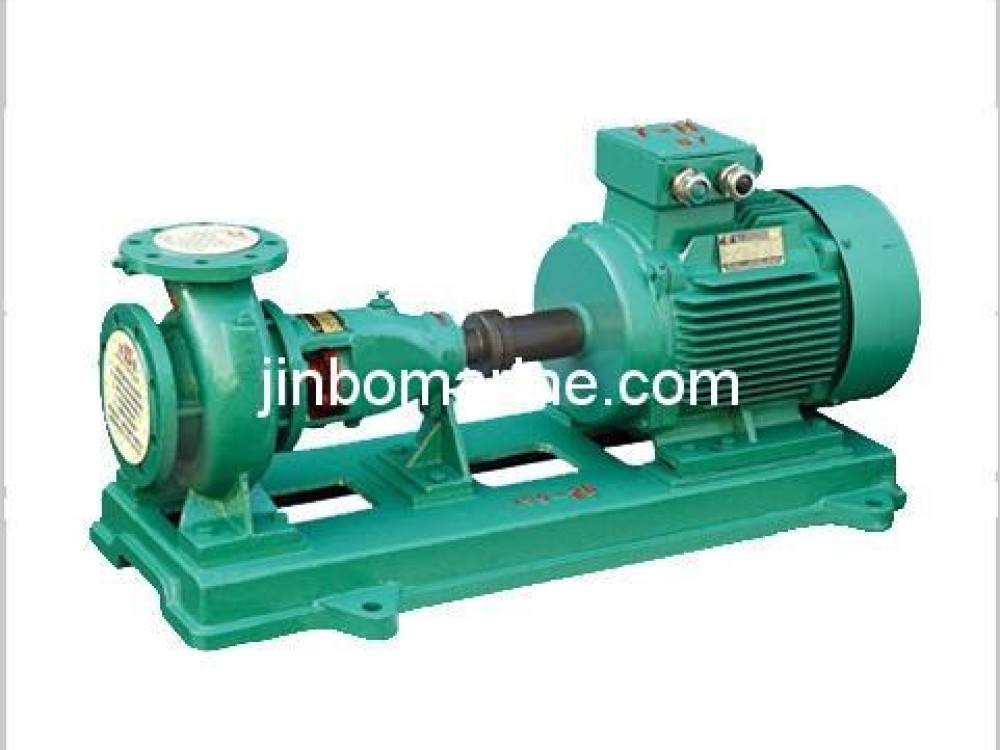

CIS Series Marine Horizontal Centrifugal Pump Ballast And Bilge Pumps
- Category:Centrifugal Pump
- Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
- Standards:standard
- Certificate:CCS，Rina，ABS, BV, GL,
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
CIS series Marine horizontal centrifugal pumps
- High Quality,suitable for sea water transfer
- Fast Delivery
- Easy maintenance
- Competitive price
General Description
CIS type pump is single-stage,single-suction(axial inhalation) centrifugal pump, which is used onboard as fresh water and sea water cooling pump, and sanitary pump, domestic pump and daily water pump with motor-driven. Transmission medium temperature should be lower than 75c.
Model Explanation
- CIS50-32-125
- CIS-Marine centrifugal pump
- 50-Inlet diameter 50mm
- 32-Outlet diameter 65mm
- 125-Impeller diameter 125mm

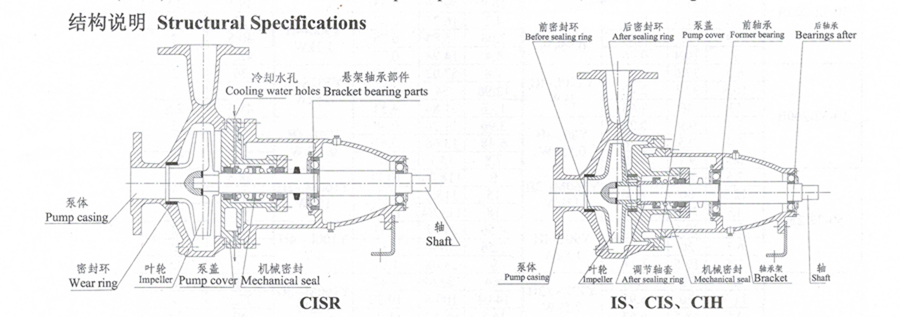

Structural Specifications
Performance
50HZ
| Model | Flow of | Head | Power | RPM |
| rate (Q) | H | P | n | |
| m3/h | m | Kw | r/min | |
| CIS50-32-125 | 12.5 | 20 | 2.2 | 2900 |
| CIS50-32-160 | 32 | 3 | ||
| CIS50-32-200 | 50 | 5.5 | ||
| CIS65-50-125 | 25 | 20 | 3 | |
| CIS65-50-160 | 32 | 5.5 | ||
| CIS65-50-200 | 50 | 7.5 | ||
| CIS65-50-250 | 80 | 15 | ||
| CIS80-65-125 | 50 | 20 | 5.5 | |
| CIS80-65-160 | 32 | 7.5 | ||
| CIS80-65-200 | 50 | 15 | ||
| CIS80-65-250 | 80 | 22 | ||
| CIS100-80-125 | 100 | 20 | 11 | |
| CIS100-80-160 | 32 | 15 | ||
| CIS100-80-200 | 50 | 22 | ||
| CIS100-80-250 | 80 | 37 | ||
| CIS100-80-315 | 125 | 75 | ||
| CIS125-100-200 | 200 | 50 | 45 | |
| CIS125-100-250 | 80 | 75 | ||
| CIS125-100-315 | 125 | 110 | ||
| CIS125-100-400 | 100 | 50 | 30 | 1450 |
| CIS150-125-250 | 200 | 20 | 18.5 | |
| CIS150-125-315 | 32 | 30 | ||
| CIS150-125-400 | 50 | 45 | ||
| CIS200-150-250 | 400 | 20 | 37 | |
| CIS200-150-315 | 32 | 55 | ||
| CIS200-150-400 | 50 | 90 |
60HZ
| Model | Flow of | Head | Power | RPM |
| rate (Q) | H | P | n | |
| m3/h | m | Kw | r/min | |
| CIS50-32-125 | 15 | 29 | 3 | 3500 |
| CIS50-32-160 | 46 | 5.5 | ||
| CIS50-32-200 | 72 | 7.5 | ||
| CIS65-50-125 | 30 | 29 | 5.5 | |
| CIS65-50-160 | 46 | 7.5 | ||
| CIS65-50-200 | 72 | 15 | ||
| CIS65-50-250 | 116 | 22 | ||
| CIS80-65-125 | 60 | 29 | 7.5 | |
| CIS80-65-160 | 46 | 15 | ||
| CIS80-65-200 | 72 | 22 | ||
| CIS80-65-250 | 116 | 37 | ||
| CIS100-80-125 | 120 | 29 | 15 | |
| CIS100-80-160 | 46 | 30 | ||
| CIS100-80-200 | 72 | 37 | ||
| CIS100-80-250 | 116 | 15 | ||
| CIS100-80-315 | 182 |
|
||
| CIS125-100-200 | 240 | 72 | 75 | |
| CIS125-100-250 | 116 |
|
||
| CIS125-100-315 | 182 |
|
||
| CIS125-100-400 | 120 | 72 | 45 | 1750 |
| CIS150-125-250 | 240 | 29 | 30 | |
| CIS150-125-315 | 46 | 55 | ||
| CIS150-125-400 | 72 |
|
||
| CIS200-150-250 | 480 | 29 | 55 | |
| CIS200-150-315 | 46 |
|
||
| CIS200-150-400 | 72 |
|
