CP100-0.3T marine jet pump cast iron or stainless steel material

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

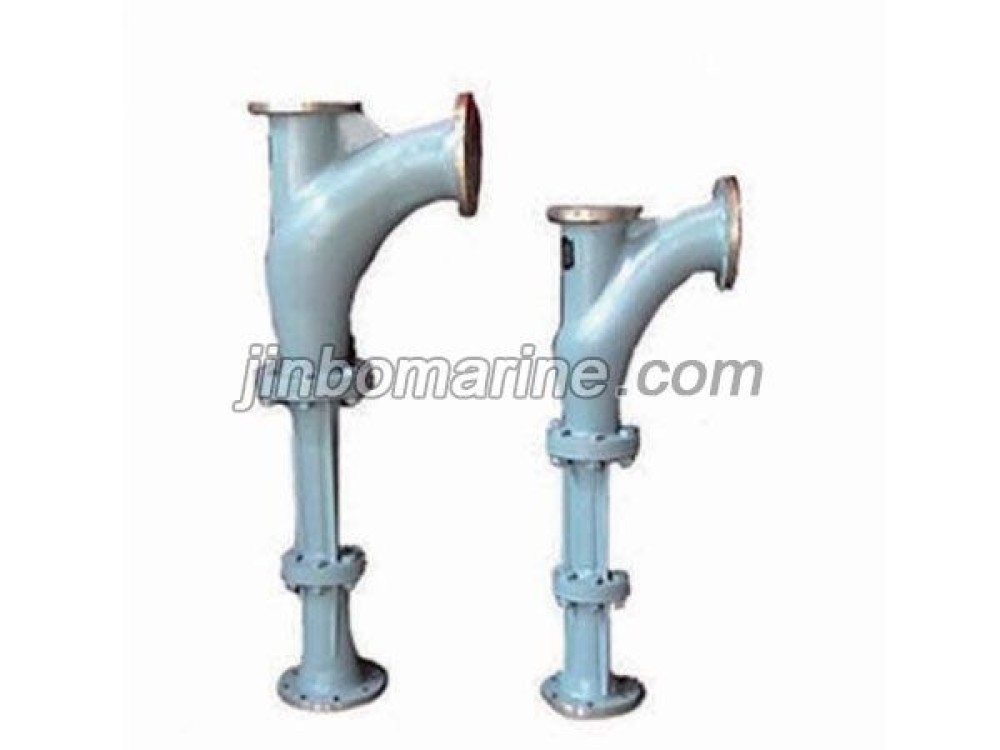

China CP100-0.3T marine jet pump cast iron or stainless steel material:

The axis of suction flange of CPT jet pump is perpendicular to the axis of pump body.No moving parts, long service life.It is mainly used in ship drainage system, environmental protection, chemical industry, water conservancy, building materials industry, etc.

Main Technical Data
Model Flow rate
Q（m³/h） 		Suction lift
m 		Outlet pressure
MPa 		Motor power
(KW)
CP5-0.3T 0-15 3.0-9.0 0.05-0.3 0.4-1.4
CP10-0.3T 0-40 3.0-9.0 0.05-0.3 0.4-1.4
CP15-0.3T 0-71 3.0-9.0 0.05-0.3 0.4-1.4
CP20-0.3T 0-100 3.0-9.0 0.05-0.3 0.4-1.4
CP30-0.3T 0-125 3.0-9.0 0.05-0.3 0.4-1.4
CP40-0.3T 0-180 3.0-9.0 0.05-0.3 0.4-1.4
CP50-0.3T 0-15 3.0-9.0 0.05-0.3 0.4-1.4
CP100-0.3T 0-40 3.0-9.0 0.05-0.3 0.4-1.4
CP5-0.7T 0-71 3.0-9.0 0.05-0.3 0.4-1.4
CP10-0.7T 0-100 3.0-9.0 0.05-0.3 0.4-1.4
CP20-0.7T 0-125 3.0-9.0 0.05-0.3 0.4-1.4
CP30-0.7T 0-180 3.0-9.0 0.05-0.3 0.4-1.4
CP30/20-0.7T 0-15 3.0-9.0 0.05-0.3 0.4-1.4
CP50-0.7T 0-40 3.0-9.0 0.05-0.3 0.4-1.4
CP60-0.7T 0-71 3.0-9.0 0.05-0.3 0.4-1.4
CP80-0.7T 0-100 3.0-9.0 0.05-0.3 0.4-1.4
CP100-0.7T 0-125 3.0-9.0 0.05-0.3 0.4-1.4
CP150-0.7T 0-180 3.0-9.0 0.05-0.3 0.4-1.4
CP200-0.7T 0-15 3.0-9.0 0.05-0.3 0.4-1.4
CP100-0.7G 0-40 3.0-9.0 0.05-0.3 0.4-1.4
CP15-0.5T 0-71 3.0-9.0 0.05-0.3 0.4-1.4
CP10-1.0T 0-100 3.0-9.0 0.05-0.3 0.4-1.4
CP50-1.0T 0-15 3.0-9.0 0.05-0.3 0.4-1.4
CP100-0.2T 0-40 3.0-9.0 0.05-0.3 0.4-1.4
