China CPJ150-200-250 Marine jet pump bilge ejector:

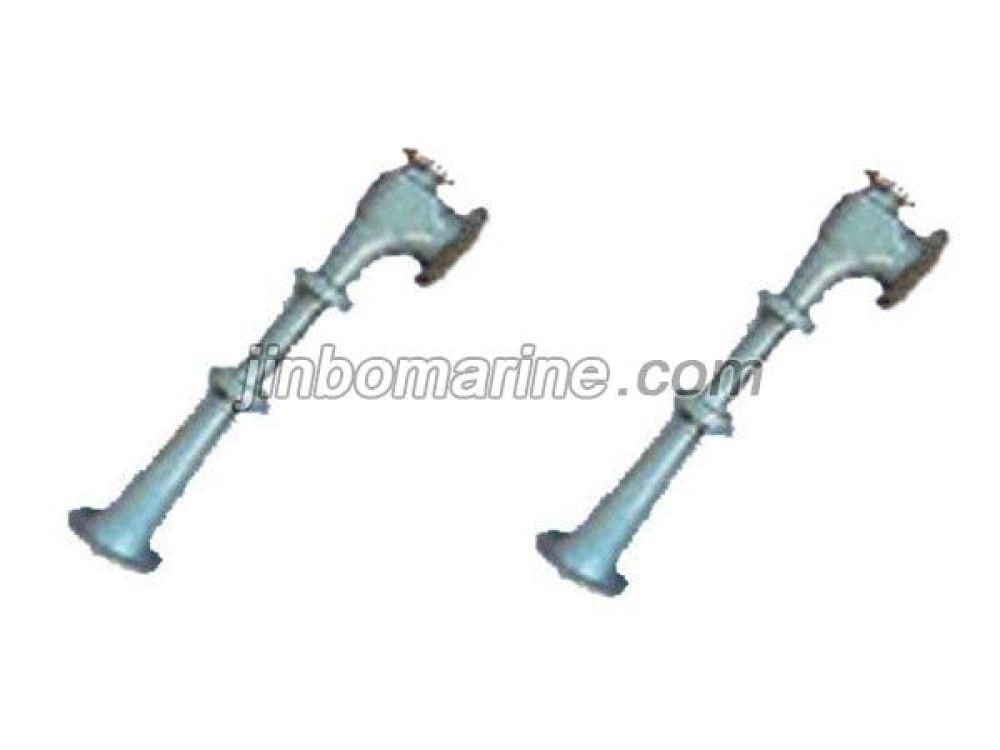

The suction inlet, discharge outlet and nozzle of CPJ jet pump are all on the same axis with high efficiency.The working water pipe is bent J type, and its flange is perpendicular to the suction inlet and discharge outlet flange, which is easy to install.No moving parts, long service life.With self - priming function, can work steadily and continuously.It is mainly used in ship drainage and drainage system, also can be used in environmental protection, chemical industry, water conservancy, building materials and other industries, for pumping and discharging sea fresh water, mixed liquid, river dredging, powder transport and so on.
| Main Technical Data | ||||
| Model |
Flow rate Q（m³/h） |
Suction lift m |
Outlet pressure MPa |
Motor power (KW) |
| CPJ40-50-65 | 0-15 | 3.0-9.0 | 0.05-0.3 | 0.4-1.4 |
| CPJ50-80-80 | 0-40 | 3.0-9.0 | 0.05-0.3 | 0.4-1.4 |
| CPJ80-100-100 | 0-71 | 3.0-9.0 | 0.05-0.3 | 0.4-1.4 |
| CPJ100-125-125 | 0-100 | 3.0-9.0 | 0.05-0.3 | 0.4-1.4 |
| CPJ100-150-150 | 0-125 | 3.0-9.0 | 0.05-0.3 | 0.4-1.4 |
| CPJ125-150-200 | 0-180 | 3.0-9.0 | 0.05-0.3 | 0.4-1.4 |
| CPJ150-200-200 | 0-320 | 3.0-9.0 | 0.05-0.3 | 0.4-1.4 |
| CPJ150-200-250 | 0-420 | 3.0-9.0 | 0.05-0.3 | 0.4-1.4 |
| CPJ200-200-250 | 0-250 | 1.0-7.0 | 0.05-0.3 | 0.1-0.6 |
| CPJ250-250-300 | 0-400 | 1.0-7.0 | 0.05-0.3 | 0.1-0.6 |
| CPJ300-300-350 | 0-600 | 1.0-7.0 | 0.05-0.3 | 0.1-0.6 |
