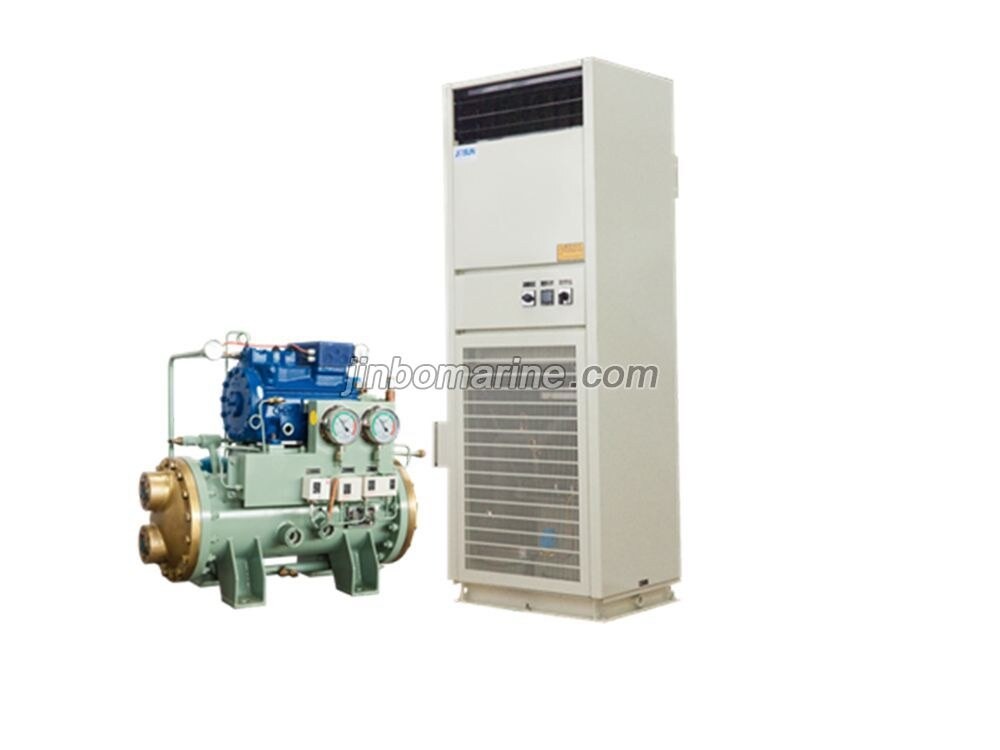

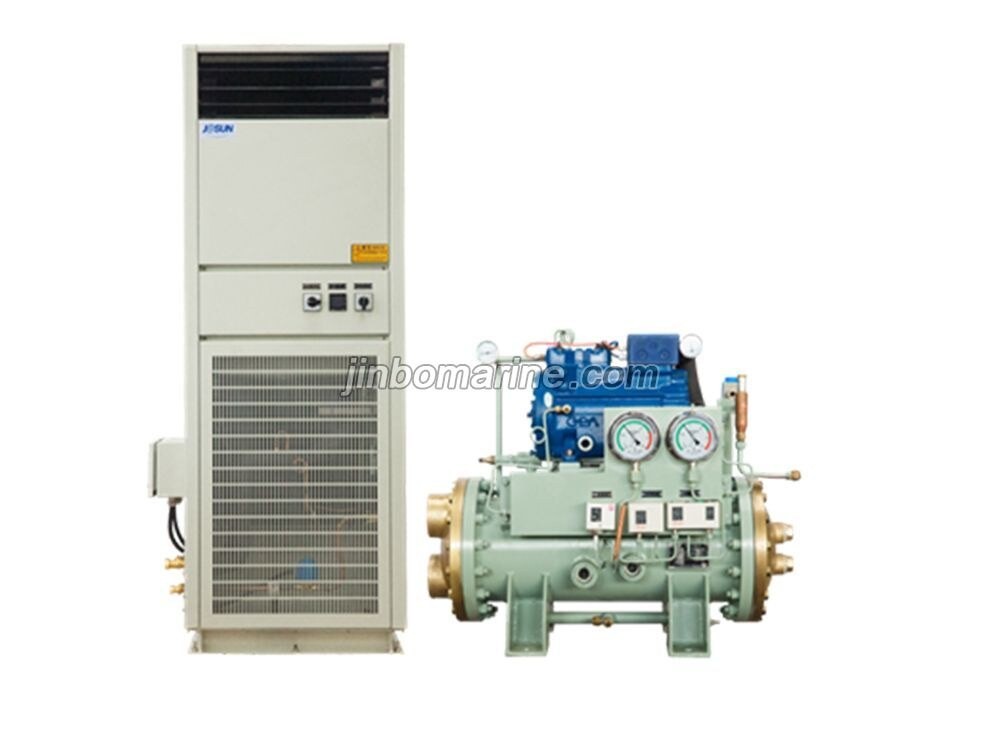

CSFK Marine Water Cooled Spilt Air Conditioner

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Technical Data:

Model CSFK-3 CSFK-4 CSFK-5 CSFK-6 CSFK-7 CSFK-8 CSFK-10
Cooling capacity kw 3 4 5 6 7 8 10
Heating capacity kw 1.5 2 2.5 3 3.5 4 5
Cooling medium R22(R134a.R404A,R407C)
Heating type electric heating tube with stainless steel fin or light tube
Power supply Main circuit AC380V 3P 50HZ/AC440V 3P 60HZ
control circuit AC220V 1P 50HZ/AC220V 1P 60HZ
Protection devices high pressure,low pressure, super heat, lack phase, overload
Compressor type hermrtic
motor power kw 1.4 1.8 1.8 1.8 2 2.4 2.9
Condenser type horzontal shell&tube and can condense
and receive liquid efficiendy
water inlet temp ℃ ≤32
water flow m3/h 1.5 1.5 2.5 2.5 2.6 3 3.7
water press. Drop kpa ≤30
Dia. of inlet and outlet water mm DN25 DN25 DN25 DN25 DN25 DN25 DN25
indoor uint fan type Low noise centrifugal fan
air flow m3/h 600 800 1000 1200 1400 1600 2000
motor power w 40 40 40 40 90 90 90
Evaporator type copper tube copper (AL) fin
Dia. Of indoor/outdoor
unit liquid pipe 		mm Φ10x1 Φ10x1 Φ10x1 Φ10x1 Φ12x1 Φ12x1 Φ12x1
Dia. Of indoor/outdoor
unit gas pipe 		mm Φ19x1.5 Φ19x1.5 Φ19x1.5 Φ19x1.5 Φ22x1.5 Φ22x1.5 Φ22x1.5
Connection pipe length
of indoor and outdoor unit 		mm ≤12000
Dimension indoor unit mm 466x440x1750
outdoor unit mm 650x450x700 750x500x1000 850x500x1000
Indoor unit weight kg 90 95 105 108 112 116 120
Outdoor unit weight kg 165 165 190 195 210 220 240
Indoor unit noise dB(A) ≤60 ≤60 ≤60 ≤60 ≤60 ≤60 ≤60
Outdoor unit noise dB(A) ≤80 ≤80 ≤80 ≤80 ≤80 ≤80 ≤80

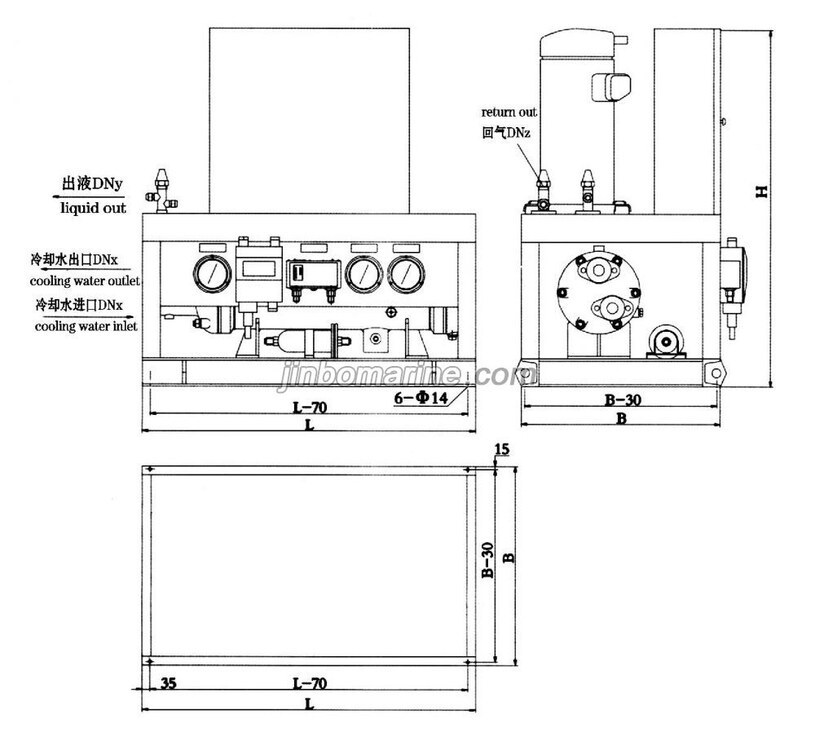

Dimension:

Model CSFK-3(I) CSFK-4(I) CSFK-5(I) CSFK-6(I) CSFK-7(I) CSFK-8(I) CSFK-10(I) CSFK-12(I) CSFK-15(I) CSFK-20(I)
L 660 660 660 780 780 780 850/950 960 1200 1200
B 460 460 460 500 500 500 510 510 510 510
H 710 710 710 1050 1020 1020 1000/1250 1300 1300 1300
DNx DN15 DN15 DN15 DN15 DN25 DN25 DN25 DN25 DN32 DN32
DNy DN8 DN8 DN8 DN8 DN10 DN10 DN10/DN18 DN8 DN10 DN10
DNz DN16 DN16 DN16 DN16 DN19 DN19 DN19/DN16 DN16 DN19 DN19

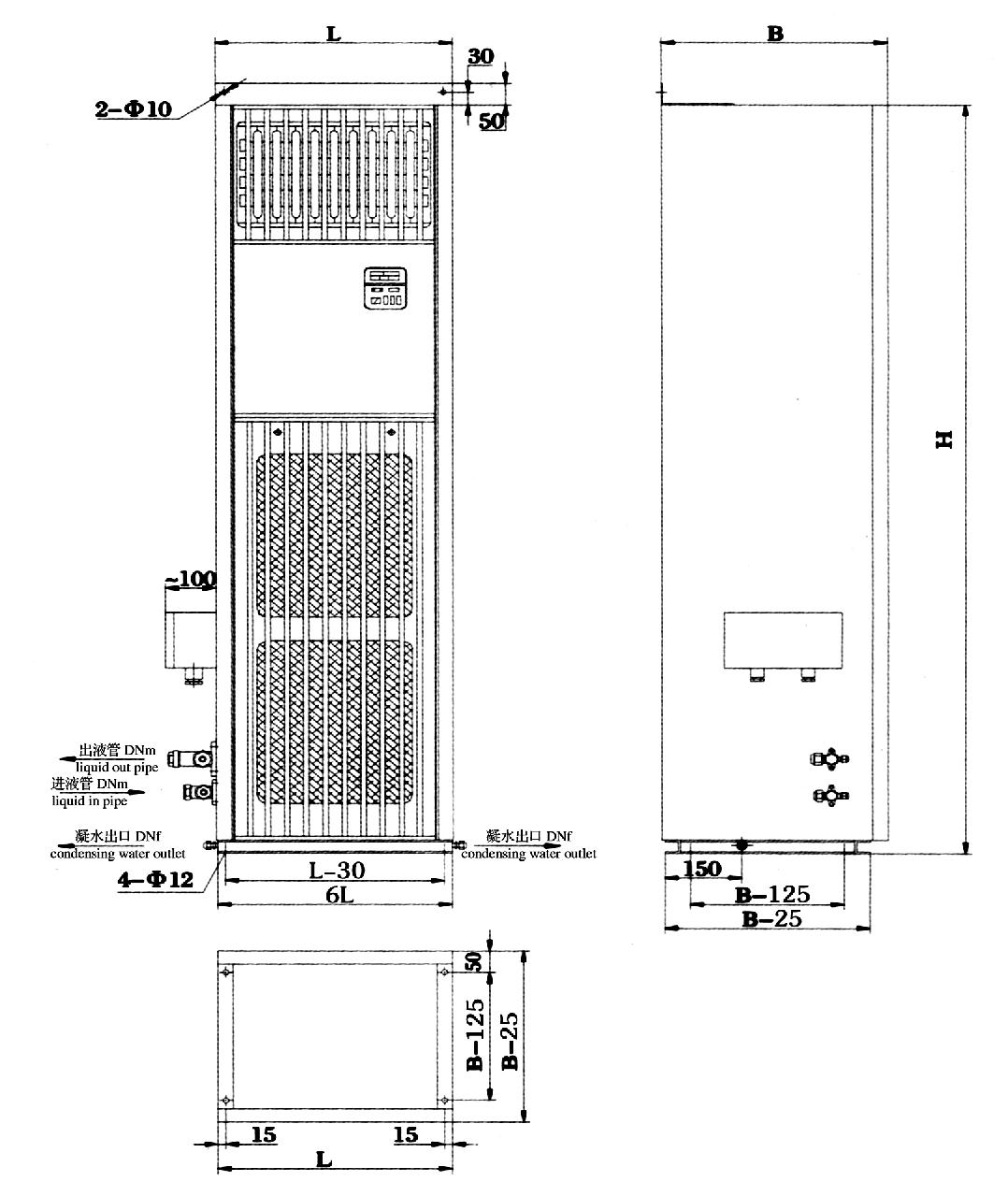

Model CSFK-3(I) CSFK-4(I) CSFK-5(I) CSFK-6(I) CSFK-7(I) CSFK-8(I) CSFK-10(I) CSFK-12(I) CSFK-15(I) CSFK-20(I)
L 470 470 470 470 470 470 470 470 470 470
B 450 450 450 450 450 450 450 450 450 450
H 1800 1800 1800 1800 1800 1800 1800 1800 1800 1800
DNx DN16 DN16 DN16 DN15 DN16 DN16 DN16 DN16 DN16 DN16
DNy DN8 DN8 DN8 DN8 DN10 DN10 DN10/DN8 DN8 DN10 DN10
DNz DN16 DN16 DN16 DN16 DN16 DN16 DN19/DN16 DN16 DN19 DN19
