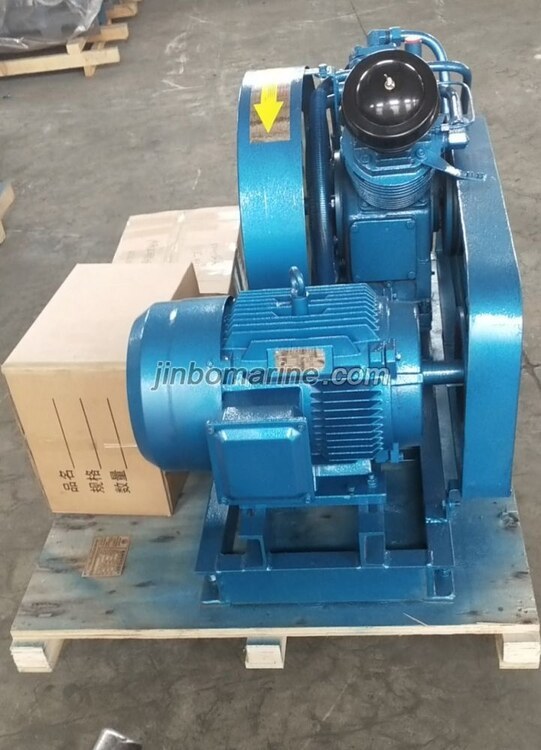

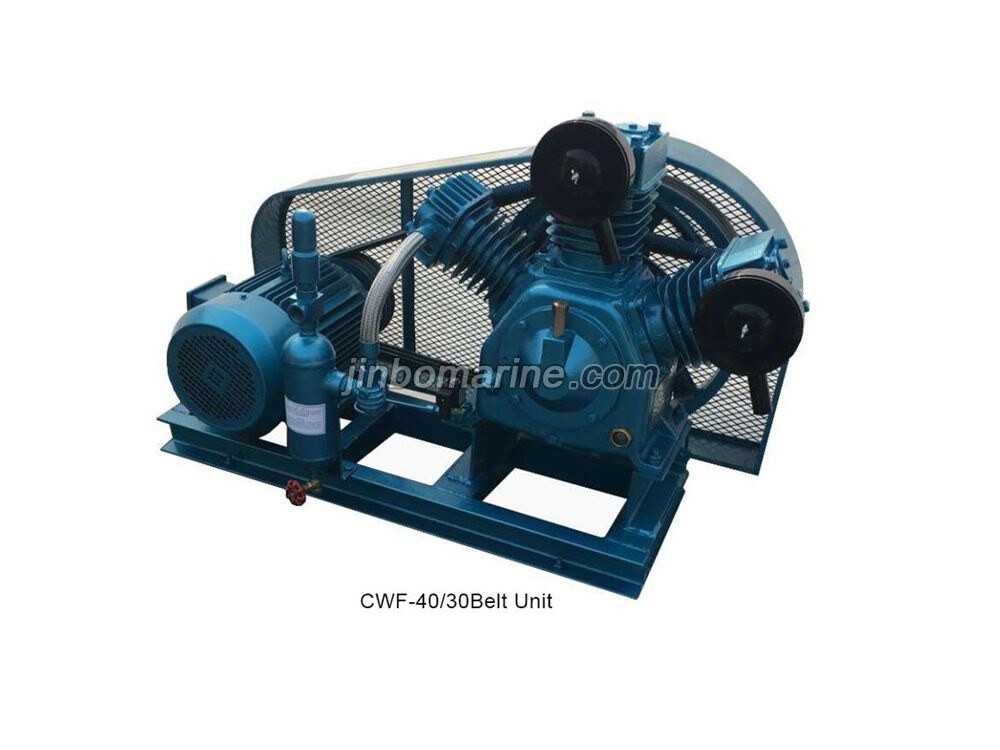

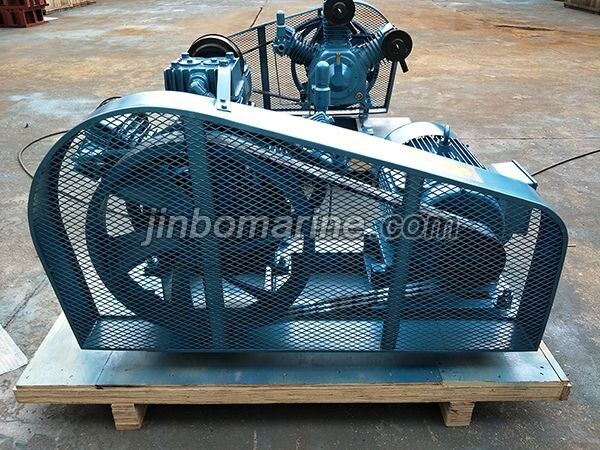

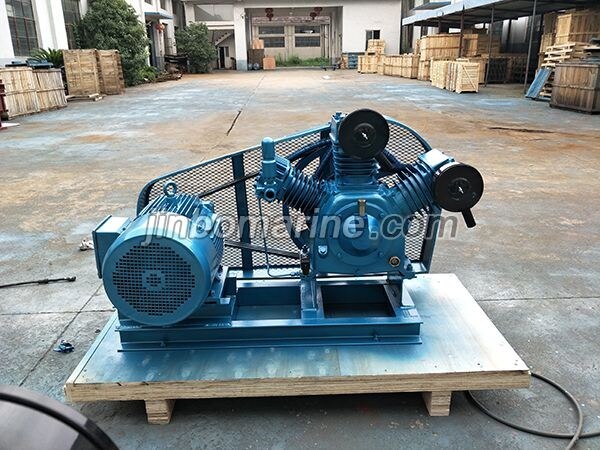

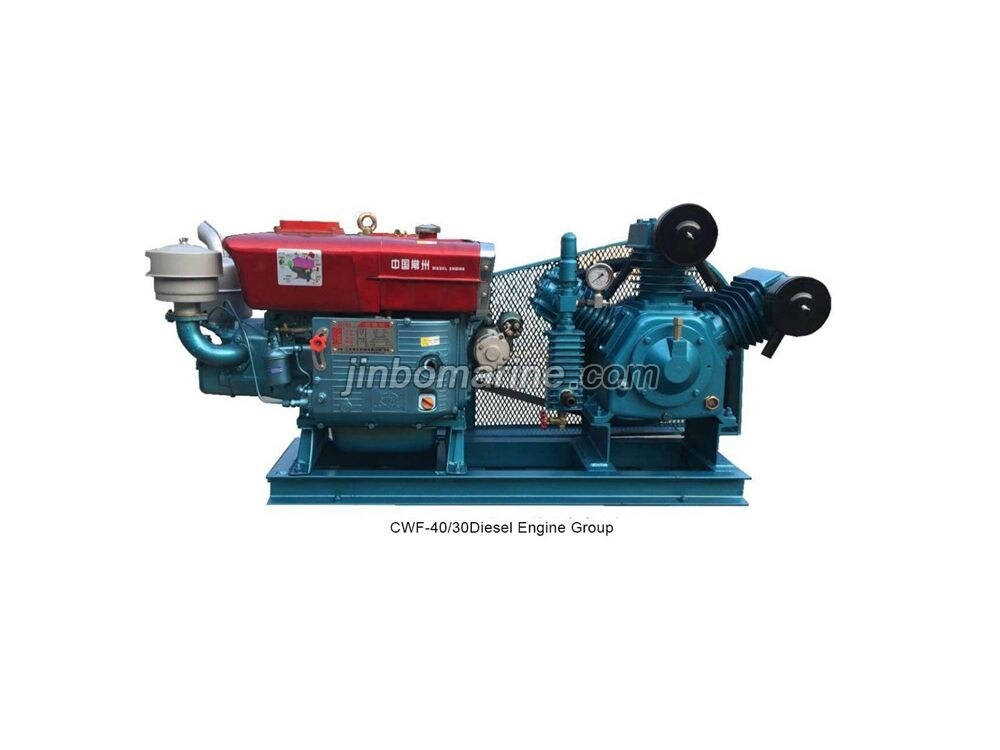

Piston Type Medium Pressure Marine Air Compressor CWF-40/30
- Category:Medium Pressure Air Cooled Marine Air Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Piston Type Medium Pressure Marine Air Compressor CWF-40/30:
The common base is equipped with an air water separator, a pressure controller, and a battery discharge valve.
It can be equipped with temperature control device, shock absorber outlet and exhaust hose.
The fully controlled unit is equipped with wall hanging electronic control box, which can realize automatic unloading, automatic start, automatic stop, overload of motor, automatic alarm, high temperature and stop function.

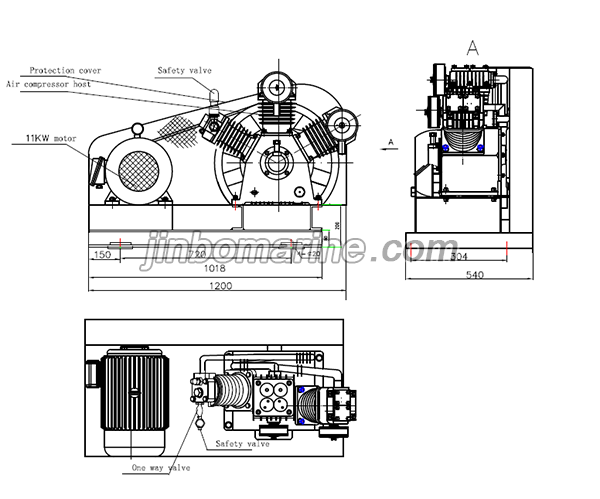

Drawing
Main Specification
| Model | Type | Displacement capacity | Specified Pressure | Rotating Speed | Motor Power | Weight | Overrall (L*W*H) | Transmission mode |
| m3/h | Mpa | r/min | KW | Kg | mm | Belt drive or direct drive | ||
| CWF-40/30 | Air-cooled two stage compression piston type | 40 | 3.0 | 500 | 7.5 | 250 | 1340*620*800 | |
