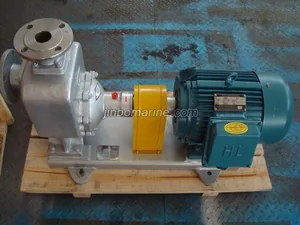

CZY Series Marine Horizontal Self priming Centrifugal Cargo Oil Pump
- Category:Centrifugal Pump
- Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
- Standards:standard
- Certificate:CCS
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
CZY Series Marine Horizontal Self priming Centrifugal Oil Pump
General description
CZY series marine horizontal self priming centrifugal oil pump is based on the technical information at home and abroad as digestion,absorption and improved pumps developed from the latest products,widely used in the oil,gas stations,oil tankers,terminals,airports,respectively transportation gasoline, kerosene,diesel oil,jet fuel,such as the use of mechanical seals and corrosion resistant stainless steel also can be applied to chemical,pharmaceutical,brewing,electroplating printing and dyeing,paper,electricity,such as mines,transmission medium temperature from -20 to 80 degrees,the viscosity of 100cp,solid content of up to 30%.
Technical parameter
| Type | Capacity | Head | Speed | (NPSH) | shaft power | Motor power |
| m3/h | m | r/min | m | kw | kw | |
| 25CZY-20 | 3.2 | 20 | 2900 | 3.5 | 0.935 | 1.1kw,Y80M2-2-H |
| 25CZY-32 | 3.2 | 32 | 1.27 | 1.5kw,Y90S-2-H | ||
| 40CZY-20 | 6.5 | 20 | 0.935 | 1.1kw,Y80M2-2-H | ||
| 40CZY-25 | 6.3 | 25 | 1.87 | 2.2kw,Y90L-2-H | ||
| 40CZY-32 | 6.3 | 32 | 1.87 | 2.2kw,Y90L-2-H | ||
| 40CZY-40 | 6.3 | 42 | 3.4 | 4kw,Y112M-2-H | ||
| 50CZY-25 | 12.5 | 25 | 1.87 | 2.2kw,Y90L-2-H | ||
| 50CZY-32 | 12.5 | 32 | 2.55 | 3kw,Y100L-2-H | ||
| 50CZY-35 | 14 | 35 | 3.4 | 4kw,Y112M-2-H | ||
| 50CZY-40 | 12.5 | 40 | 3.4 | 4kw,Y112M-2-H | ||
| 50CZY-50 | 12.5 | 50 | 4.67 | 5.5kw,Y132S1-2-H | ||
| 50CZY-60 | 15 | 60 | 6.37 | 7.5kw,Y132S2-2-H | ||
| 50CZY-70 | 20 | 70 | 9.35 | 11kw,Y160M1-2-H | ||
| 50CZY-75 | 20 | 75 | 9.35 | 11kw,Y160M1-2-H | ||
| 50CZY-160 | 18 | 160 | 18.7 | 22kw,Y180M-2-H | ||
| 65CZY-15 | 30 | 15 | 2.56 | 3kw,Y100L-2-H | ||
| 65CZY-25 | 25 | 25 | 3.4 | 4kw,Y112M-2-H | ||
| 65CZY-32 | 25 | 32 | 4.67 | 5.5kw,Y132S1-2-H | ||
| 65CZY-40 | 25 | 40 | 6.37 | 7.5kw,Y132S2-2-H | ||
| 65CZY-50 | 25 | 50 | 6.37 | 7.5kw,Y132S2-2-H | ||
| 65CZY-63 | 25 | 63 | 9.35 | 11kw,Y160M1-2-H | ||
| 65CZY-70 | 25 | 70 | 12.75 | 15kw,Y160M2-2-H | ||
| 80CZY-13 | 35 | 13 | 2.55 | 3kw,Y100L-2-H | ||
| 80CZY-17 | 43 | 17 | 3.4 | 4kw,Y112M-2-H | ||
| 80CZY-22 | 40 | 22 | 4.67 | 5.5kw,Y132S1-2-H | ||
| 80CZY-25 | 50 | 25 | 6.37 | 7.5kw,Y132S2-2-H | ||
| 80CZY-32 | 50 | 32 | 6.37 | 7.5kw,Y132S2-2-H | ||
| 80CZY-40 | 50 | 40 | 9.35 | 11kw,Y160M1-2-H | ||
| 80CZY-50 | 50 | 50 | 12.75 | 15kw,Y160M2-2-H | ||
| 80CZY-55 | 60 | 55 | 15.72 | 18.5kw,Y160L-2-H | ||
| 80CZY-63 | 50 | 63 | 15.72 | 18.5kw,Y160L-2-H | ||
| 80CZY-70 | 60 | 70 | 18.7 | 22kw,Y180M-2-H | ||
| 80CZY-80 | 50 | 80 | 18.7 | 22kw,Y180M-2-H | ||
| 80CZY-120 | 70 | 120 | 63.75 | 75kw,Y280S-2-H | ||
| 80CZY-130 | 25 | 130 | 46.75 | 55kw,Y250M-2-H | ||
| 100CZY-20 | 100 | 20 | 9.35 | 11kw,Y160M1-2-H | ||
| 100CZY-32 | 100 | 32 | 12.75 | 15kw,Y160M2-2-H | ||
| 100CZY-40 | 100 | 40 | 18.7 | 22kw,Y180M-2-H | ||
| 100CZY-40(I) | 100 | 40 | 1450 | 18.7 | 22kw,Y180M-2-H | |
| 100CZY-40A | 120 | 30 | 2900 | 18.7 | 22kw,Y180M-2-H | |
| 100CZY-42 | 100 | 42 | 18.7 | 22kw,Y180M-2-H | ||
| 100CZY-50 | 100 | 50 | 25.5 | 30kw,Y200L1-2-H | ||
| 100CZY-63 | 100 | 63 | 25.5 | 30kw,Y200L1-2-H | ||
| 100CZY-75 | 70 | 75 | 25.5 | 30kw,Y200L1-2-H | ||
| 100CZY-80 | 100 | 80 | 38.25 | 45kw,Y225M-2-H | ||
| 100CZY-120 | 70 | 120 | 63.75 | 75kw,Y280S-2-H | ||
| 125CZY-32 | 160 | 32 | 25.5 | 30kw,Y200L1-2-H | ||
| 125CZY-35 | 200 | 35 | 31.45 | 37kw,Y200L2-2-H | ||
| 125CZY-60 | 120 | 60 | 31.45 | 37kw,Y200L2-2-H | ||
| 125CZY-70 | 150 | 70 | 46.75 | 55kw,Y250M-2-H | ||
| 125CZY-125 | 200 | 125 | 4 | 112.2 | 132kw,Y315M-2-H | |
| 150CZY-32 | 200 | 32 | 1450 | 31.45 | 37kw,Y225S-4-H | |
| 150CZY-45 | 170 | 45 | 2900 | 38.25 | 45kw,Y225M-2-H | |
| 150CZY-50 | 200 | 50 | 1450 | 46.75 | 55kw,Y250M-2-H | |
| 150CZY-55 | 170 | 55 | 2900 | 46.75 | 55kw,Y250M-2-H | |
| 150CZY-60 | 200 | 60 | 63.75 | 75kw,Y280S-2-H | ||
| 150CZY-63 | 200 | 63 | 1450 | 76.5 | 90kw,Y280S-4-H | |
| 150CZY-65 | 200 | 65 | 2900 | 63.75 | 75kw,Y280S-2-H | |
| 150CZY-70 | 150 | 70 | 46.75 | 55kw,Y250M-2-H | ||
| 150CZY-80A | 160 | 80 | 63.75 | 75kw,Y280S-2-H | ||
| 150CZY-80 | 200 | 80 | 1450 | 93.5 | 110kw,Y315S-4-H | |
| 200CZY-30 | 300 | 30 | 38.25 | 45kw,Y225M-2-H | ||
| 200CZY-32 | 400 | 32 | 46.75 | 55kw,Y280S1-4-H | ||
| 300CZY-33 | 200 | 33 | 31.45 | 37kw,Y225S-4-H | ||
| 200CZY-50 | 400 | 50 | 5 | 76.5 | 90kw,Y280S-4-H | |
| 200CZY-50A | 200 | 50 | 46.75 | 55kw,Y250-4-H | ||
| 200CZY-63 | 400 | 63 | 93.5 | 110kw,Y315S-4-H | ||
| 200CZY-63A | 280 | 63 | 76.5 | 90kw,Y280S-4-H | ||
| 200CZY-65 | 350 | 65 | 93.5 | 110kw,Y315S-4-H | ||
| 200CZY-75 | 400 | 75 | 4 | 112.2 | 132kw,Y315M1-4-H | |
| 200CZY-85 | 300 | 85 | 5 | 136 | 160kw,Y315M2-4-H | |
| 250CZY-32 | 550 | 32 | 5.5 | 63.75 | 75kw,Y280S-4-H | |
| 250CZY-50 | 400 | 50 | 76.5 | 90kw,Y280S-4-H | ||
| 250CZY-55 | 450 | 55 | 93.5 | 110kw,Y315S-4-H | ||
| 250CZY-75 | 400 | 75 | 112.2 | 132kw,Y315M1-4-H | ||
| 250CZY-85 | 300 | 85 | 136 | 160kw,Y315L1-4-H | ||
| 250CZY-100 | 500 | 100 | 267.7 | 315kw,Y355L2-4-H | ||
| 300CZY-10 | 820 | 10 | 960 | 5.8 | 63.75 | 75kw,Y315S-6-H |
| 300CZY-20 | 700 | 20 | 1450 | 63.75 | 75kw,Y280S-4-H | |
| 300CZY-32 | 600 | 32 | 76.5 | 90kw,Y280S-4-H | ||
| 300CZY-50 | 550 | 50 | 112.2 | 132kw,Y315M1-4-H | ||
| 300CZY-55 | 550 | 55 | 136 | 160kw,Y315M2-4-H | ||
| 300CZY-60 | 600 | 60 | 136 | 160kw,Y315M2-4-H | ||
| 300CZY-65 | 550 | 65 | 136 | 160kw,Y315M2-4-H | ||
| 300CZY-100 | 750 | 100 | 300 | 355kw,Y400L-4-H |
