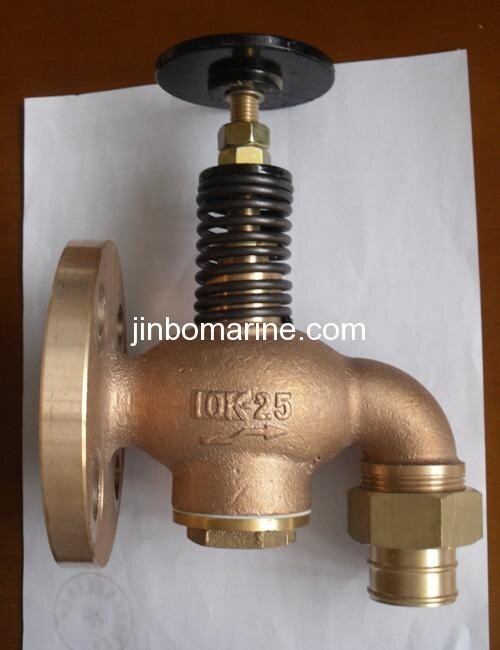

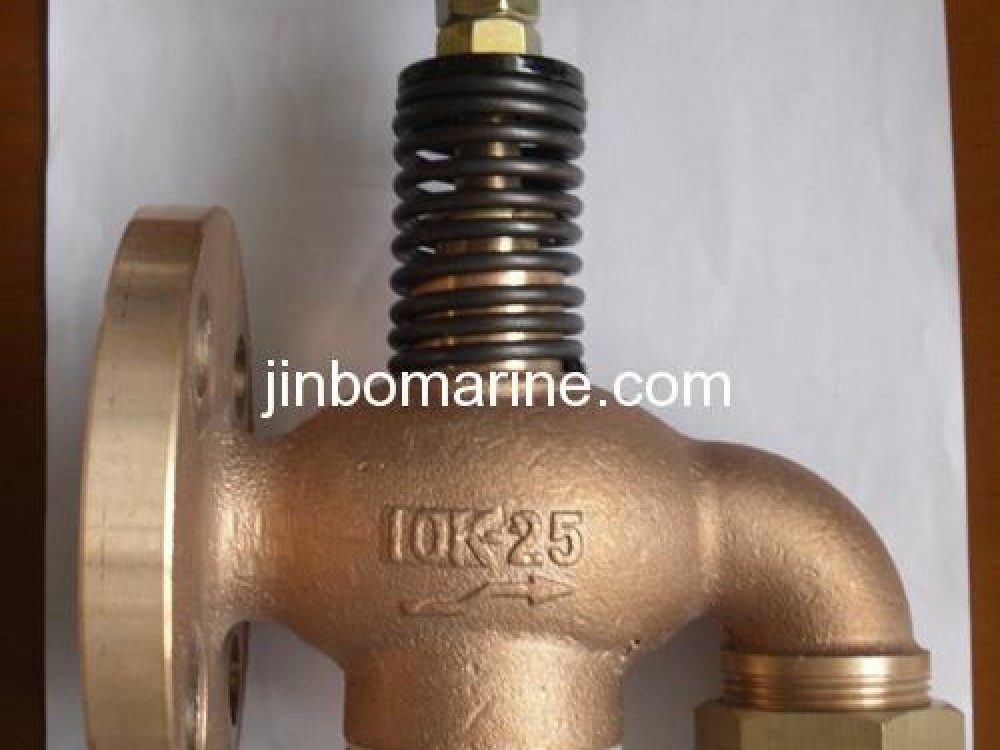

Marine Bronze Fuel oil Tank Self-Closing Drain Valve JIS F7398 U type

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze Fuel oil Tank Self-Closing Drain Valve JIS F7398 U type:

Marine Bronze Fuel oil Tank Self-Closing Drain Valve JIS F7398 has two types, U type and F type. The pressure can be 5K or 10k, and the operation type can be lever or push button.

Design Standard: JIS F7398-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-0.15Mpa, Seal-0.11Mpa

Flange size as per JIS B2220 - 5K or 10K

Main Material:

1.Body: Bronze (BC6)

2.Bonnet: Bronze (BC6)

3.Disc: Bronze (BC6)

4.Stem: Brass (C3771BD)

5. Gasket: non-asbestos

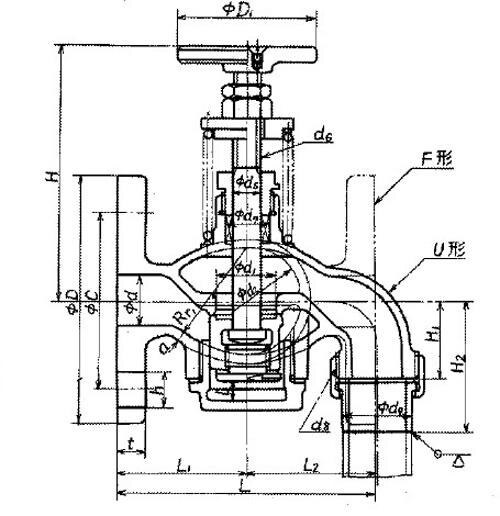

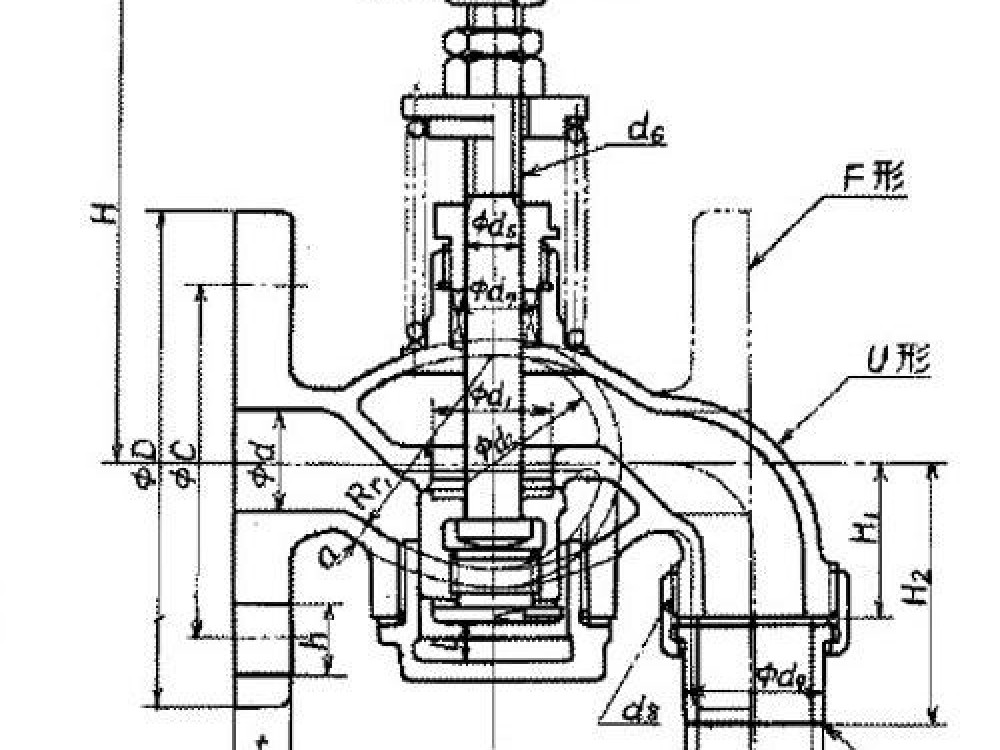

Main Size List(mm):

DN d L1 L2 D C NO. h t
5K15U 15 55 55 80 60 4 12 9
5K20U 20 65 65 85 65 4 12 10
5K25U 25 65 65 95 75 4 12 10
5K40U 40 90 100 120 95 4 15 12
5K50U 50 115 130 130 105 4 15 14
5K65U 65 135 155 155 130 4 15 14
10K15U 15 55 55 95 70 4 15 12
10K20U 20 65 65 100 75 4 15 14
10K25U 25 65 65 125 90 4 19 14
10K40U 40 90 100 140 105 4 19 16
10K50U 50 115 130 155 120 4 19 16
10K65U 65 135 155 175 140 4 19 18
