Diving Breathing High Pressure Air Compressor LYW300

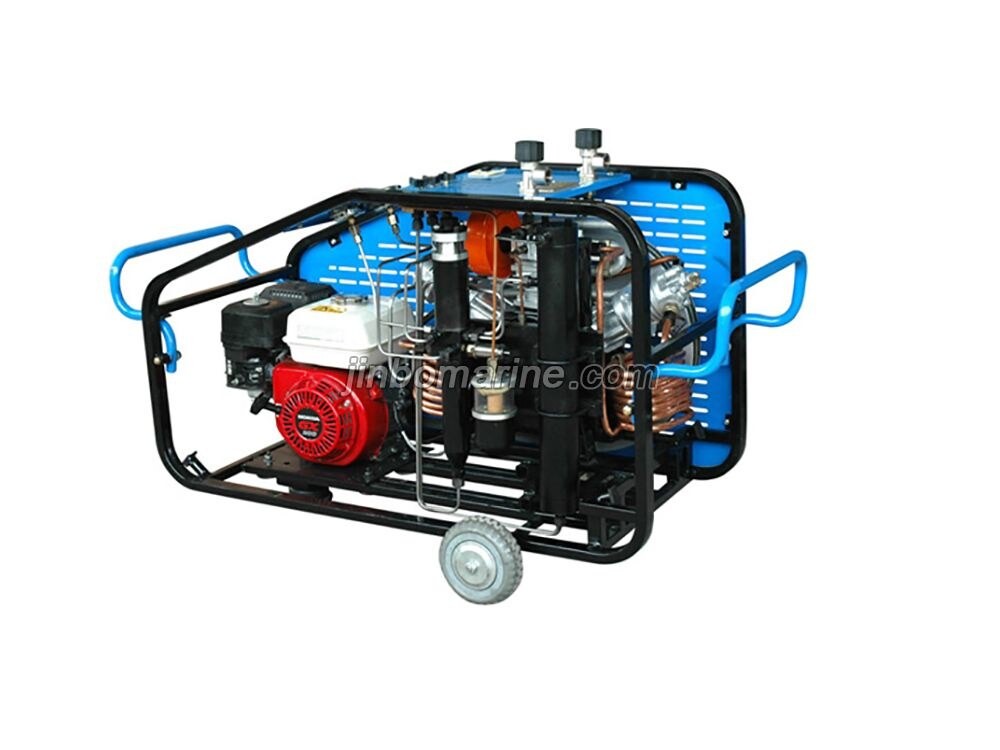

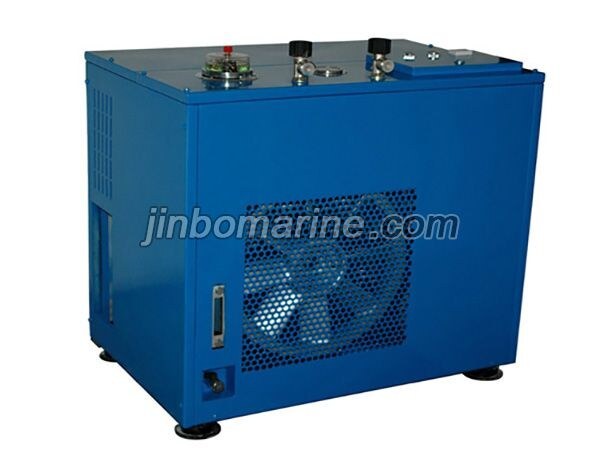

LYW300 high pressure air compressor is stationary compressor for breathing in diving, firefighting industry. It compresses free air to 30Mpa and removes oil, vapor and other contaminants by filters and separators. It is safe and reliable source of pure air. The air quality accords to EN international breathing compressed air quality. LYW300CD is portable type and can be pulled easily. It is driven by Honda engine, so it can be moved to any place. LYW300E is stationary type, noise is controlled under 70 dB(A).

Air-cooling piston reciprocating
Oil splash lubrication
Copper pipe inter-cooler and after cooler
Specially treated alloy cylinder, piston and piston ring
High-strength nylon cooling fan assembly
Intake filter
Anti-shock floor mat
Manual condensate drain knob
Filling hose and filling valve
Safety valves protection for every stage
High temperature resistance plastic powder coating steel frame and base
Activated carbon, monocular sieve for air purification in the filter
Consumables and manuals are provided with every compressor
The warranty period is 1 years

Model	Operating pressure	Drive	Delivery rate	Power	Dimension	Net weight	Noise level
LYW300	Max 300BAR	Three-phase motor	300L/min	5.5kw	100*60*73	178 kg	<79 dB（A）
LYW300CF	Max 300BAR	Honda engine	300L/min	9PS	125*68*73	160 kg	<85 dB（A）
LYW300E	Max 300BAR	Three-phase motor	300L/min	5.5kw	100*60*73	200 kg	<70 dB（A）
