Electrical Water Fire Monitor 80L/S
- Category:Electric Operated Fire Monitor
- Supply Ability:10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

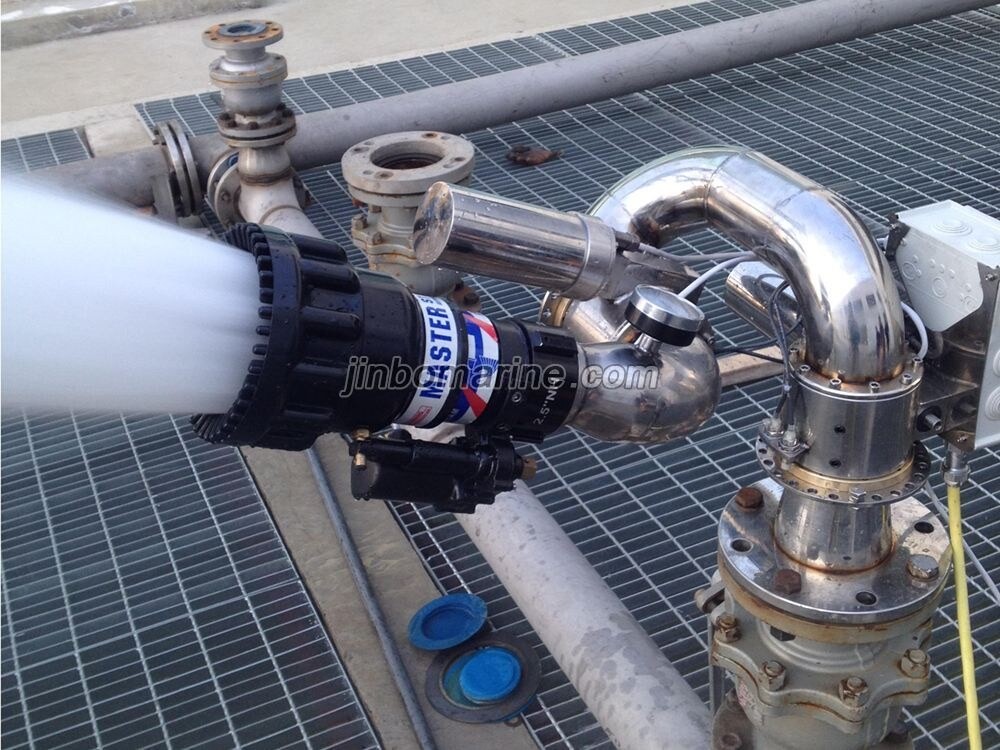

China Electrical Water Fire Monitor 80L/S:
TYPE: JBSX-EM-EE
Flow Range: 80L/S Automatic Nozzle (1250GPM)
Working Pressure: 10 bar~ 12 bar
Max Reach @ Max Flow: 80m
Max. Range of motion: +/-90°Vert , 350°Rot
Max fog angle :120°
Turning speed:18 degrees/sec
Material (body):304L Stainless Steel, 316L Stainless Steel is also available
Material (Gear):bronze
Material (nozzle):Aluminum
Extension: 12 inch (30.5CM)
power supply:12/24VDC or 100-230VAC
Power Consumption normal/Max:50W/150W
Weight incl. nozzle:appox 28kg
Cable Length Monitor- CPU:5m
Cable Length Joystick-CPU:5m standard/ other length available
Pump requirement for minimum performance:80L/S@ 8 bar
Pipe dimensions for installation: 3 Inch
Monitor Inlet :3” male BSP or DN100 flange
Extend Gun Inlet: 3 inch BSP male
Water Way Size: 3 inch
Monitor Outlet:2.5 inch (65mm)
PACKAGE: SS MONITOR, NOZZLE, CONTROL BOX, JOYSTICK, CABLES, ELECTRIC EXTENDER, WIRELESS CONTROL (OPTIONAL)
Flow Range: 80L/S Automatic Nozzle (1250GPM)
Working Pressure: 10 bar~ 12 bar
Max Reach @ Max Flow: 80m
Max. Range of motion: +/-90°Vert , 350°Rot
Max fog angle :120°
Turning speed:18 degrees/sec
Material (body):304L Stainless Steel, 316L Stainless Steel is also available
Material (Gear):bronze
Material (nozzle):Aluminum
Extension: 12 inch (30.5CM)
power supply:12/24VDC or 100-230VAC
Power Consumption normal/Max:50W/150W
Weight incl. nozzle:appox 28kg
Cable Length Monitor- CPU:5m
Cable Length Joystick-CPU:5m standard/ other length available
Pump requirement for minimum performance:80L/S@ 8 bar
Pipe dimensions for installation: 3 Inch
Monitor Inlet :3” male BSP or DN100 flange
Extend Gun Inlet: 3 inch BSP male
Water Way Size: 3 inch
Monitor Outlet:2.5 inch (65mm)
PACKAGE: SS MONITOR, NOZZLE, CONTROL BOX, JOYSTICK, CABLES, ELECTRIC EXTENDER, WIRELESS CONTROL (OPTIONAL)
