Endless Wire Rope Sling
- Category:Chain Sling
- Material:Galvanized Steel Wire Rope
- Standards:GB/T16271-1996.
- Packing Details:Standard Export Packaging
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

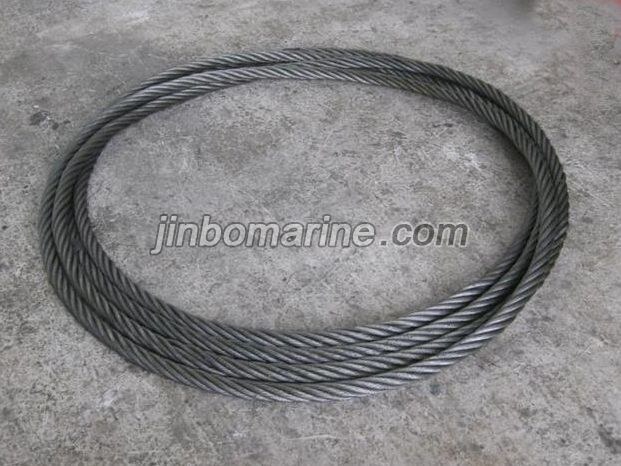

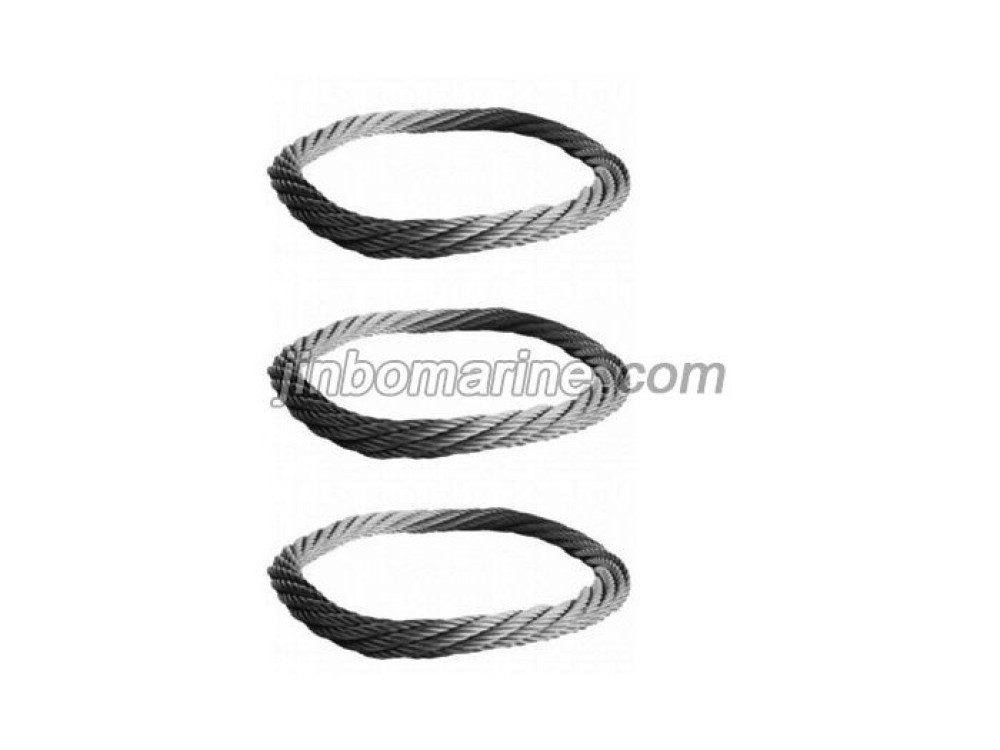

China Endless Wire Rope Sling:
Endless wire rope sling is festured in softness,more suspension points,it cancater to operational requirements of small space and hight load,it is adaptable for special requirements of bulk hoisting under various conditons such as transformer.
Shipbuilding and special machinery.
(where the warning mark locates cannot be used as lifting point.)
Products code |
Diameter (mm) |
Weight (kg/m) |
Breaking load (kg) |
Rated single-limb
load (kg) |
Rated
double-limb load (kg) |
Rated
four-limb load (kg) |
||
α=0° | α=45° | α=90° | α=45° | α=90° | ||||
EW010 | 10 | 0.21 | 6000 | 1000 | 1800 | 1400 | 3700 | 2800 |
EW012 | 12 | 0.35 | 10000 | 1600 | 3000 | 2000 | 5800 | 4000 |
EW016 | 16 | 0.59 | 18000 | 3000 | 5600 | 4000 | 11200 | 8000 |
EW019 | 19 | 0.84 | 24000 | 4000 | 7400 | 5600 | 14800 | 11200 |
EW023 | 23 | 1.51 | 38000 | 6300 | 11700 | 8800 | 23400 | 17600 |
EW029 | 29 | 2.36 | 48000 | 8000 | 14800 | 11300 | 29600 | 22600 |
EW034 | 34 | 2.86 | 60000 | 10000 | 18500 | 14100 | 37000 | 28200 |
EW040 | 40 | 3.99 | 90000 | 15000 | 27800 | 21200 | 55600 | 42400 |
EW046 | 46 | 6.02 | 120000 | 20000 | 37000 | 28200 | 74000 | 56400 |
EW054 | 54 | 7.63 | 150000 | 25000 | 46300 | 35300 | 92600 | 70600 |
EW060 | 60 | 9.45 | 200000 | 32000 | 59200 | 45100 | 118400 | 90200 |
EW067 | 67 | 11.41 | 240000 | 40000 | 74000 | 56400 | 148000 | 112800 |
EW075 | 75 | 13.58 | 300000 | 50000 | 92500 | 70500 | 185000 | 141000 |
EW080 | 80 | 15.96 | 360000 | 60000 | 111000 | 85000 | 222000 | 170000 |
EW087 | 87 | 18.48 | 420000 | 70000 | 130000 | 99000 | 260000 | 198000 |
EW095 | 95 | 24.15 | 480000 | 80000 | 148000 | 113000 | 296000 | 226000 |
EW100 | 100 | 27.3 | 588000 | 98000 | 181000 | 138000 | 362000 | 276000 |
EW110 | 110 | 30.59 | 690000 | 115000 | 213000 | 162000 | 426000 | 324000 |
EW118 | 118 | 41.58 | 780000 | 130000 | 241000 | 183000 | 482000 | 366000 |
EW135 | 135 | 46.9 | 1020000 | 170000 | 310000 | 240000 | 610000 | 470000 |
EW148 | 148 | 55.79 | 1200000 | 200000 | 370000 | 280000 | 720000 | 560000 |
EW160 | 160 | 66.52 | 1440000 | 240000 | 440000 | 340000 | 860000 | 670000 |
EW172 | 172 | 76.3 | 1680000 | 280000 | 520000 | 400000 | 1000000 | 780000 |
EW184 | 184 | 89.6 | 1800000 | 300000 | 550000 | 420000 | 1080000 | 840000 |
EW196 | 196 | 102.2 | 2040000 | 340000 | 630000 | 480000 | 1220000 | 950000 |
EW208 | 208 | 115.5 | 2280000 | 380000 | 700000 | 537000 | 1360000 | 1060000 |
EW220 | 220 | 129.5 | 2520000 | 420000 | 770000 | 594000 | 1500000 | 1170000 |
EW234 | 234 | 144.2 | 2820000 | 470000 | 870000 | 660000 | 1690000 | 1310000 |
EW346 | 346 | 159.6 | 3120000 | 520000 | 960000 | 735000 | 1870000 | 1450000 |
EW258 | 258 | 175.7 | 3420000 | 570000 | 1050000 | 800000 | 2050000 | 1600000 |
EW276 | 276 | 201.6 | 3960000 | 660000 | 1200000 | 930000 | 2370000 | 1840000 |
EW295 | 295 | 229 | 4500000 | 750000 | 1380000 | 1060000 | 2700000 | 2100000 |
EW306 | 306 | 249 | 4920000 | 820000 | 1520000 | 1160000 | 2950000 | 2290000 |
EW324 | 324 | 280 | 5520000 | 920000 | 1700000 | 1300000 | 3310000 | 2570000 |
EW336 | 336 | 301.7 | 5940000 | 990000 | 1800000 | 1400000 | 3650000 | 2770000 |
EW356 | 356 | 335.3 | 6600000 | 1100000 | 2030000 | 1550000 | 3960000 | 3080000 |
EW368 | 368 | 359 | 7200000 | 1200000 | 2220000 | 1700000 | 4320000 | 3360000 |
