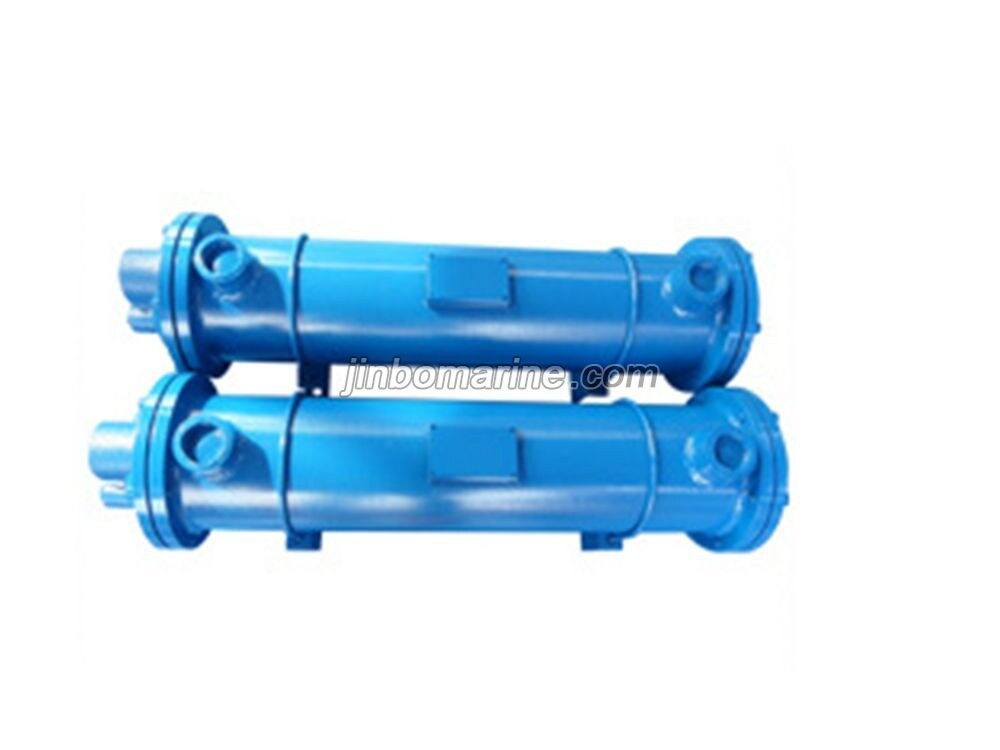

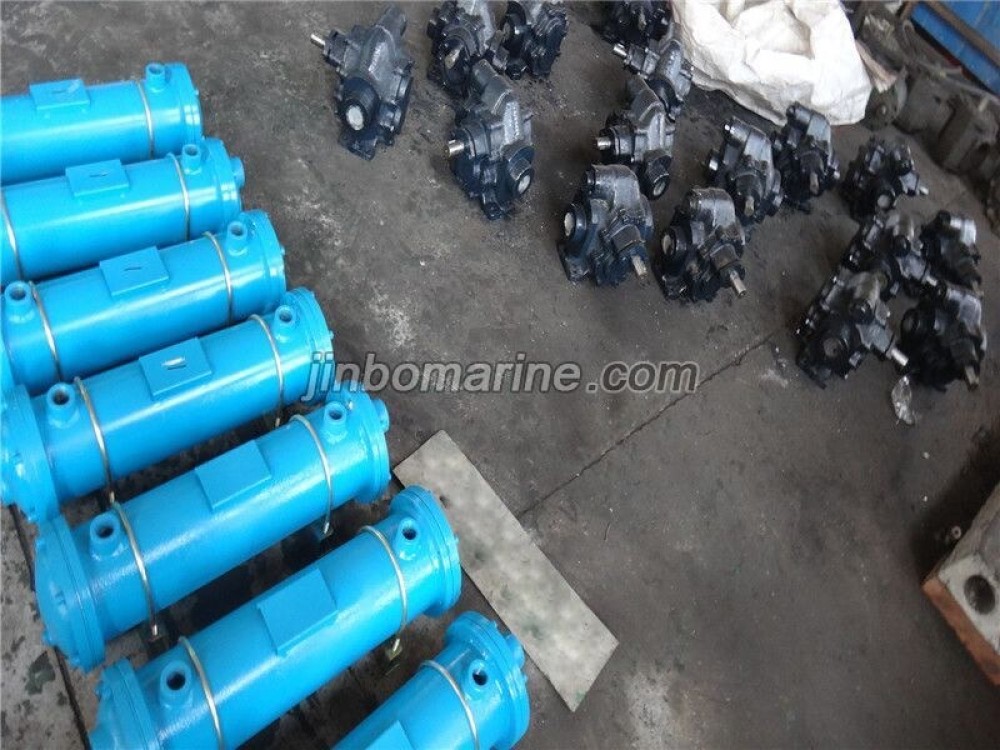

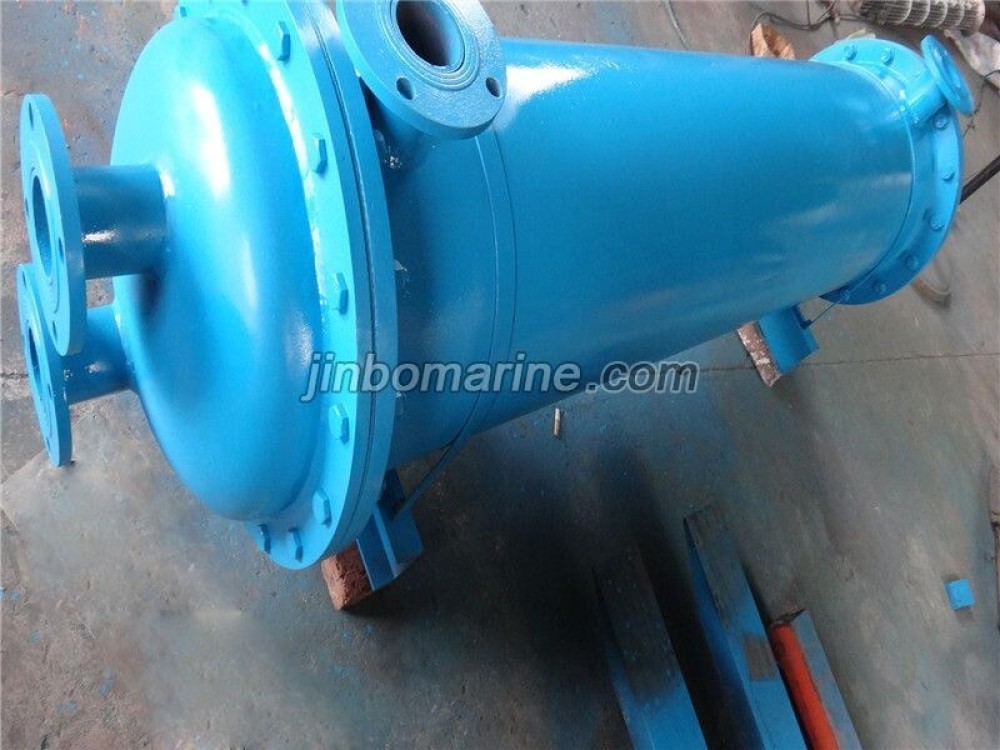

GLQ type steam turbine matching cooler

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China GLQ type steam turbine matching cooler:

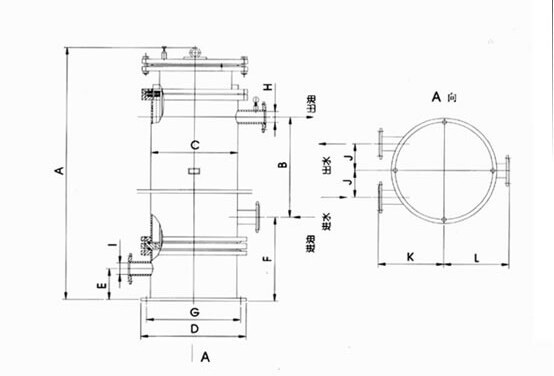

Model Area of cooling surface
m2 		Oil
L/min 		Water
T/h 		A B C D E F G H I J K L
GLQ-30/0.63 30 500 60 2270 1400 426 590 200 500 540
4-Φ22 		125 125 130 400 400
GLQ-40/0.63 40 700 100 2555 1602 516 645 250 540 600
4-Φ22 		150 150 180 400 425
GLQ-60/0.63 60 1390 130 3126 1900 616 870 300 645 820
4-Φ22 		150 200 185 550 525
GLQ-200/0.63 200 6950 736 4182 2735 820 1295 300 687 1230
4-Φ22 		200 280 250 765 820
