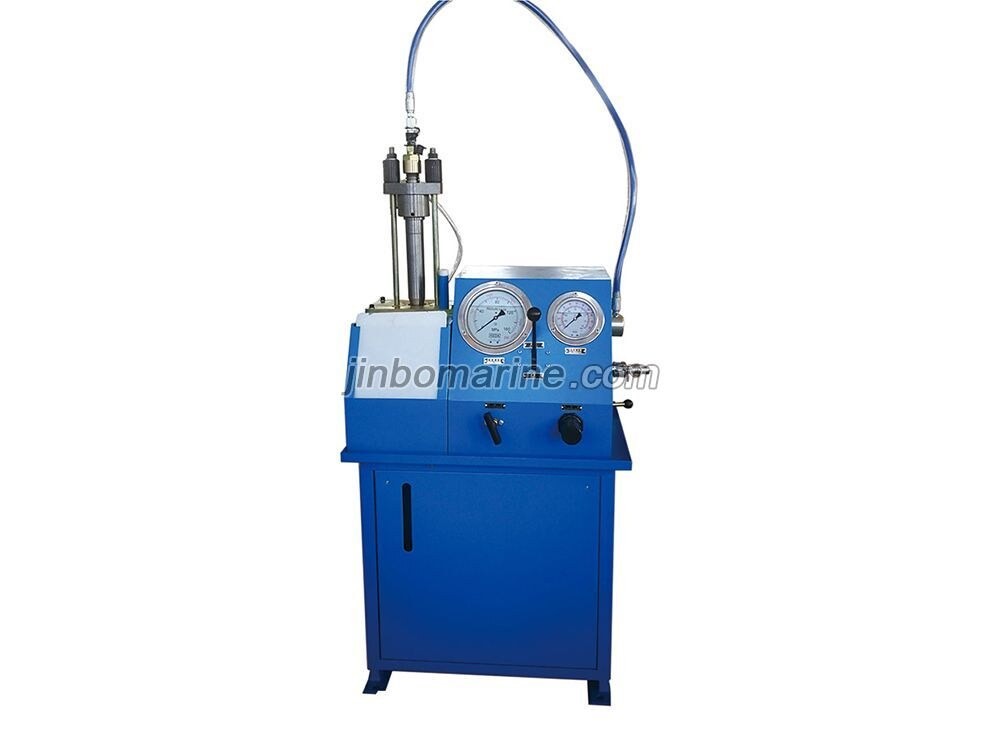

HDP-1100-2 Injector Test Bench Pneumatic Hydraulic Pump

The pump unit mainly used to measure its spray condition ,is an essential test tool for high-power diesel

engines it has the advantages of big power ,small size compact structure and easy operation etc.

(1) .output pressure:max.8mpa at 0.7mpa air input

(2) .air consumption: 12liters/cycle at 0.7mpa and no output pressure

(3) .max flow at on pressure:40ML/cycle at an air input of 0.4mpa

(4) .pumping speed: 20cycle/min at 0.4mpa up air input,and no output pressure

(5) .tank capacity: 8liters

(6) .dimensions : 750X480X1250mm

(7) .net weight :90kgs
