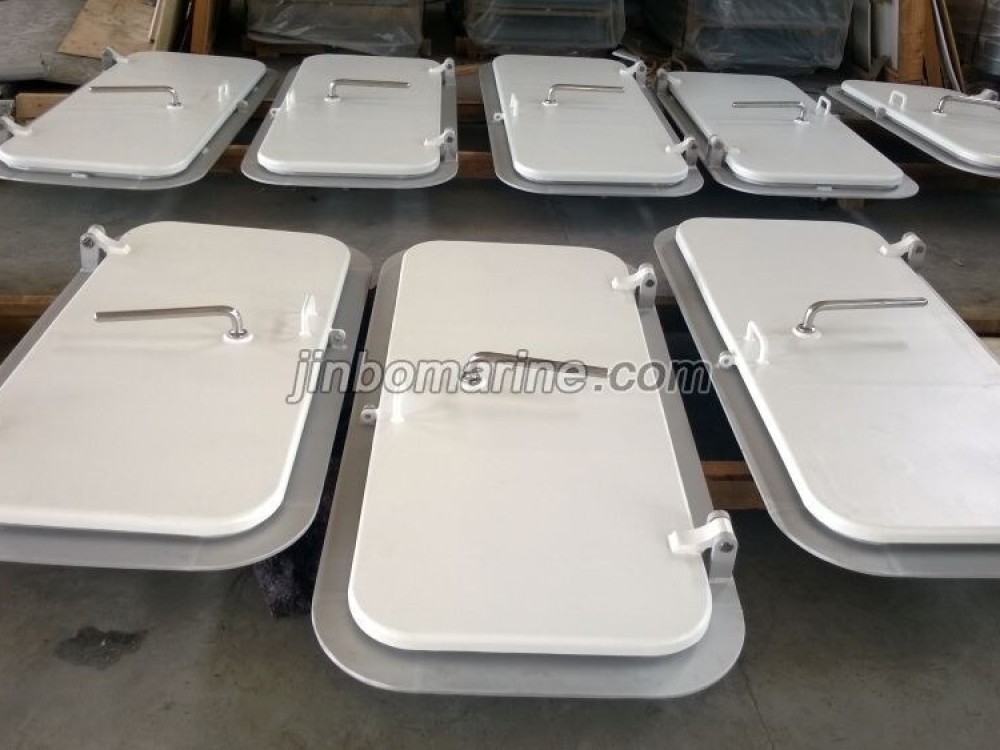

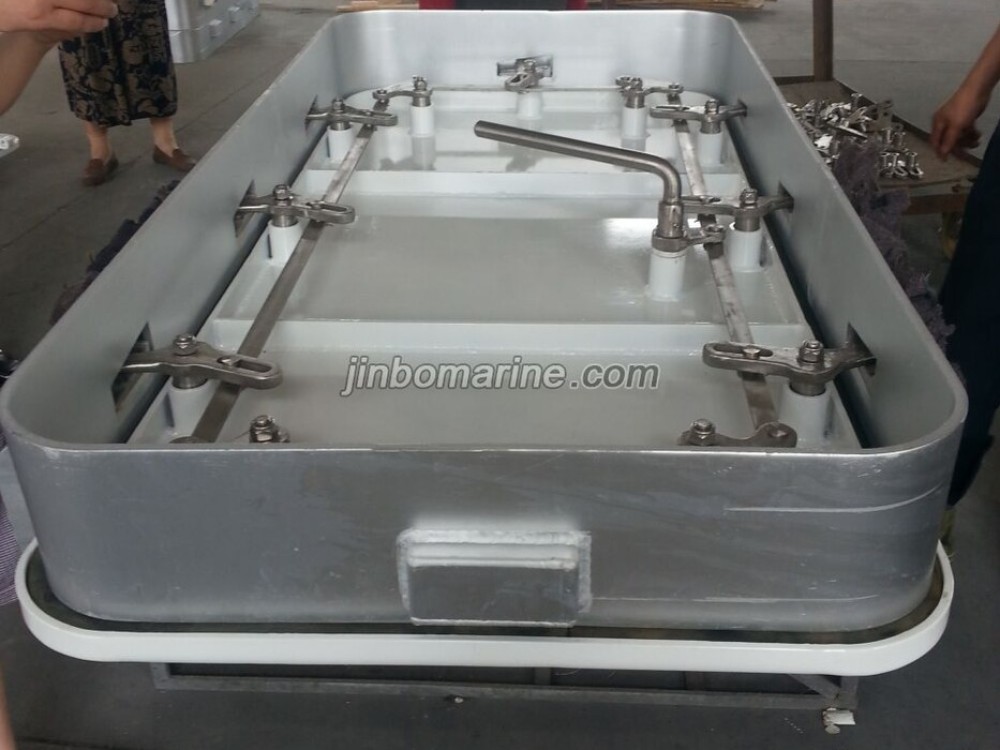

Marine Aluminum Quick Acting Weathertight Door with Single Lever
- Category:Marine Door
- Material:Aluminum
- Standards:CB/T3477-96 & CB/T454-97 for reference
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Aluminum Quick Acting Weathertight Door with Single Lever:
Standard: GB/T3477-96 &CB/T454-97 for reference.
The Aluminum weathertight door must pass the hose test with nozzle diameter 12.5mm and the water pressure 0.25Mpa.

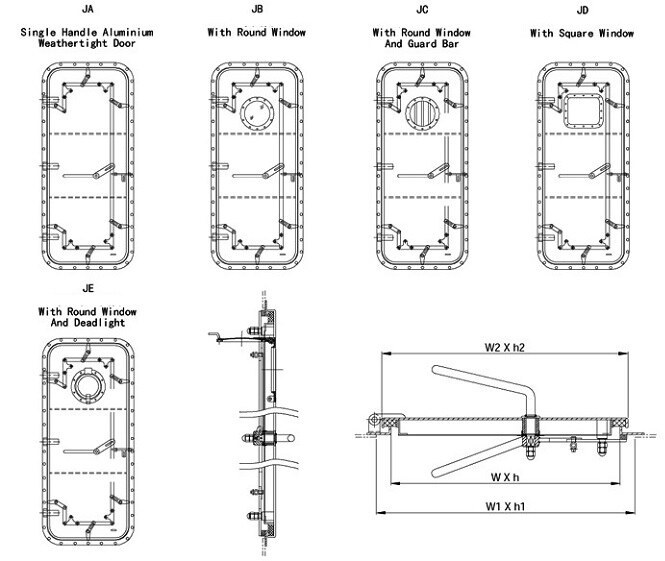

Type:
JA-Aluminum weathertight door
JB-Aluminum weathertight door with round window
JC-Aluminum weathertight door with round window & guard bar
JD-Aluminum weathertight door with square window
JE-Aluminum weathertight door with round window & deadlight
Main Material:
Door Leaf-Aluminum
Door Frame-Aluminum(Bolted installment) or Steel (Welded installment)
Lever-Carbon Steel or Stainless Steel
Main Size List(mm):
| Clear Size | Cut Out Size | Door leaf Size | Door Frame | |||
| WXh | W1Xh1 | R | W2Xh2 | t | Spec | Thickness |
| 500x1000 | 560x1060 | 130 | 555x1055 | 4,6 | 75x50 | 6,8 |
| 600x1200 | 660x1260 | 655x1255 | ||||
| 600x1400 | 660x1460 | 655x1455 | ||||
| 750x1400 | 810x1460 | 805x1455 | ||||
| 900x1400 | 960x1460 | 955x1455 | ||||
| 600x1600 | 660x1660 | 655x1655 | ||||
| 750x1600 | 810x1660 | 805x1655 | ||||
| 900x1600 | 960x1660 | 955x1655 | ||||
