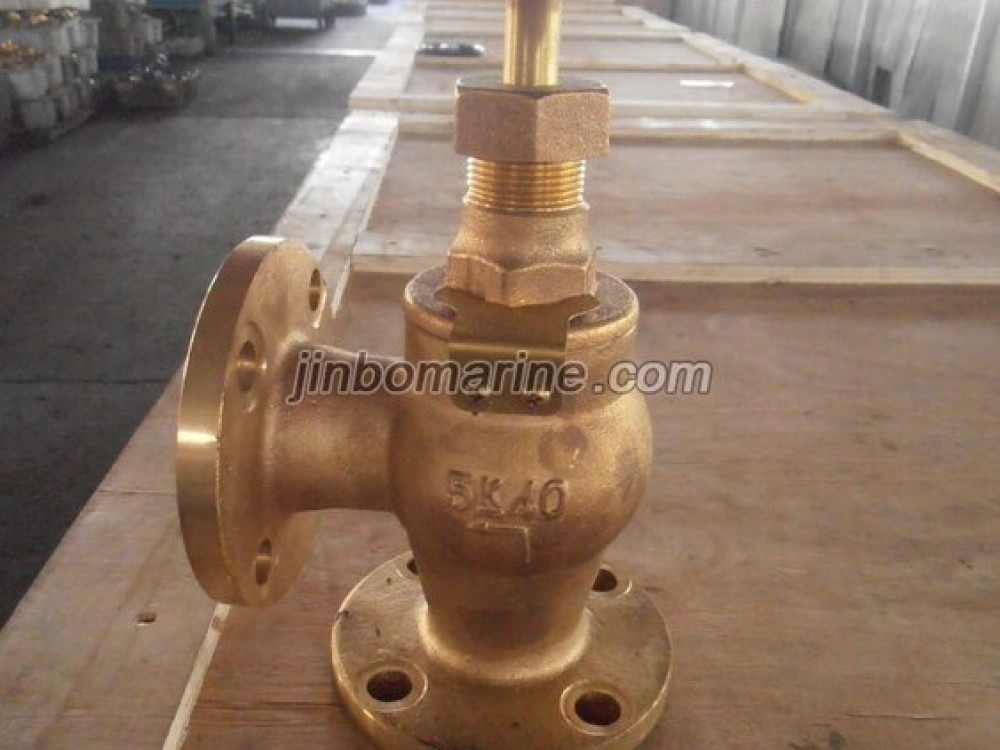

Marine Bronze Screw Down Check Angle Valve JIS F7352 5K
- Category:JIS Marine Angle Valve
- Material:Bronze, Brass
- Standards:JIS F7352
- Certificate:CCS,BV,GL,NK,RINA,ABS,DNV,LR
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Bronze Screw Down Check Angle Valve JIS F7352 5K:
Design Standard: JIS F7352-1996
Test Standard: JIS F7400-1996
Test Pressure: Body-1.05Mpa, Seat-0.77Mpa
Flange Size as per JIS B2220-5K
*DN15-DN40 with screwed bonnet, DN50-DN65 with bolted bonnet
*Marine Screw Down Check Angle Valve also can be called as Angle SDNR Valve or Angle SDNR Globe Valve.

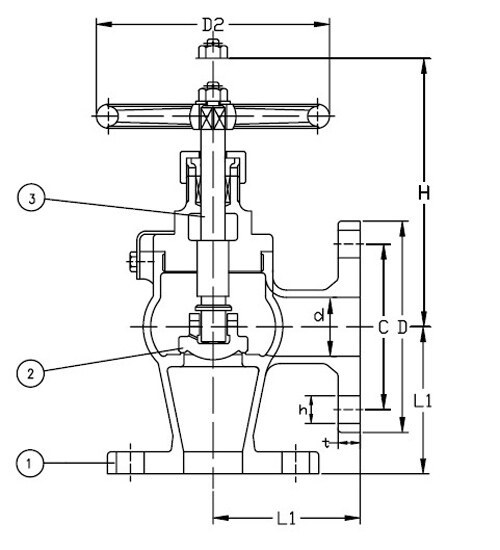

Main Material:
1-Body: Bronze (BC6) /Brass
2-Disc:Bronze (BC6) /Brass
3-Stem: Brass (C3771BD)
4-Bonnet:Bronze (BC6) / Brass
5-Handwheel: Cast Iron (FC200)
Main Size List(mm):
| IMPA Code | Size | L1 | D | C | No of Bolt Hole | h | t | H | D2 |
| 751061 | 15 | 55 | 80 | 60 | 4 | 12 | 9 | 120 | 80 |
| 751062 | 20 | 60 | 85 | 65 | 4 | 12 | 10 | 130 | 100 |
| 751063 | 25 | 65 | 95 | 75 | 4 | 12 | 10 | 145 | 125 |
| 751064 | 32 | 80 | 115 | 90 | 4 | 15 | 12 | 150 | 125 |
| 751065 | 40 | 85 | 120 | 95 | 4 | 15 | 12 | 165 | 140 |
| 751066 | 50 | 100 | 130 | 105 | 4 | 15 | 14 | 200 | 140 |
| 751067 | 65 | 115 | 155 | 130 | 4 | 15 | 14 | 220 | 160 |
