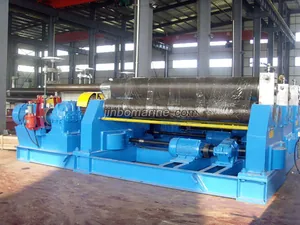

W11 Series Mechanical 3-roller Symmetrical Characteristics

The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the two lower rollers, which is achieved through the drive of the screw, the nut, the worm and he lead screw, The two lower rollers rotates, and provides the plate materials with torque through the engagement of the output gear of the moderator with the moderator with the gear of the lower rollers. The disadvantage of the machine is that the ends of the plate materials need to have the help from other equipment for pre-bending.

W11 Series Mechanical 3-roller Symmetrical Technical Specifications

Model Max rolling Max rolling Diameter of Diameter of Central distance Min full loading Rolling Motor
thickness width top roller bottom roller between diameter speed power
bottom roller of coiled plate
(mm) (mm) (mm) (mm) (mm) (mm) (m/min) (KW)
W11-3x2000 3 2000 165 140 160 350 4 4
W11-3x3100 3 3100 180 140 220 450 4.5 4
W11-3x3200 3 3200 180 150 220 450 4.5 4
W11-4x1500 4 1500 180 160 200 400 5 4
W11-4x2000 4 2000 160 140 220 450 4 4
W11-4x2500 4 2500 180 150 220 450 4.5 4
W11-4x3000 4 3000 210 180 260 400 4 5.5
W11-4x3100 4 3100 180 160 220 450 4.5 5.5
W11-4x4000 4 4000 260 180 259 600 4 5.5
W11-6x1500 6 1500 185 170 220 450 5 4
W11-6x2000 6 2000 190 170 250 400 4 5.5
W11-6x2500 6 2500 220 170 280 500 4.5 5.5
W11-6x3000 6 3000 240 220 280 600 4 7.5
W11-6x3200 6 3200 240 220 280 600 4 7.5
W11-6x4000 6 4000 250 190 259 600 4 7.5
W11-8x1000 8 1000 150 135 220 250 4 4
W11-8x2000 8 2000 200 170 260 500 4 5.5
W11-8x2500 8 2500 240 180 280 600 4 7.5
W11-8x3000 8 3000 250 200 280 400 4 7.5
W11-8x3100 8 3100 250 200 280 400 4 7.5
W11-8x3200 8 3200 260 200 280 400 4 7.5
W11-8x5000 8 5000 320 240 360 500 4 11
W11-10x1500 10 1500 185 170 260 550 4 5.5
W11-10x2000 10 2000 220 180 280 550 4 7.5
W11-10x3000 10 3000 260 240 360 500 4 11
W11-10x3200 10 3200 280 240 359 800 4 11
W11-10x4000 10 4000 340 260 430 800 4 15
W11-12x1500 12 1500 220 200 280 600 4 7.5
W11-12x2000 12 2000 240 180 280 600 4 7.5
W11-12x2500 12 2500 260 220 320 600 4 7.5
W11-12x3000 12 3000 280 250 360 700 4 11
W11-12x3200 12 3200 280 250 360 700 4 11
W11-12x4000 12 4000 400 300 430 1000 4 15
W11-14x3000 14 3000 280 250 359 700 4 11
W11-16x1500 16 1500 260 220 320 700 4 7.5
W11-16x2000 16 2000 260 220 320 700 4 7.5
W11-16x2500 16 2500 280 240 360 700 4 11
W11-16x3000 16 3000 340 260 440 800 4 15
W11-16x3200 16 3200 340 280 440 800 4 15
W11-20x2000 20 2000 280 240 360 700 4 15
W11-20x2500 20 2500 330 260 440 850 4 15
W11-25x2000 25 2000 330 260 440 900 4 15
W11-25x2500 25 2500 360 280 480 1200 4 22
W11-25x3000 25 3000 420 350 550 1200 4 22
W11-30x2500 30 2500 420 360 550 1200 4 30
W11-30x3000 30 3000 450 390 600 1200 4 30
