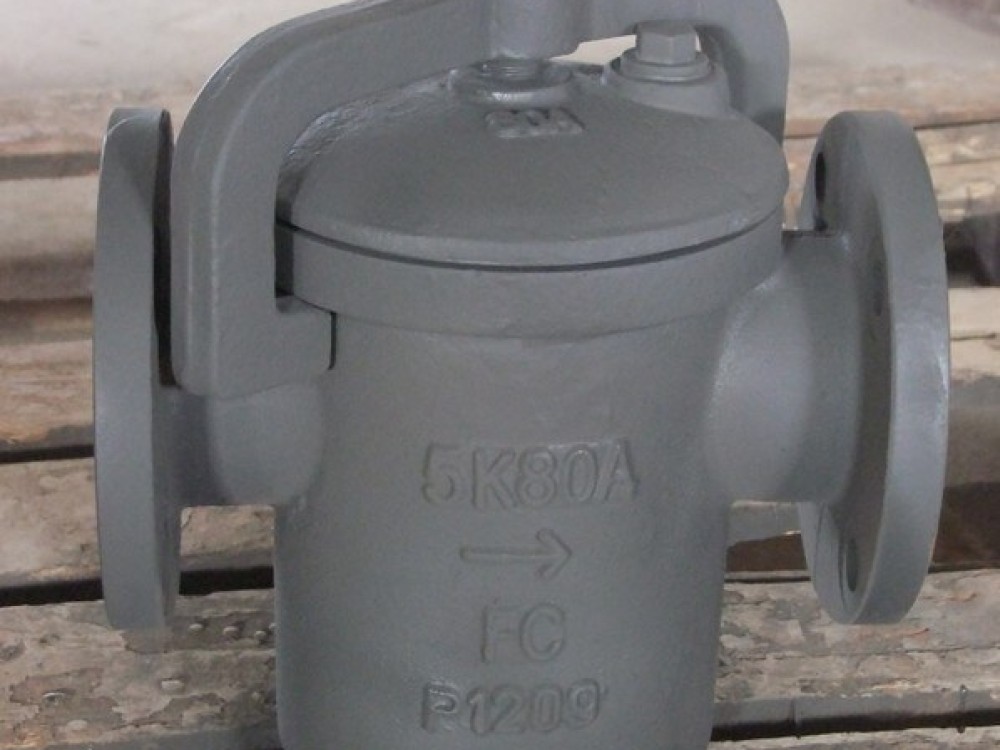

Marine Can Water Filter JIS 7121 S Type 5K (DN25-DN100)

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

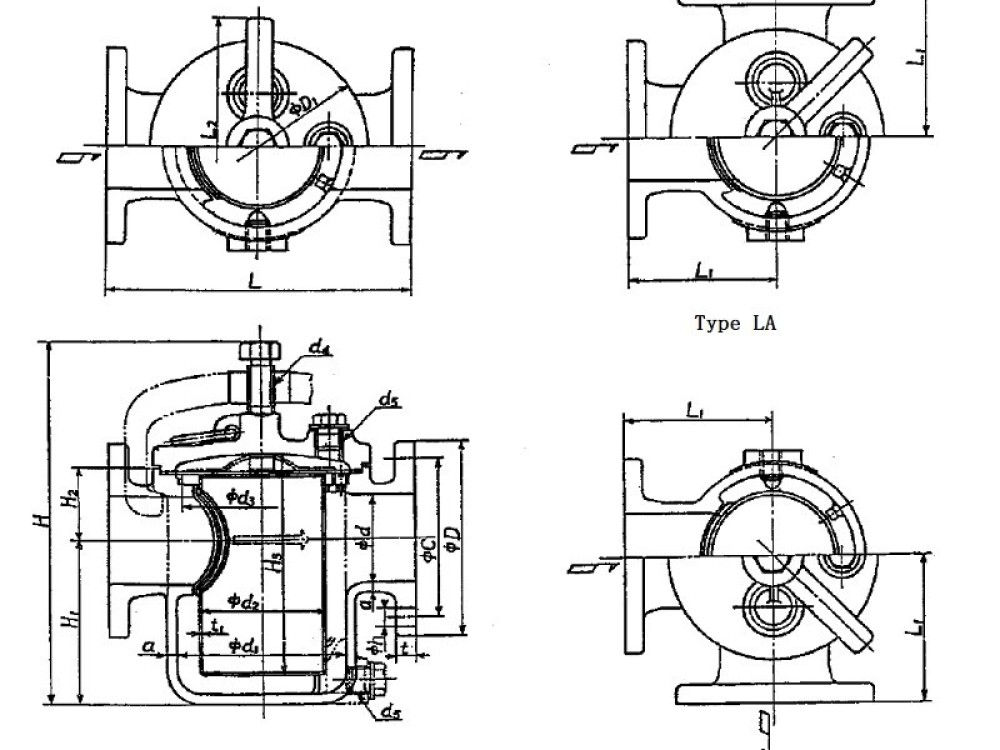

Marine Can Water Filter JIS 7121 S Type 5K (DN25-DN100) Drawing

Marine Can Water Filter JIS 7121 S Type 5K (DN25-DN100) Drawing

China Marine Can Water Filter JIS 7121 S Type 5K (DN25-DN100):

Marine Can Water Filter JIS F7121 also can be called as marine sea water filter or marine basket water filer.

Design Standard: JIS F7121-1996

Test Standard: JIS 7200-1996

Hydraulic Test Pressure: Body- 0.3Mpa

Flange size as per JIS B2220 - 5K

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Strainer: Stainless Steel (SUS304)

Gasket: non-asbestos

Yoke: FCD450

Air Vent Plug: Brass

Drain Plug: Brass

Main Size List(mm):

DN
d L L1 D C h t H
25 25 170 85 95 75 12 14 191
32 32 190 95 115 90 15 16 218
40 40 190 95 120 95 15 16 218
50 50 200 100 130 105 15 16 239
65 65 250 125 155 130 15 18 306
80 80 270 135 180 145 19 18 341
100 100 320 160 200 165 19 20 401
