Marine Cast Steel Screw Down Check Angle Valve JIS F7472 10K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

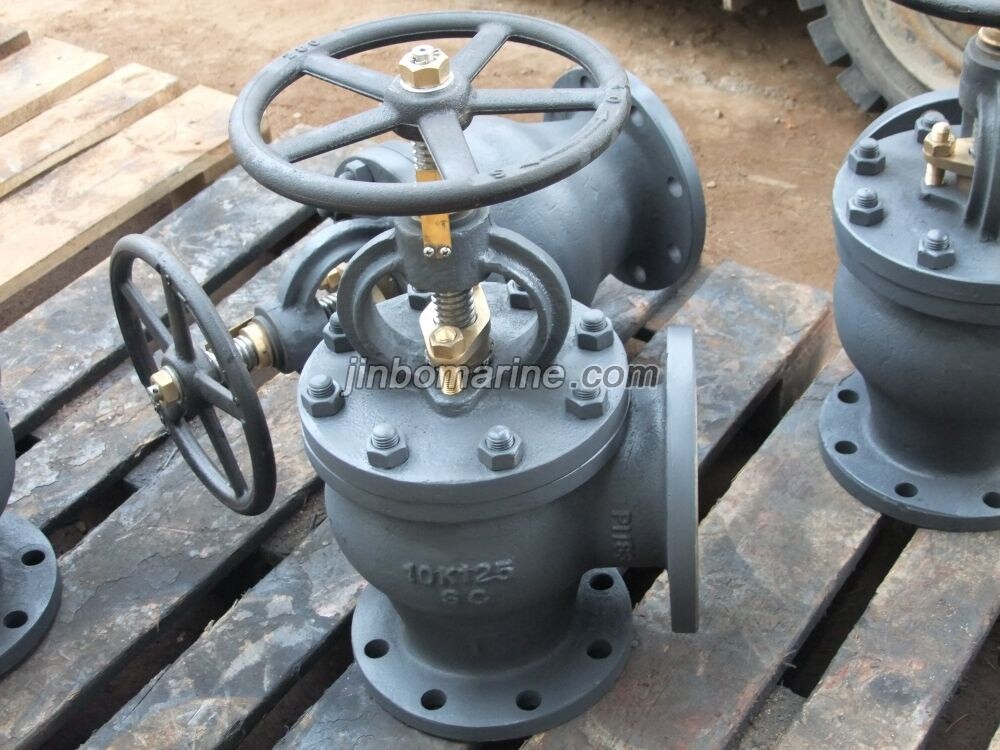

China Marine Cast Steel Screw Down Check Angle Valve JIS F7472 10K:

Marine Cast Steel Screw Down Check Angle Valve also can be called as Marine Cast Steel Angle SDNR Valve or SDNR Angle Valve. It is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 300 centigrade degree.

Design Standard: JIS F7472-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-2.1Mpa, Seat-1.54Mpa~0.4Mpa

Flange size as per JIS B2220 -10K

* The standard one is without indicator, if the customer needs the indicator for the SDNR Valve, pls state when inquiry or order.

Main Material:

Body: Cast Steel (SC480)

Bonnet: Cast Steel (SC480)

Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

Stem: C3771BD (Brass) or SUS403

Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Gasket: non-asbestos

Handwheel: Cast Iron (FC200)

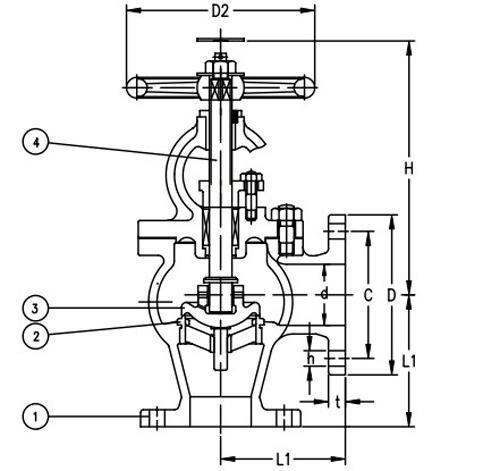

Main Size List(mm):

IMPA CODE DN L1 D C No of bolt hole h t H D2 Weight(kgs)
751216 50 120 155 120 4 19 16 240 160 16.3
751217 65 130 175 140 4 19 18 260 200 8
751218 80 140 185 150 8 19 18 265 200 25.3
751219 100 160 210 175 8 19 18 300 250 37
751220 125 180 250 210 8 23 20 350 280 56.6
751221 150 205 280 240 8 23 22 400 315 77.1
751222 200 230 330 290 12 23 22 480 355 116
751223 250 290 400 355 12 25 24 535 400 188
751224 300 320 445 400 16 25 24 610 450 256
