Marine Fixed Pitch Tunnel Thruster
- Category:Tunnel Thrusters
- Material:Steel, Cu
- Certificate:ABS, CCS, BV,DNV,CCS
- Packing Details:Wooden Box
- Supply Ability:30set
- Delivery Time:40 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China Marine Fixed Pitch Tunnel Thruster:
Tunnel thruster is installed on the bow or stern and improve the maneuvering when ship harbor and low-speed situation, emergency steering and under the zero or low speed dynamic positioning thrust is installed on the bow or stern purpose is to improve the ship into the harbor, low-speed maneuvering, emergency steering and the dynamic positioning under the zero or low speed
Tunnel thruster to improve docking, slow speed maneuvering, emergency steering and the dynamic positioning under the zero or low speed, which installed in the bow or stern of ship.
For more, please contact us at sales@jinbomarine.com for more details or inquiry.
Controllable Pitched Marine Bow Thruster / Tunnel Thruster
*Tunnel thruster type: controllable pitched tunnel thruster/bow thruster,CPP bow thruster
*Driven by engine or by motor,CUMMINS,
*Propeller diameter available:2100MM
*Propeller material:CU1,CU2,CU3
*Certificate available:CCS,ABS,DNV,LR,GL
Product Specification
| Input Speed (rpm) | 1470 | 1170 | 1470 | 1170 | 1470 | 1170 | 1470 | 1170 | 1470 | 1170 | 1770 | 1470 | 1470 | 1170 | 1170 | 970 |
| Frequncy(Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 60 | 50 | 50 | 60 | 60 | 50 |
| Input Power Max.(kw) | 63/86 | 50/68 | 125/170 | 100/136 | 200/272 | 200/272 | 280/380 | 280/380 | 420/570 | 336/457 | 550/748 | 550/748 | 900/1224 | 725/986 | 1250/1700 | 1000/1360 |
| Max. Thrust(KN) | 9.5 | 7.9 | 17.5 | 14.5 | 28 | 28 | 42 | 42 | 63 | 51 | 72 | 72 | 125 | 110 | 183 | 155 |
| Standard Inner Dia(mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 2000 | 2000 | 2500 | 2500 |
| Tunnel thicknessmm | 12 | 12 | 12 | 12 | 15 | 15 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Propeller Dia.(mm) | 500 | 500 | 630 | 630 | 800 | 800 | 1000/1100 | 1000/1100 | 1300 | 1300 | 1500 | 1500 | 1750 | 1750 | 2100 | 2100 |
| Weight(kgs) | 300 | 300 | 430 | 430 | 730 | 730 | 1450 | 1450 | 1510 | 1510 | 2450 | 2450 | 2680 | 2680 | 3200 | 3200 |

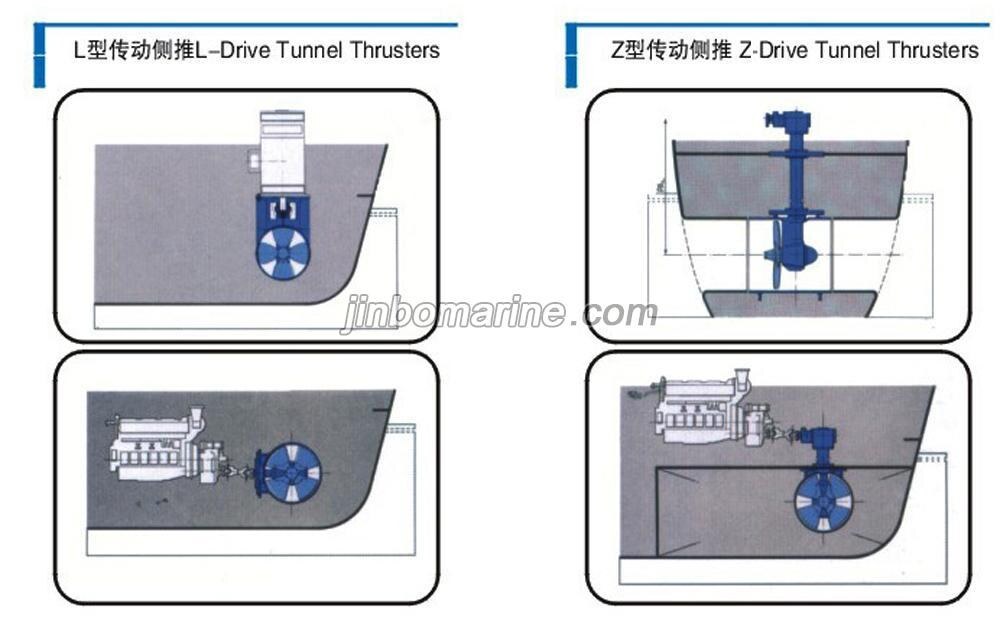

Product Installation
