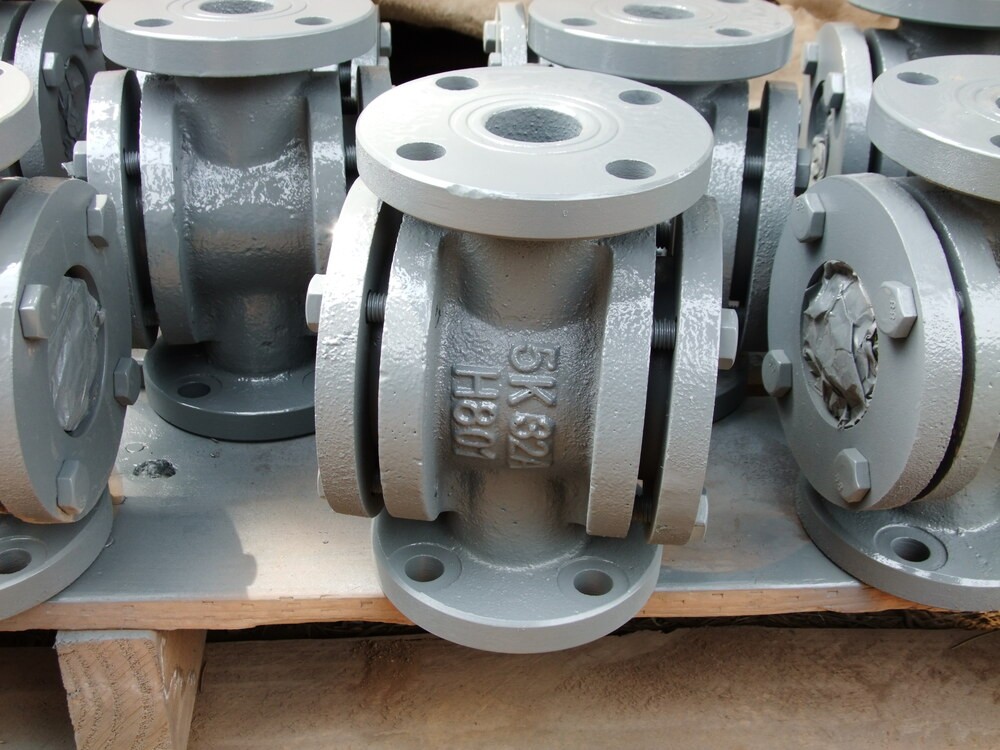

Marine Flat Sight Glass JIS F7234 5K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Flat Sight Glass JIS F7234 5K:

Design Standard: JIS F7234-1995

Test Standard: JIS 7400

Hydraulic Test Pressure: Body- 7.5kgs

Flange size as per JIS B2220 - 5K

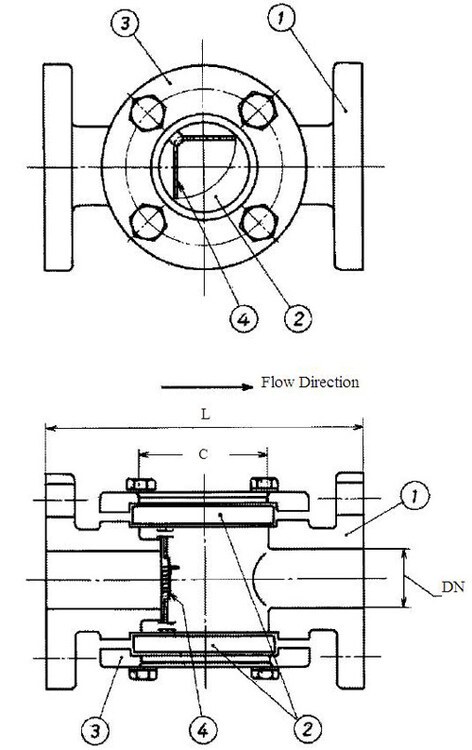

Main Material:

1-Body: Cast Iron (FC200 or FCD400,FCD450)

2-Flat Glass: tempered glass

3-Cover: Cast Iron (FC200 or FCD400,FCD450)

4-Flapper: Stainless Steel ( SUS304)

Main Size List(mm):

Series DN
15 20 25 32 40 50 65 80 100
Series A L 150 150 170 200 200 220 250 270 320
C 40 40 50 70 70 80 100 120 150
Series B L 140 150 160 200 200 220 250 270 320
C 40 50 50 60 60 65 80 102 125
Series C L 150 150 150 180 180 190 240 260 300
C 42 42 42 62 62 70 105 120 145
