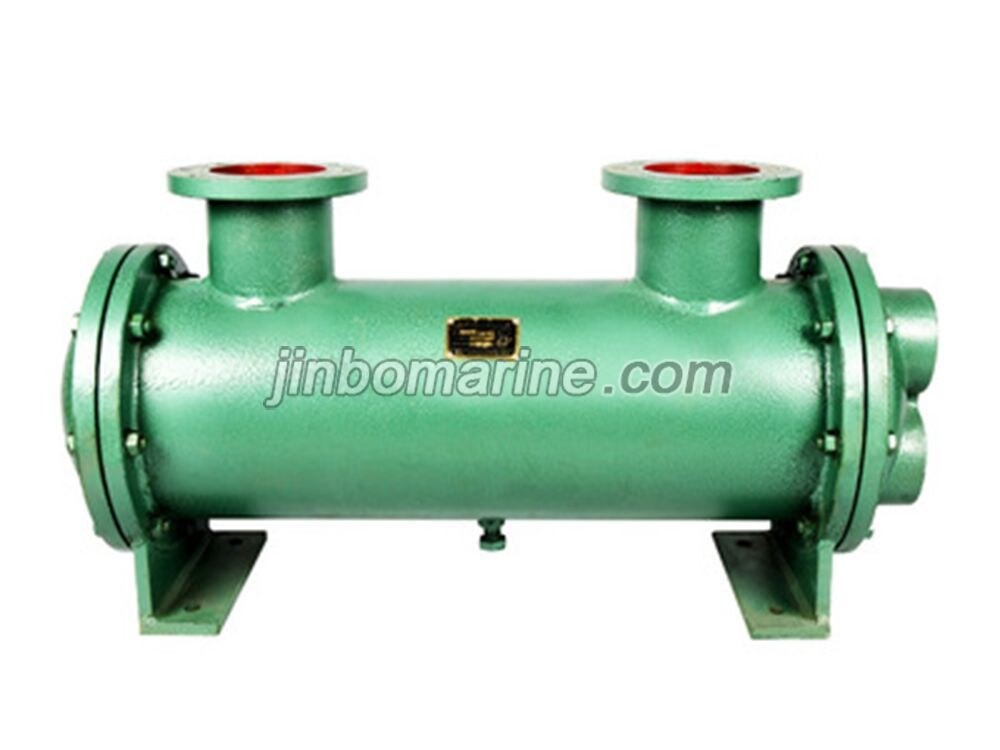

Marine K800-K1800 Heat Exchanger
- Category:Heat Exchanger
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine K800-K1800 Heat Exchanger:

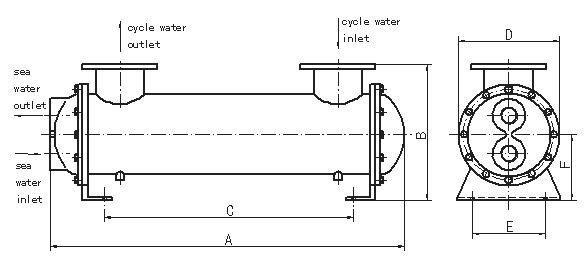

| PARAMETER\TYPE | A | B | C | D | E | F | DIAMETER | DIAMETER | AREA OF | SCOPE |
| OF FRESH | OF SEA | COOLING m2 | APPLICABLE | |||||||
| mm | mm | mm | mm | mm | mm | WATER | WATER | (FOR REFERENCE) | ||
| K1800 | 1495 | 465 | 1137 | 346 | 250 | 225 | 6" | G3" | 11.8 | 1600-1800 HP diesel engine |
| K1600 | 1223 | 465 | 850 | 346 | 250 | 225 | 6" | G3" | 9.2 | 1200-1600 HP diesel engine |
| K1300 | 1145 | 395 | 850 | 280 | 150 | 192 | 4" | G21/2" | 5.8 | 1000-1300 HP diesel engine |
| K1000 | 898 | 395 | 650 | 280 | 150 | 192 | 4" | G21/2" | 4.23 | 800-1000 HP diesel engine |
| K800 | 758 | 395 | 510 | 280 | 150 | 192 | 4" | G21/2" | 3.44 | 600-800 HP diesel engine |
