Marine Male Thread Bronze Angle Liquid Safety Valve CB907-94

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

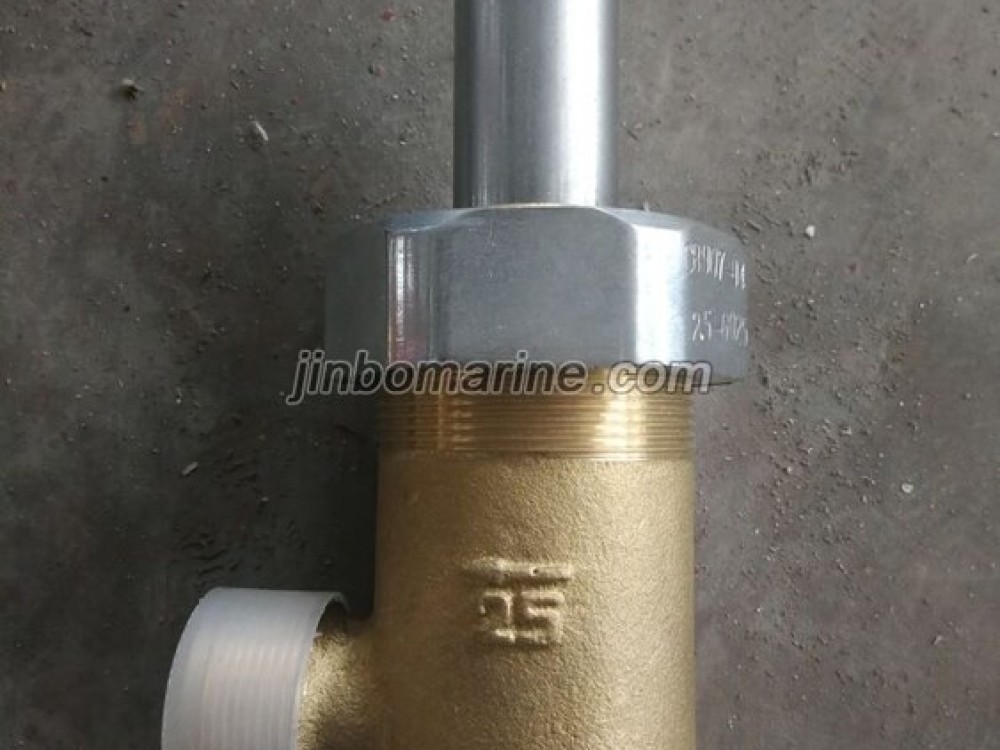

China Marine Male Thread Bronze Angle Liquid Safety Valve CB907-94:

Marine Bronze Angle Liquid Safety Valvewith male thread is used on the pipe system & the pressure containers with the medium: sea water, fresh water, fuel oil, lubrication oil.

Design Standard: CB907-94

Test Standard: CB3021-94

Thread size as per CB56-83, CB821-84

Main Parts & Material:

Body-Bronze

Bonnet-Bronze

Disc-Bronze

Spring-Spring Steel Wire

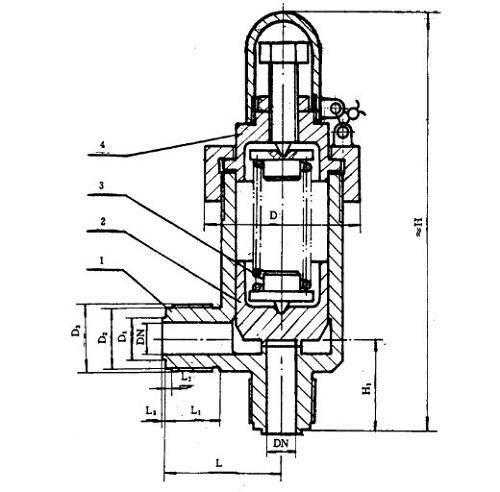

Main Size List(mm):

nominal
pressure 		nominal
diameter 		structure dimension flange connection dimension weight
(kg)
L D H1 H D1 D2 D3 L1 L2 L3
0.1~0.25 10 40 55 30 138 13 19.8 M22×1.5 17 2 2 1.3
>0.25~0.6 40 55 30 138 13 19.8 M22×1.5 17 2 2
>0.6~0.9 40 55 30 138 13 19.8 M22×1.5 17 2 2
>0.9~1.2 40 55 30 140 13 19.8 M22×1.5 17 2 2
>1.2~1.6 40 55 30 140 13 19.8 M22×1.5 17 2 2
>1.6~2.5 42 55 34 146 14 24.8 M27×1.5 19 3 3
>2.5~3.2 42 55 34 149 14 24.8 M27×1.5 19 3 3
0.1~0.25 15 48 58 40 148 19 27 M30×2 23 3 2 1.5
>0.25~0.6 48 58 40 148 19 27 M30×2 23 3 2
>0.6~0.9 48 58 40 148 19 27 M30×2 23 3 2
>0.9~1.2 48 58 40 155 19 27 M30×2 23 3 2
>1.2~1.6 48 58 40 155 19 27 M30×2 23 3 2
>1.6~2.5 50 58 45 162 22 33 M36×2 26 5 3
>2.5~3.2 50 58 45 162 22 33 M36×2 26 5 3
0.1~0.25 20 55 72 44 170 24 33 M36×2 23 3 2 2.4
>0.25~0.6 55 72 44 170 24 33 M36×2 23 3 2
>0.6~0.9 55 72 44 170 24 33 M36×2 23 3 2
>0.9~1.2 55 72 44 170 24 33 M36×2 23 3 2
>1.2~1.6 55 72 44 170 24 33 M36×2 23 3 2
>1.6~2.5 60 72 48 176 25 36 M39×2 27 5 3
>2.5~3.2 60 72 48 186 25 36 M39×2 27 5 3
0.1~0.25 25 60 80 46 190 29 39 M42×2 24 3 2 4.5
>0.25~0.6 60 80 46 190 29 39 M42×2 24 3 2
>0.6~0.9 60 80 46 190 29 39 M42×2 24 3 2
>0.9~1.2 60 80 46 190 29 39 M42×2 24 3 2
>1.2~1.6 60 80 46 197 29 39 M42×2 24 3 2
>1.6~2.5 67 80 55 203 32 45 M48×2 30 6 3
>2.5~3.2 67 80 55 210 32 45 M48×2 30 6 3
