Marine Steel Quick Acting Watertight Door
- Category:Marine Door
- Material:Steel
- Standards:CB/T3477-1996 for reference
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

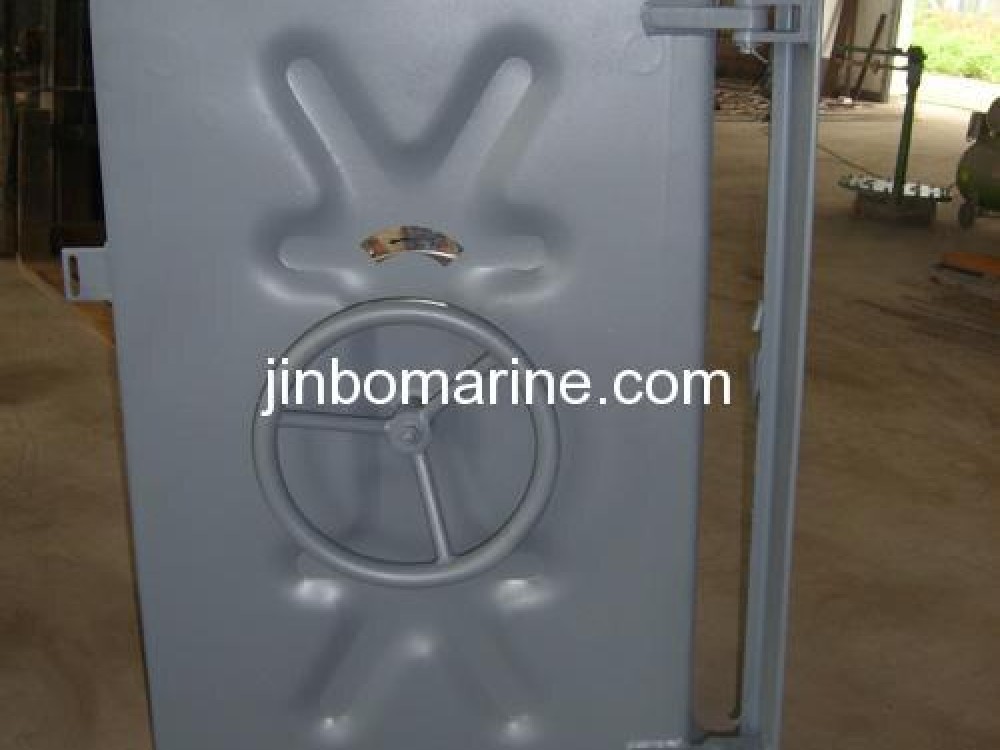

China Marine Steel Quick Acting Watertight Door:
Standard: GB/T3477-1996 for reference
Marine Steel Quick Acting Watertight Door with hand wheel is used for upper structure of ship and constructions on land, drilling platform and basement.It can be opened and closed quickly and lightly, meet the requirements of International Load Line Convention 1966, the water pressure that can bear is 0.05Mpa to 0.15Mpa.
Main Material:
Door frame: Steel
Door Leaf: Steel
Handwheel: Carbon Steel or Stainless Steel

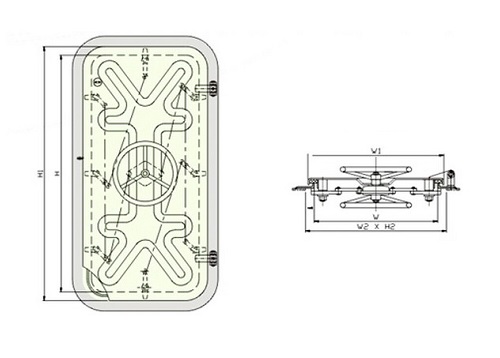

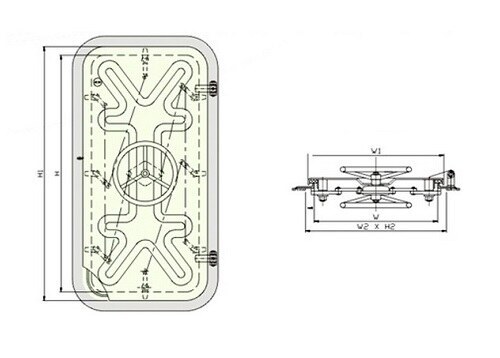

Main Size List(mm):
|
Size of Doorway
|
Size of Door | Opening Size of Wall | Thickness of Door | Weight |
| 1200x600 | 1245x645 | 1280x680 R140 | 8 | 142 |
| 1400x600 | 1445x645 | 1480x680 R140 | 8 | 154 |
| 1400x600 | 1445x645 | 1480x680 R140 | 10 | 165 |
| 1400x700 | 1445x745 | 1480x780 R140 | 8 | 177 |
| 1400x700 | 1445x745 | 1480x780 R140 | 10 | 185 |
| 1500x600 | 1545x645 | 1580x680 R140 | 8 | 162 |
| 1500x600 | 1545x645 | 1580x680 R140 | 10 | 172 |
| 1500x700 | 1545x745 | 1580x780 R140 | 8 | 187 |
| 1500x700 | 1545x745 | 1580x780 R140 | 10 | 195 |
| 1500x800 | 1545x845 | 1580x880 R140 | 8 | 205 |
| 1500x800 | 1545x845 | 1580x880 R140 | 10 | 221 |
| 1600x600 | 1645x645 | 1680x680 R140 | 8 | 173 |
| 1600x600 | 1645x645 | 1680x680 R140 | 10 | 181 |
| 1600x700 | 1645x745 | 1680x780 R140 | 8 | 194 |
| 1600x700 | 1645x745 | 1680x780 R140 | 10 | 207 |
| 1600x800 | 1645x845 | 1680x880 R140 | 8 | 211 |
| 1600x800 | 1645x845 | 1680x880 R140 | 10 | 238 |
| The size also can be customerized. | ||||
