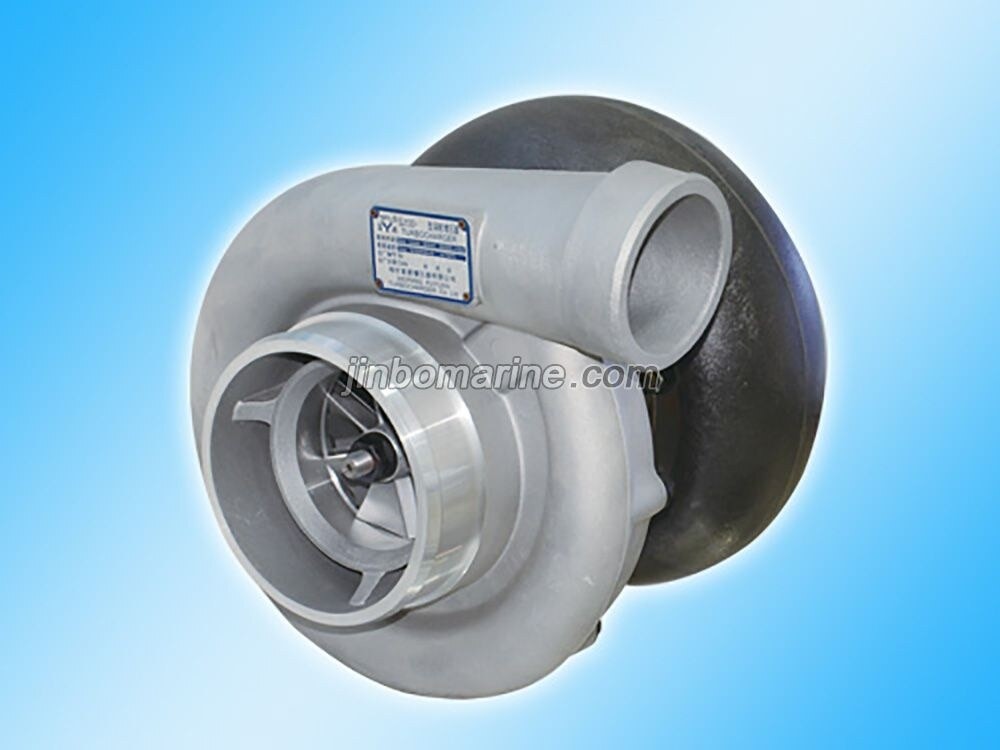

China SJ130 Series Marine Turbocharger:
SJ130 series is mainly used in generator and marine engine with the max matched power up to 550kw. Multiple combination can meet engine’s high power requirement. The performance has been continuously improved through years of application in market.
Product features
1. Good match of compressor and turbine ensure the optimization of flow, efficiency and pressure ratio, etc.
2. Wide flow, high efficiency, high pressure ratio compress and symmetric double channel turbine housing can meet higher matching requirement.
3. Waste-gate design can be selected to meet the requirement of low speed torque and performance of marine engine.
SJ130 Series Marine Turbocharger Technical Specifications
| Turbo models | SJ130-1 | SJ130-2 | SJ130-3 | |
| Rate speed | r/min | 79000 | 68000 | 65000 |
| Max speed | r/min | 82000 | 71000 | 68000 |
| Pressure ratio | 3.6 | 3.6 | 3.6 | |
| Air flow | kg/s | 0.2~0.8 | 0.3~0.9 | 0.4~1.0 |
| Turbine inlet Temperature | ℃ | 650 | ||
| Applied engine | Diesel engine,Gas engine,Dual full engine | |||
| Displacement | L | 12~20 | ||
| Engine power | KW | 300~550 | ||
| Application | Marine,Generator,Engineering machinery | |||
