Type SR SPEK Ancor
- Category:Marine Stockless Anchor
- Material:Casting Steel
- Standards:GBT-548-1996
- Certificate:ABS, LR, BV, DNV, GL, RINA, NK, KR, RS, IRS, CCS
- Delivery Time:30 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

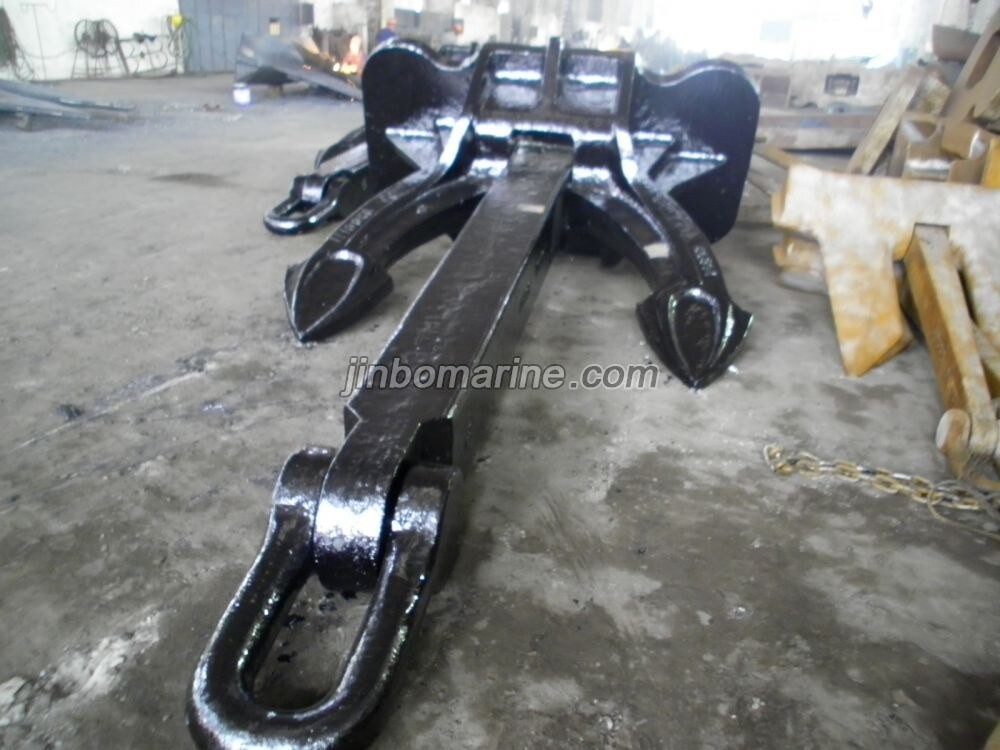

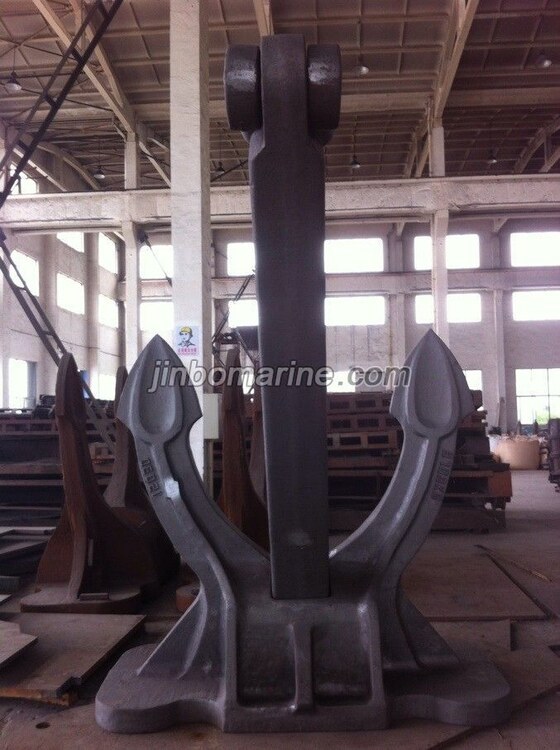

China Type SR SPEK Ancor:
Type SR SPEK Anchors is the improved anchor with lower point of gravity based on hall anchor, Anchor fluke grounded easily, more stability, when SPEK Anchor haul up, anchor fluke will turn over against the hull, which would not make damage to ship hull.
SPEK Anchors Specification:
Material: Casting Steel
Weight: 80KGS to 20000KGS
Class Certificate: ABS, LR, BV, DNV, GL, NK, KR, IRS and CCS
|

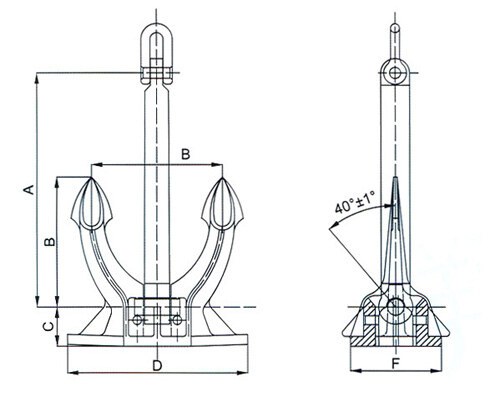

Nominal
Weight (KG) |
Size(mm) | |||
| A | B | B1 | F | |
| 210 | 810 | 500 | 340 | 690 |
| 240 | 810 | 500 | 340 | 690 |
| 300 | 980 | 550 | 390 | 760 |
| 360 | 970 | 600 | 412 | 828 |
| 420 | 970 | 600 | 412 | 828 |
| 450 | 970 | 600 | 412 | 828 |
| 480 | 1050 | 650 | 442 | 900 |
| 570 | 1050 | 650 | 442 | 900 |
| 610 | 1134 | 700 | 472 | 962 |
| 660 | 1134 | 700 | 472 | 962 |
| 750 | 1215 | 750 | 508 | 1032 |
| 780 | 1215 | 7850 | 519 | 1032 |
| 900 | 1296 | 800 | 547 | 1100 |
| 980 | 1296 | 800 | 547 | 1100 |
| 1020 | 1377 | 850 | 573 | 1170 |
| 1040 | 1458 | 900 | 591 | 1240 |
| 1100 | 1458 | 900 | 620 | 1240 |
| 1200 | 1539 | 950 | 640 | 1300 |
| 1300 | 1539 | 950 | 640 | 1300 |
| 1400 | 1539 | 950 | 671 | 1300 |
| 1500 | 1539 | 950 | 671 | 1300 |
| 1650 | 1620 | 1000 | 669 | 1378 |
| 1800 | 1700 | 1050 | 704 | 1454 |
| 1920 | 1700 | 1050 | 717 | 1454 |
| 2100 | 1700 | 1050 | 736 | 1454 |
| 2190 | 1700 | 1050 | 736 | 1454 |
| 2280 | 1782 | 1100 | 764 | 1454 |
| 2460 | 1863 | 1150 | 794 | 1584 |
| 2640 | 1863 | 1150 | 804 | 1584 |
| 2850 | 1944 | 1200 | 812 | 1650 |
| 3300 | 1944 | 1200 | 834 | 1650 |
| 3540 | 1944 | 1200 | 834 | 1650 |
| 3780 | 2187 | 1350 | 880 | 1850 |
| 4050 | 2187 | 1350 | 914 | 1850 |
| 4320 | 2268 | 1400 | 917 | 1926 |
| 4590 | 2268 | 1400 | 931 | 1926 |
| 4890 | 2268 | 1400 | 954 | 1926 |
| 5250 | 2349 | 1450 | 964 | 2000 |
| 5610 | 2349 | 1450 | 981 | 2000 |
| 5800 | 2430 | 1500 | 1006 | 2060 |
| 6000 | 2430 | 1500 | 1006 | 2060 |
| 6450 | 2430 | 1500 | 1023 | 2060 |
| 6900 | 2510 | 1550 | 1034 | 2138 |
| 7350 | 2510 | 1550 | 1062 | 2138 |
| 7800 | 2510 | 1550 | 1091 | 2138 |
| 8000 | 2510 | 1550 | 1091 | 2138 |
| 8300 | 2754 | 1700 | 1125 | 2332 |
| 8700 | 2754 | 1700 | 1166 | 2332 |
| 9300 | 2754 | 1700 | 1188 | 2332 |
| 9900 | 2754 | 1700 | 1188 | 2332 |
| 10500 | 2867 | 1770 | 1197 | 2440 |
| 11100 | 2867 | 1770 | 1212 | 2440 |
| 11700 | 2867 | 1770 | 1237 | 2440 |
| 12300 | 3094 | 1910 | 1260 | 2632 |
| 12900 | 3094 | 1910 | 1260 | 2632 |
| 13500 | 3094 | 1910 | 1316 | 2632 |
| 14700 | 3321 | 2050 | 1369 | 2824 |
| 16900 | 3434 | 2120 | 1415 | 2922 |
| 18800 | 3548 | 2190 | 1461 | 3018 |
| 20000 | 3548 | 2190 | 1493 | 3018 |
