US Navy Stockless Anchor
- Category:Marine Stockless Anchor
- Material:Casting Steel
- Standards:GBT-548-1996
- Certificate:ABS, LR, BV, DNV, GL, RINA, NK, KR, RS, IRS, CCS
- Supply Ability:30days
- Delivery Time:30 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China US Navy Stockless Anchor:
US Navy Stockless is Navy standard stockless anchor, long fluke, made of casting.
U.S Navy Stockless Anchor
U.S Navy Stockless Anchors is available from 300KGS to 30000KGS, reliable stockless manufactures in China.
All US navy anchors stockless could be supplied with Classification Certificate, such as LR, ABS, BV, GL, DNV, KR, NK, IRS and CCS Certificate, please specify if you requrie.
We can delivery the anchors to your door if you required(DAP or DAT terms)
U.S.N. STockless Anchor Specification:
Material: Casting Steel
Weight: 300KGS to 30000KGS
Class Certificate: ABS, LR, BV, DNV, GL, NK, KR, IRS and CCS
|

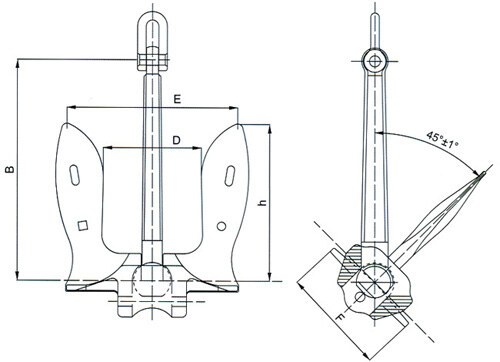

Weight/Mass (KG) |
Size(mm) | |||||
| B | C | D | E | F | h | |
| 300KGS | 727 | 635 | 319 | 562 | 348 | 510 |
| 400KGS | 800 | 699 | 351 | 619 | 364 | 570 |
| 500KGS | 863 | 753 | 379 | 666 | 412 | 614 |
| 600KGS | 914 | 800 | 402 | 708 | 438 | 652 |
| 750KGS | 984 | 842 | 423 | 763 | 461 | 684 |
| 800KGS | 1008 | 880 | 443 | 778 | 483 | 710 |
| 1000KGS | 1071 | 948 | 477 | 839 | 520 | 773 |
| 1200KGS | 1152 | 1008 | 507 | 892 | 532 | 822 |
| 1300KGS | 1184 | 1035 | 521 | 926 | 567 | 844 |
| 1500KGS | 1244 | 1086 | 546 | 962 | 596 | 883 |
| 1800KGS | 1320 | 1154 | 580 | 1021 | 632 | 941 |
| 2000KGS | 1371 | 1195 | 601 | 1058 | 655 | 975 |
| 2200KGS | 1412 | 1234 | 521 | 1092 | 676 | 1005 |
| 2500KGS | 1473 | 1284 | 648 | 1139 | 706 | 1050 |
| 3000KGS | 1564 | 1398 | 704 | 1270 | 775 | 1050 |
| 3500KGS | 1641 | 1440 | 725 | 1275 | 790 | 1175 |
| 4000KGS | 1724 | 1506 | 758 | 1333 | 826 | 1228 |
| 5000KGS | 1884 | 1622 | 816 | 1436 | 889 | 1323 |
| 6000KGS | 1974 | 1724 | 867 | 1528 | 947 | 1403 |
| 7000KGS | 2082 | 1815 | 913 | 1606 | 996 | 1480 |
| 8000KGS | 2171 | 1897 | 955 | 1679 | 1040 | 1547 |
| 9000KGS | 2257 | 1973 | 993 | 1747 | 1082 | 1609 |
| 10000KGS | 2336 | 2044 | 1028 | 1809 | 1120 | 1667 |
| 11000KGS | 2413 | 2110 | 1062 | 1868 | 1158 | 1721 |
| 12000KGS | 2486 | 2172 | 1093 | 1924 | 1193 | 1771 |
| 13000KGS | 2540 | 2231 | 1122 | 1965 | 1194 | 1819 |
| 14500KGS | 2641 | 2313 | 1144 | 2047 | 1270 | 1887 |
| 15000KGS | 2679 | 2340 | 1177 | 2089 | 1295 | 1908 |
| 16000KGS | 2935 | 2390 | 1203 | 2116 | 1311 | 1950 |
| 18000KGS | 2844 | 2486 | 1251 | 2200 | 1365 | 2028 |
| 20000KGS | 2946 | 2575 | 1296 | 2280 | 1412 | 2100 |
| 22500KGS | 3060 | 2689 | 1345 | 2370 | 1463 | 2134 |
| 25000KGS | 3174 | 2774 | 1396 | 2456 | 1521 | 2262 |
| 30000KGS | 3371 | 2949 | 1483 | 2628 | 1631 | 2404 |
