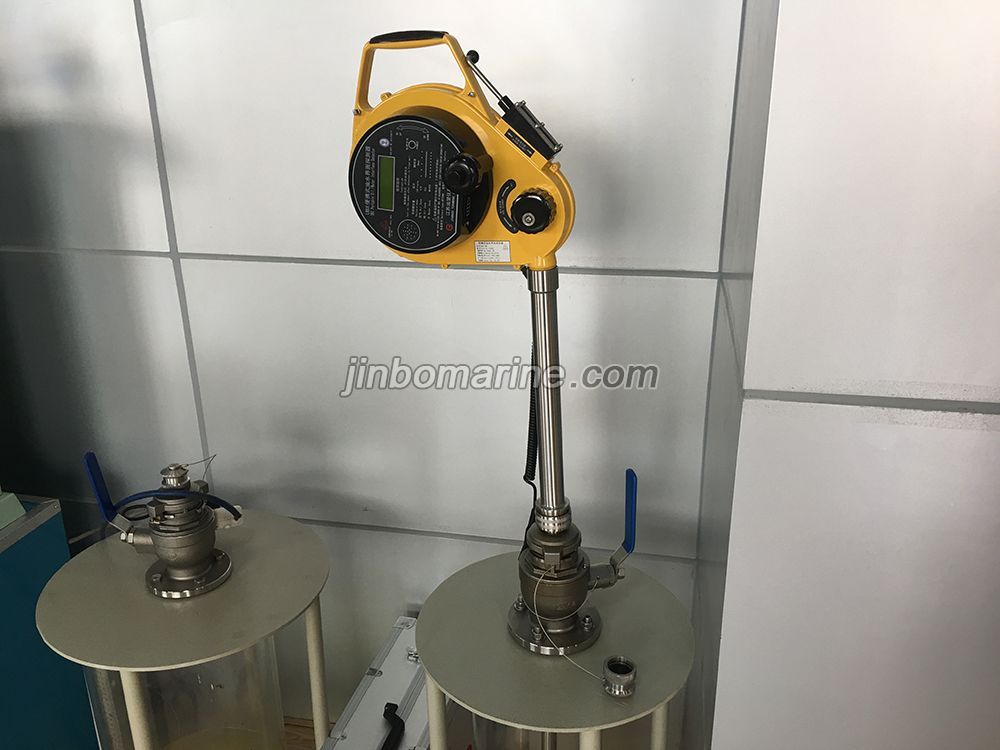

UBX Type Portable Oil-Water Interface Detector

Interface detection accuracy: ±20mm

Tape length:15meter , 30 meter

Tape system: metric , british

Tape resolution: 1mm

Tape accuracy:±3mm / 30 m

Minimum detection level: 4mm

Display mode: LED text and sound

Temperature accuracy:±0.5% F.S.

Temperature resolution: 1℃

Power voltage: DC9V (battery)

Ambient temperature: -25 to 55 ℃

Probe temperature: -25 to 110 ℃

Ex.mark: Ex ia II BT4Ga

Protection class: IP44(sensor IPX8)

Certificate approval: EC and CCS

Connection size:2" deck valve 1" quick connector

Applicable medium: water,oil and chemical.

100% repeatability.

Readble continuous temperature.

High accuracy and stability.

Easy changing battery.

No need to recalculate after changing probe.

Light weight, easy to carry.

Long time steady temperature no easy to aging.

Multi-adaptor can be connected with different deck valve.

Tape cleaning device, window wiper and tape protector.

Modular design, easy to maintenance.

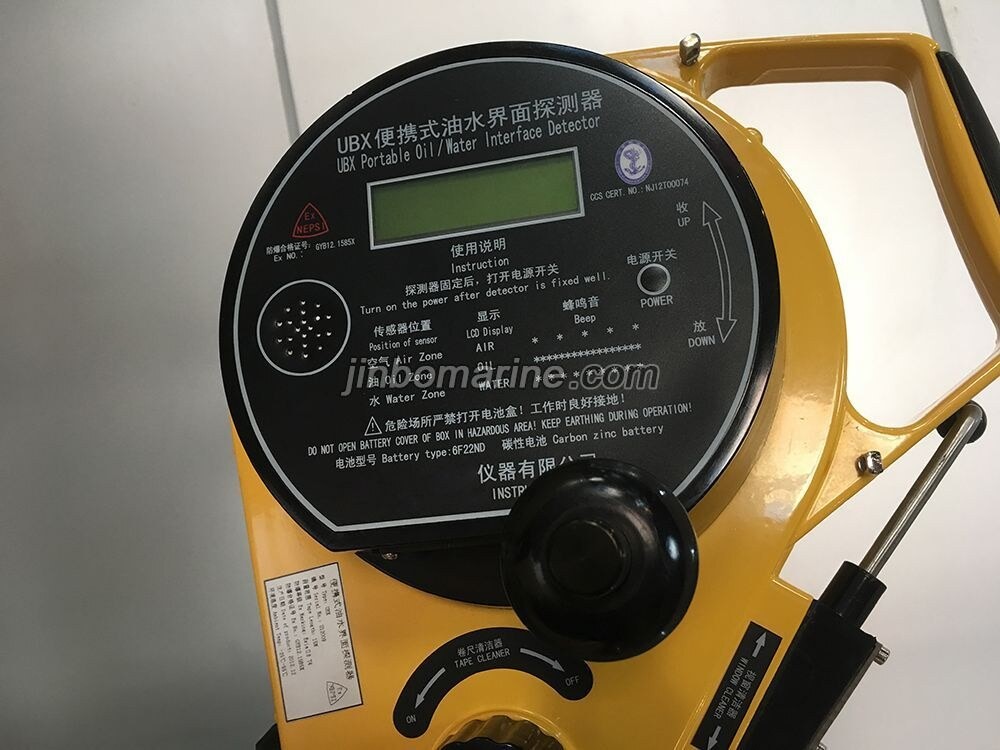

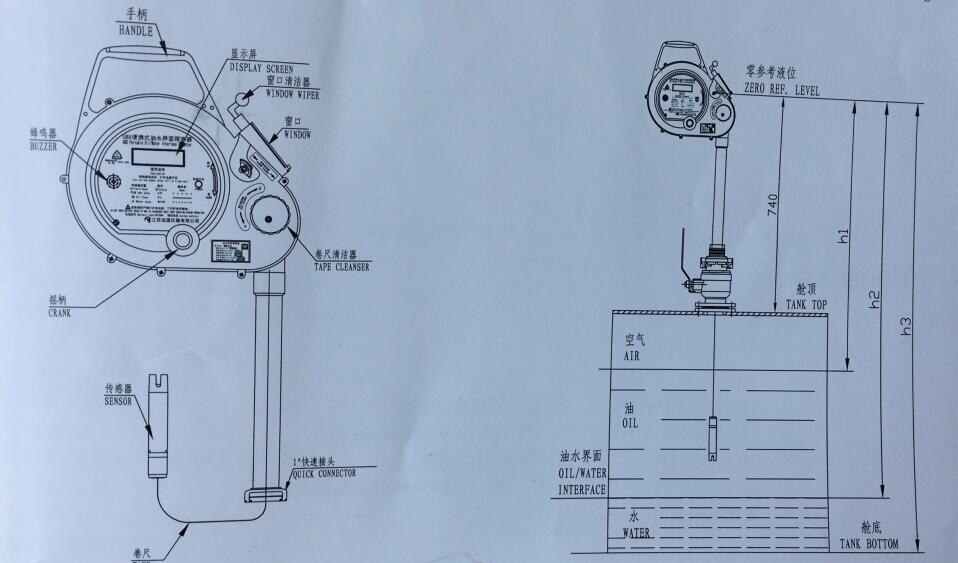

UBX type portable oil and water interface detector is composed of detecting sensor, casing, steel tape, display unit etc.

A special sensor detecting medium of oil ,water and air is put into the liquid tank. The different data will be transmitted to the process module by the communication cable as soon as the sensor located in different medium of air, oil or water.

This different data is processed in the module and then activated the buzzer by different ringing signal, therefore the different medium can be identified.At the same time ,the LCD display screen shows the letter of air,oil and water. The surveyor then reads out and records the reading from the reading port of stell tape as soon as the buzzer sounds. After that further put down the sensor, read out and record the reading when the buzzer sounds again. The difference between two readings is just the height of the mdeium(oily layer or water layer).
