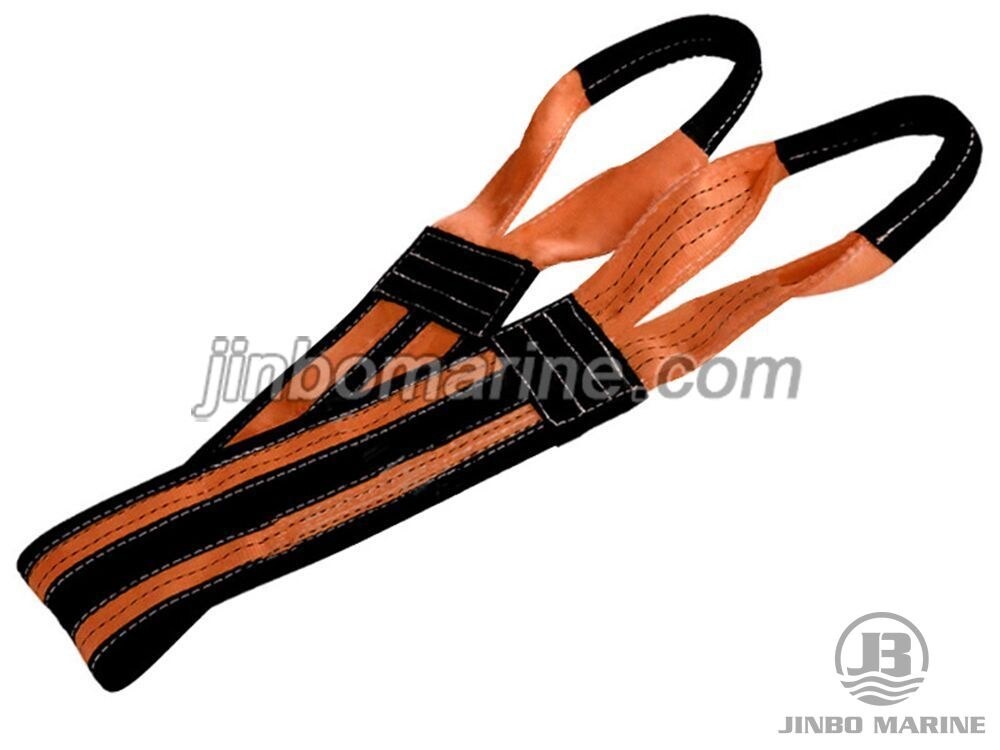

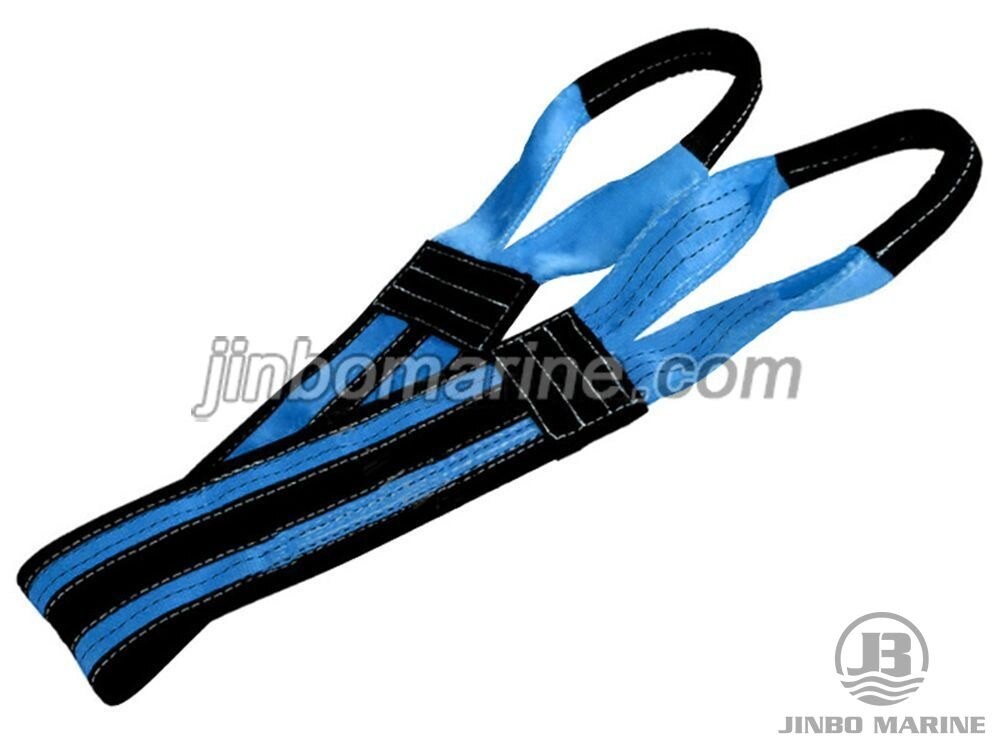

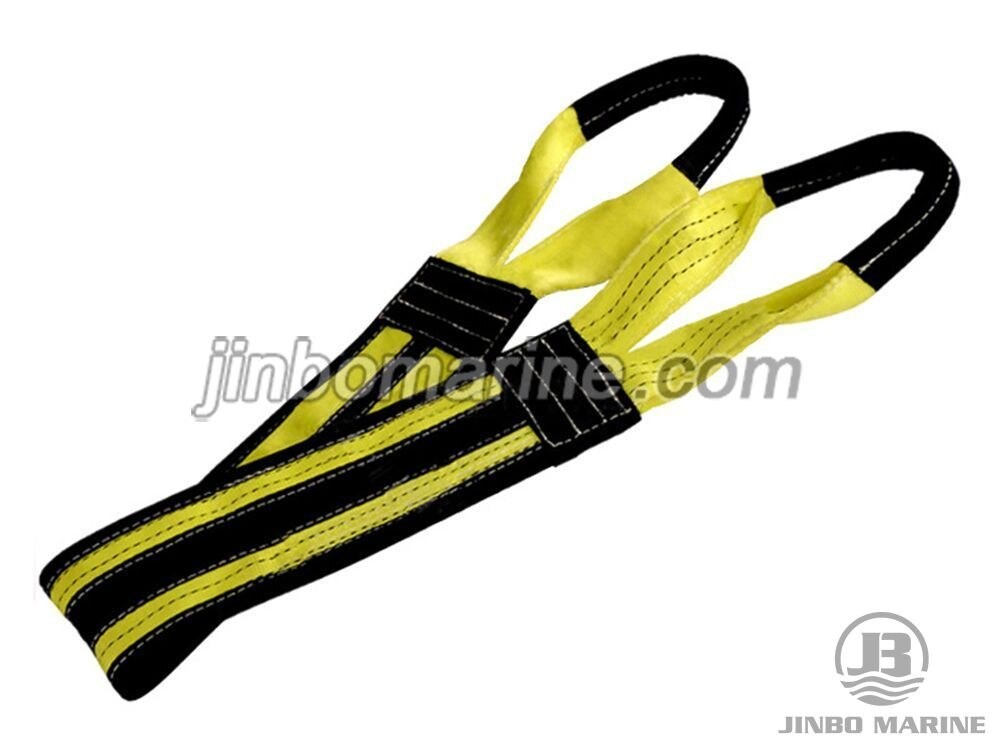

W04 Wide Body Type Flat Sling

  • Category:Chain Sling
  • Material:Cotton, nylon, synthetic fiber, polyester fiber
  • Standards:JB/T8521.1-2007
  • Certificate:CNAS, API, CCS, DNV.GL, KR, BV, CE, PCT.GOST, JIS, GS
  • Packing Details:Carton and composite pallet
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

Use range:

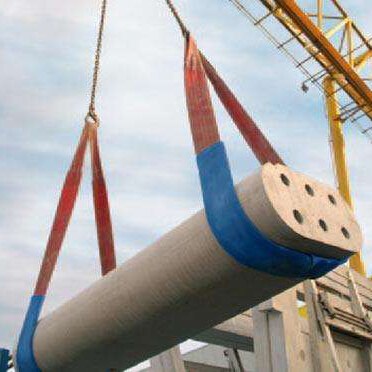

Applicable to oil pipelines, large-diameter thin-walled pipes and finished products.
Balanced and smooth during the lifting process.

Good wear resistance, can add wear-resistant coating in whole or in part.

Requirements:

When using a flat sling with a soft lifting lug, the minimum length of the lifting lug should not be less than 3.5 times and the maximum thickness of the hook in the contact part of the lug, and the angle of the lifting lug should not exceed 20°. When connecting slings and lifting gears with soft lifting lugs, the contact parts of the slings and lifting gears must be constant, unless the axial width of the slings does not exceed 75 mm, the bending radius of the lifting attachments must be at least slings 0.75 times the axial width.

Art.No. Working Load Limit(kg) Approx Width(mm) Minimum Length Eye Length
5:01 (mm) (kg/m)
W05-01 1000 50 1.2 350
W05-02 2000 100 1.3 400
W05-03 3000 150 1.4 450
W05-04 4000 200 1.8 500
W05-05 5000 250 2 550
W05-06 6000 300 2.3 600
W05-08 8000 200 2.3 500
W05-10 10000 250 2.3 550
W05-12 12000 300 2.4 600
