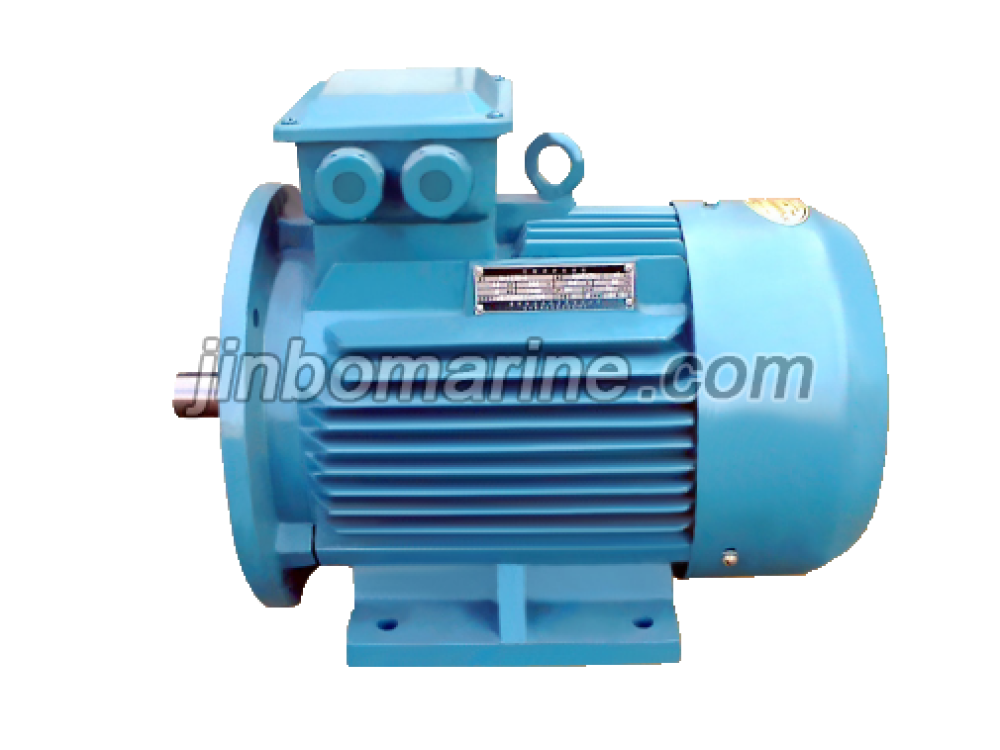

YE2 Series Three-Phase Asynchronous Motor

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Introduction

Frame number: Frame 80 ～ 355

Output： 0.75 ～ 375kW

Duty： S1

Cooling： IC411

Synchronous speed: 3000, 1500, 1000r/min

Rated voltage and frequency: 380v, 50Hz

Efficiency level 3 (China GB18613-2012), Grade 3

Application

Energy saving applications where continuous of frequent duty is required.Such as blowers,pumps,etc.

Features

These series motors have many virtues,including beautiful profile,high efficiency and energy saving ,insulation class F,the protective class is IP55,motor runs with low noise,little vibration and high reliability.

Technical Data 380V 50Hz
Type Output kW r/min Eff. % P.F Tst Tn Tst In Tax Tn dB (A)
Synchronous speed 3000r/min
YE2-80M1-2 0.75 2825 77.4 0.82 2.3 6.8 2.3 62
YE2-80M2-2 1.1 2825 79.6 0.83 2.3 7.1 2.3 62
YE2-90S-2 1.5 2850 81.3 0.84 2.3 7.3 2.3 67
YE2-90L-2 2.2 2850 83.2 0.85 2.3 7.6 2.3 67
YE2-100L-2 3 2890 84.6 0.87 2.2 7.8 2.3 74
YE2-112M-2 4 2890 85.8 0.88 2.2 8.1 2.3 77
YE2-132S1-2 5.5 2900 87.0 0.88 2.2 8.2 2.3 79
YE2-132S2-2 7.5 2900 88.1 0.89 2.2 7.8 2.3 79
YE2-160M1-2 11 2930 89.4 0.89 2.2 7.9 2.3 81
YE2-160M2-2 15 2930 90.3 0.89 2.2 7.9 2.3 81
YE2-160L-2 18.5 2930 90.9 0.89 2.2 8.0 2.3 81
YE2-180M-2 22 2940 91.3 0.89 2.2 8.1 2.3 83
YE2-200L1-2 30 2955 92.0 0.89 2.0 7.5 2.3 84
YE2-200L2-2 37 2960 92.5 0.89 2.0 7.5 2.3 84
YE2-225M-2 45 2969 92.9 0.89 2.2 7.5 2.3 86
YE2-250M-2 55 2970 93.2 0.89 2.2 7.6 2.3 89
YE2-280S-2 75 2970 93.8 0.89 1.8 6.9 2.3 91
YE2-280M-2 90 2970 94.1 0.89 1.8 6.9 2.3 91
YE2-315S-2 110 2940 94.3 0.90 1.8 7.0 2.2 92
YE2-315M-2 132 2940 94.6 0.90 1.8 7.0 2.2 92
YE2-315L1-2 160 2940 94.8 0.91 1.8 7.1 2.2 92
YE2-315L2-2 200 2940 95.0 0.91 1.8 7.1 2.2 92
YE2-355M-2 250 2980 95.0 0.91 1.6 7.1 2.2 100
YE2-355L-2 315 2980 95.0 0.91 1.6 7.2 2.2 100
YE2-3551-2 355 2980 95.0 0.91 1.6 7.2 2.2 104
YE2-3552-2 375 2980 95.0 0.91 1.6 7.2 2.2 104

Technical Data 380V 50Hz
Type Output kW r/min Eff. % P.F Tst Tn Tst In Tax Tn dB (A)
Synchronous speed 1500r/min
YE2-80M-4 0.75 1390 79.6 0.76 2.3 6.4 2.3 56
YE2-90S-4 1.1 1390 81.4 0.77 2.3 6.6 2.3 59
YE2-90L-4 1.5 1390 82.8 0.78 2.3 6.7 2.3 59
YE2-100L1-4 2.2 1450 84.3 0.80 2.3 7.3 2.3 64
YE2-100L2-4 3 1450 85.5 0.81 2.3 7.5 2.3 64
YE2-112M-4 4 1440 86.6 0.81 2.3 7.5 2.3 65
YE2-132S-4 5.5 1440 87.7 0.82 2.0 7.5 2.3 71
YE2-132M-4 7.5 1440 88.7 0.83 2.0 7.3 2.3 71
YE2-160M-4 11 1460 89.8 0.83 2.0 7.4 2.3 73
YE2-160L-4 15 1460 90.6 0.84 2.0 7.5 2.3 73
YE2-180M-4 18.5 1470 91.2 0.85 2.0 7.6 2.3 76
YE2-180L-4 22 1470 91.6 0.85 2.1 7.7 2.3 76
YE2-200L-4 30 1476 92.3 0.85 2.1 7.1 2.3 76
YE2-225S-4 37 1481 92.7 0.86 2.1 7.3 2.3 78
YE2-225M-4 45 1480 93.1 0.86 2.1 7.3 2.3 78
YE2-250M-4 55 1480 93.5 0.86 2.1 7.4 2.3 79
YE2-280S-4 75 1480 94.0 0.87 2.1 6.8 2.3 80
YE2-280M-4 90 1480 94.2 0.88 2.1 6.9 2.3 80
YE2-315S-4 110 1463 94.5 0.89 2.1 6.9 2.2 88
YE2-315M-4 132 1463 94.7 0.89 2.1 6.9 2.2 88
YE2-315L1-4 160 1463 94.9 0.90 2.1 6.9 2.2 88
YE2-315L2-4 200 1463 95.1 0.90 2.1 6.9 2.2 88
YE2-355M-4 250 1485 95.1 0.90 2.0 6.9 2.2 95
YE2-355L-4 315 1485 95.1 0.90 2.0 6.9 2.2 95
YE2-3551-4 355 1485 95.1 0.89 1.7 6.5 2.2 102
YE2-3552-4 375 1485 95.1 0.88 1.7 6.5 2.2 102

Technical Data 380V 50Hz

Type

Output kW

r/min

Eff. %

P.F

Tst Tn

Tst In

Tax Tn

dB (A)

Synchronous speed 1000r/min
YE2-90S-6 0.75 910 75.9 0.71 2.0 5.8 2.1 57
YE2-90L-6 1.1 910 78.1 0.72 2.0 5.9 2.1 57
YE2-100L-6 1.5 950 79.8 0.72 2.0 5.9 2.1 61
YE2-112M-6 2.2 940 81.8 0.72 2.0 6.2 2.1 65
YE2-132S-6 3 960 83.3 0.72 2.0 6.4 2.1 69
YE2-132M1-6 4 960 84.6 0.74 2.0 6.6 2.1 69
YE2-132M2-6 5.5 960 86.0 0.75 2.0 6.8 2.1 69
YE2-160M-6 7.5 970 87.2 0.78 2.0 6.8 2.1 73
YE2-160L-6 11 970 88.7 0.79 2.0 6.9 2.1 73
YE2-180L-6 15 970 89.7 0.82 2.0 7.3 2.1 73
YE2-200L1-6 18.5 980 90.4 0.80 2.0 7.2 2.1 73
YE2-200L2-6 22 980 90.9 0.81 2.0 7.3 2.1 73
YE2-225M-6 30 985 91.7 0.82 2.0 6.8 2.1 74
YE2-250M-6 37 980 92.2 0.83 2.0 7.0 2.1 76
YE2-280S-6 45 980 92.7 0.85 2.0 7.2 2.0 78
YE2-280M-6 55 980 93.1 0.86 2.0 7.2 2.0 78
YE2-315S-6 75 970 93.7 0.84 2.0 6.5 2.0 83
YE2-315M-6 90 970 94.0 0.85 2.0 6.6 2.0 83
YE2-315L1-6 110 970 94.3 0.85 2.0 6.6 2.0 83
YE2-315L2-6 132 970 94.6 0.86 2.0 6.6 2.0 83
YE2-355M1-6 160 990 94.8 0.86 2.0 6.7 2.0 85
YE2-355M2-6 200 990 95.0 0.86 2.0 6.8 2.0 85
YE2-355L-6 250 990 95.0 0.86 2.0 6.8 — 85
YE2-355-6 315 990 95.0 0.86

Conventional mounting type and suitable frame size are given in following table（with”√”)

Frame size Basic type Derived type
B3 B5 B35 VI V3 V5 V6 B6 B7 B8 V15 V36 B14 B34 V18
80 〜112 V V V V V V V V V V V V V V V
132 〜160 V V V V V V V V V V V V — — —
180 〜280 V V V V — — — — — — — — — — —
315 〜355 V — V V — — — — — — — — — — —

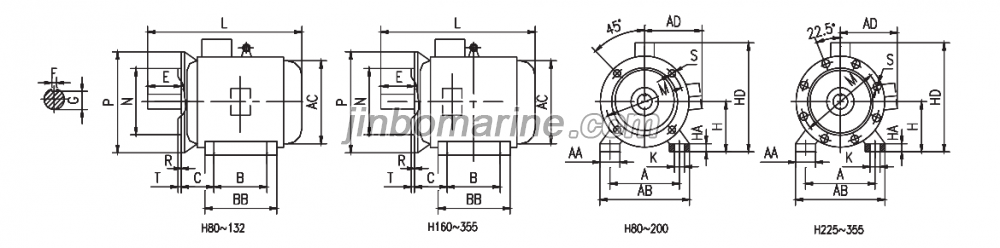

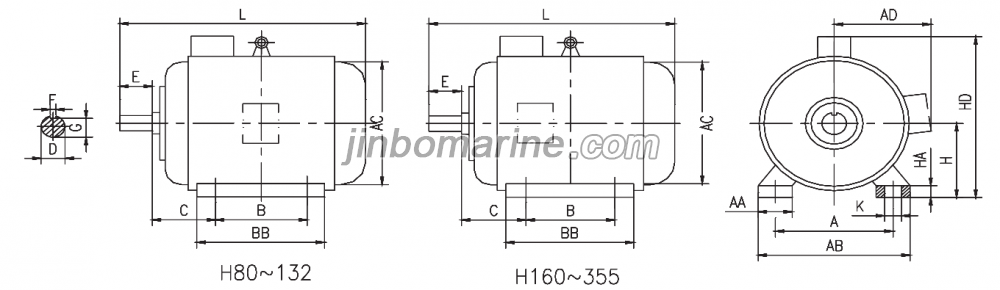

B3 The motor of frame with feet,end-shield without flange

Frame

Poles

Mounting Dimension

Over Dimension

A

B

C

D

E

F

G

H

K

AA

BB

HA

AB

AC

AD

HD

L

80M 2,4,6 125 100 50 19 40 6 15.5 80 10 34 130 10 165 165 140 220 295
90S 140 100 56 24 50 8 20 90 36 140 12 180 185 165 260 360
90L 125 165 390
100L 160 140 63 28 60 24 100 12 40 176 14 200 196 180 270 385
112M 190 70 112 45 180 15 230 240 190 300 420
132S 216 89 38 80 10 33 132 55 186 18 262 270 210 345 490
132M 178 224 540
160M 254 210 108 42 110 12 37 160 14.5 65 260 20 320 330 255 420 670
160L 254 304 700
180M 279 241 121 48 14 42.5 180 70 311 22 355 380 280 455 740
180L 279 349 790
200L 318 305 133 55 16 49 200 18.5 70 369 25 395 420 305 505 790
225S 4 356 286 149 60 140 18 53 225 75 375 28 435 470 335 560 830
225M 2 311 55 110 16 49 400 28 825
4,6 60 140 18 53 855
250M 2 406 349 168 60 140 18 53 250 24 80 445 30 490 510 370 615 915
4，6 65 58
280S 2 457 368 190 280 85 490 35 550 580 410 680 985
4，6 75 20 67.5
280M 2 419 65 18 58 540 1035
4，6 75 20 67.5
315S 2 508 406 216 65 18 58 315 28 120 570 45 635 645 530 845 1270
4，6 80 170 22 71
315M 2 457 65 140 18 58 680 1340
4，6 80 170 22 71
315L 2 508 65 140 18 58 680
4，6 80 170 22 71
355M 2 610 560 254 75 140 20 67.5 355 116 750 52 726 710 655 1010 1525
4，6 95 170 25 86
355L 2 630 75 140 20 67.5 750 1526

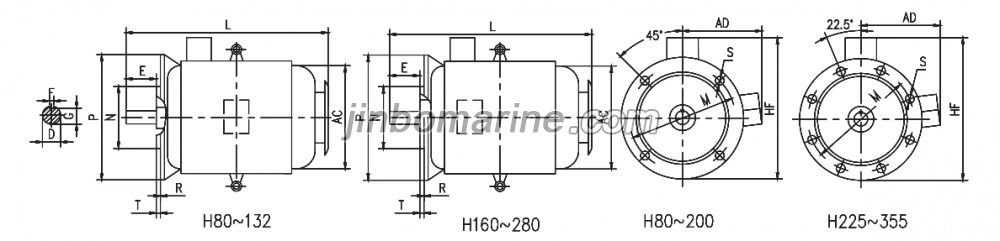

4，6 95 170 25 86

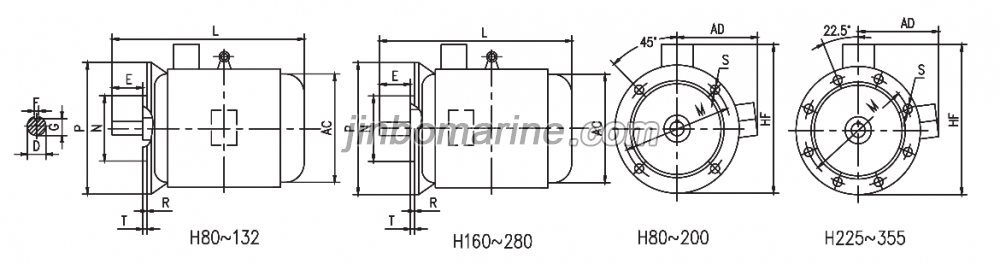

B5 The motor of frame without feet,end-shield with flange（with through holes）


Frame

Poles

Mounting Dimension

Over Dimension

D

E

F

G

M

N

P

R

S

T

AC

AD

HF

L

80M 2,4,6 19 40 6 15.5 165 130 200 0 4-Φ12 3.5 165 140 220 295
90S 24 50 8 20 185 165 360
90L 390
100L 28 60 24 215 180 250 4-Φ14.5 4 196 180 245 385
112M 240 190 265 420
132S 38 80 10 33 265 230 300 0 270 210 315 490
132M 540
160M 42 110 12 37 300 250 350 0 4-Φ18.5 5 330 255 385 670
160L 700
180M 48 14 42.5 380 280 430 740
180L 790
200L 55 16 49 350 300 400 0 420 305 480 790
225S 4 60 140 18 53 400 350 450 0 8-Φ18.5 470 335 535 830
225M 2 55 110 16 49 825
4,6 60 140 18 53 855
250M 2 500 450 550 0 510 370 595 915
4,6 65 58 580 410 650 985
280S 2
4,6 75 20 67.5 10.5
280M 2 65 18 58
4,6 75 20 67.5

B35 The motor of frame with feet,end-shield with flange（with through holes）

Frame

Poles

Mounting Dimension

Over Dimension

A

B

C

D

E

F

G

H

K

M

N

P

R

S

T

AA

BB

HA

AB

AC

AD

HD

L

80M 2,4,6 125 100 50 19 40 6 15.5 80 10 165 130 200 0 4-Φ12 3.5 34 130 10 165 165 140 220 295
90S 140 56 24 50 8 20 90 36 140 12 180 185 165 260 360
90L 125 165 390
100L 160 140 63 28 60 24 100 12 215 180 250 0 4-Φ45 4 40 176 14 200 196 180 270 385
112M 190 70 112 45 180 15 230 240 190 300 420
132S 216 89 38 80 10 33 132 265 230 300 55 186 18 262 270 210 345 490
132M 178 224 540
160M 254 210 108 42 110 12 37 160 15 300 250 350 0 4-Φ18 5 5 65 260 20 320 330 255 420 670
160L 254 304 700
180M 279 241 121 48 14 42.5 180 70 311 22 355 380 280 455 740
180L 279 349 790
200L 318 305 133 55 16 49 200 19 350 300 400 70 379 25 395 420 305 505 790
225S 4 356 286 149 60 140 18 53 225 400 350 450 0 8-Φ185 75 375 28 435 470 335 560 830
225M 2 311 55 110 16 49 400 825
4，6 60 140 18 53 855
250M 2 406 349 168 250 24 500 450 550 80 445 30 490 510 370 615 915
4，6 65 58
280S 2 457 368 190 280 85 485 35 550 580 410 680 985
4，6 75 20 67.5
280M 2 419 65 18 58 536 1035
4，6 75 20 67.5
315S 2 508 406 216 65 18 58 315 28 600 550 660 8-Φ24 6 120 570 45 635 645 530 845 1270
4，6 80 170 22 71
315M 2 457 65 140 18 58 680 1340
4，6 80 170 22 71
315L 2 508 65 140 18 58 680
4，6 80 170 22 71
355M 2 610 560 254 75 140 20 67.5 355 740 680 800 116 750 52 726 710 655 1010 1525
4，6 95 170 25 86
355L 2 630 75 140 20 67.5
4，6 95 170 25 86

V1 The motor of frame without feet,end-shield with flange（with through holes）


Frame

Poles

Mounting Dimension

Over Dimension

D

E

F

G

M

N

P

R

S

T

AC

AD

HF

L

80M 2,4,6 19 40 6 15.5 165 130 200 0 4-Φ12 3.5 165 140 220 335
90S 24 50 8 20 185 165 365
90L 400
100L 28 60 24 215 180 250 4-Φ45 4 196 180 300 420
112M 240 190 320 460
132S 38 80 10 33 265 230 300 270 210 380 540
132M 590
160M 42 110 12 37 300 250 350 0 4-Φ18 5 5 330 255 450 700
160L 740
180M 48 14 42.5 300 250 350 0 380 280 500 760
180L 800
200L 55 16 49 350 300 400 0 420 305 550 840
225S 4 60 140 18 53 400 350 450 0 8-Φ185 470 335 610 910
225M 2 55 no 16 49 905
4，6 60 140 18 53 935
250M 2 500 450 550 0 510 370 650 1015
4，6 65 58
280S 2 580 410 720 1110
4，6 75 20 67.5
280M 2 65 18 58 1150
4，6 75 20 67.5
315S 2 65 18 58 600 550 660 8-Φ24 6 645 530 900 1390
4，6 80 170 22 71
315M 2 65 140 18 58 1490
4，6 80 170 22 71
315L 2 65 140 18 58 1490
4，6 80 170 22 71
355M 2 75 140 20 67.5 740 680 800 710 655 1035 1675
4，6 95 170 25 86
355L 2 75 140 20 67.5 1675
4，6 95 170 25 86
