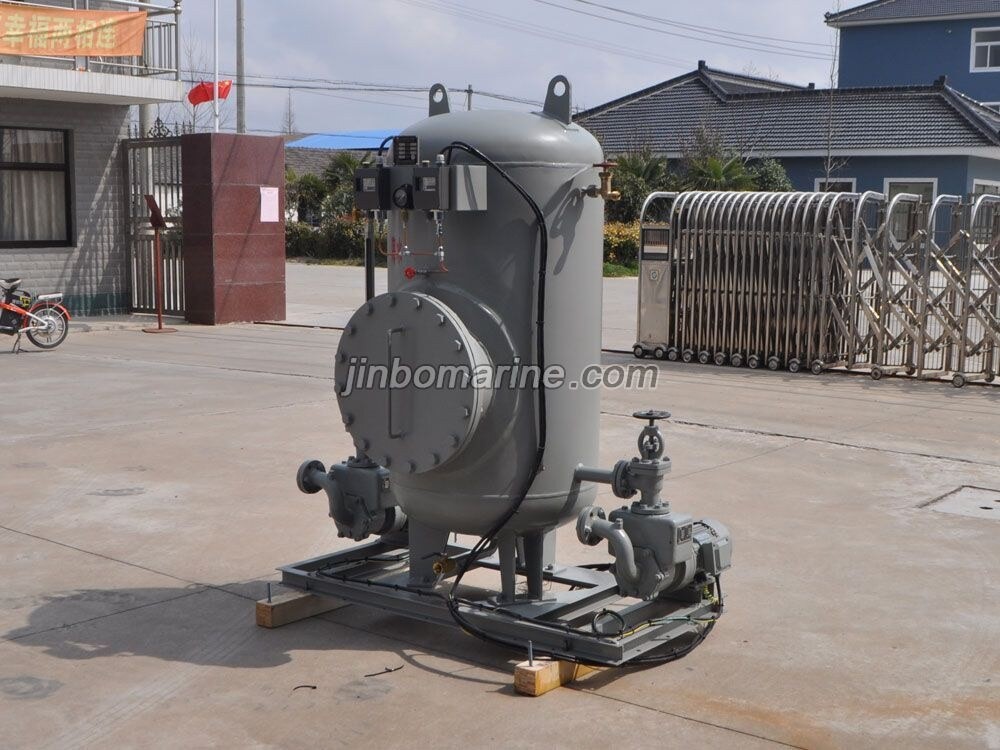

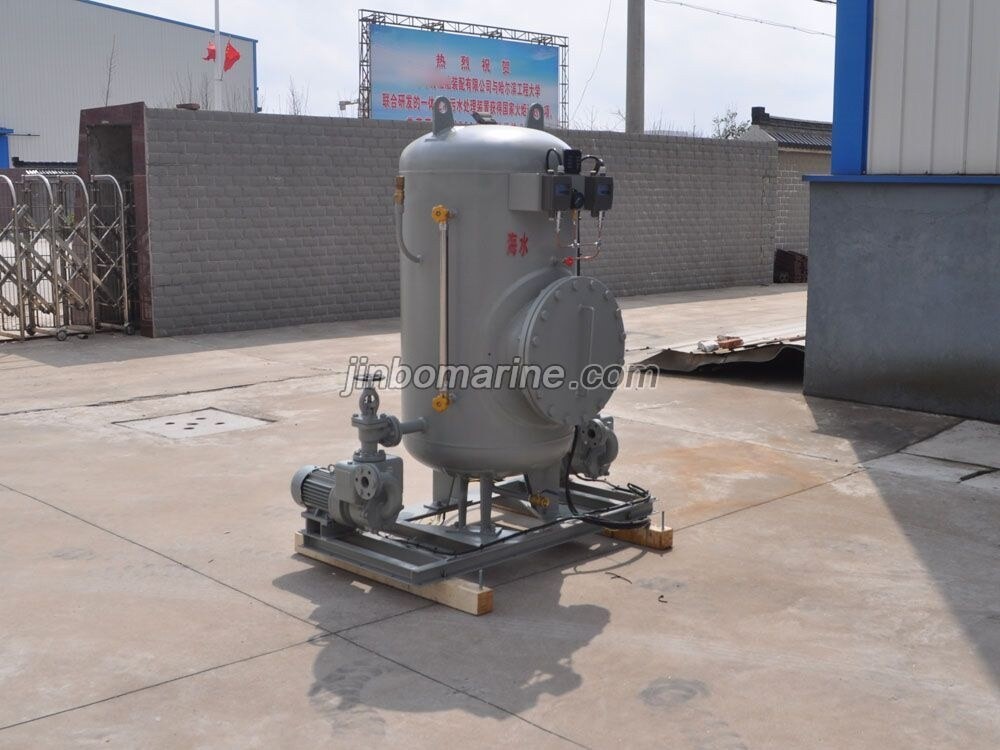

ZYG-0.5 Hydrophore Tank
- Category:Pressure Water Tank
- Certificate:CCS,GL,BV etc.
- Material:Stainless steel 304 or Carbon Steel
- Packing Details:Wooden box
- Delivery Time:15-20days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Technical Requirements:
1.Flange Standard：CB/T46-1999
PN1.0;
2.The shell cover thickness including the forming thinning;
3.The system including security settings;
4.Pipes and support same as the drawings.
Design Datas:
|
Working Pressure |
0.4Mpa |
|
Design Pressure |
0.44Mpa |
|
Working Temp. |
0~45℃ |
|
Design Temp. |
50℃ |
|
Main Materials |
CCS-B/SS304/SS316 |
|
corrosion allowance |
0.75mm |
|
welded joint coefficient |
0.6 |
|
Capacity |
0.5m³ |
|
The relief valve pressure jump |
0.42MPa |
|
Wet Weight |
920 Kgs |
|
Dry Weight |
420 Kgs |
Pumps Main Parameters:
|
Capacity |
3 m³/hr |
|
Head |
40 meters |
|
Speed |
2900 RPM |
|
Power |
2.2 Kw |
