03 Series 350GPH Bilge Pump
- Category:Bilge Pump
- Standards:standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

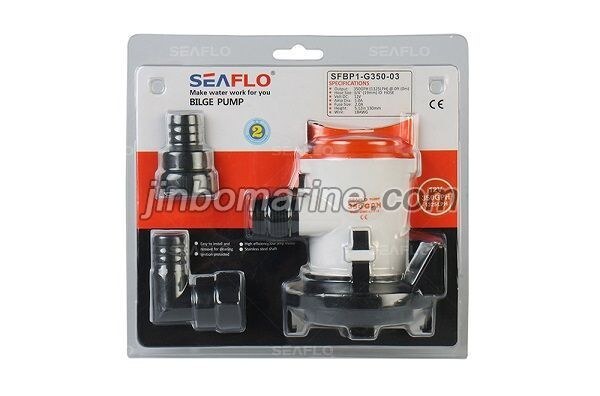

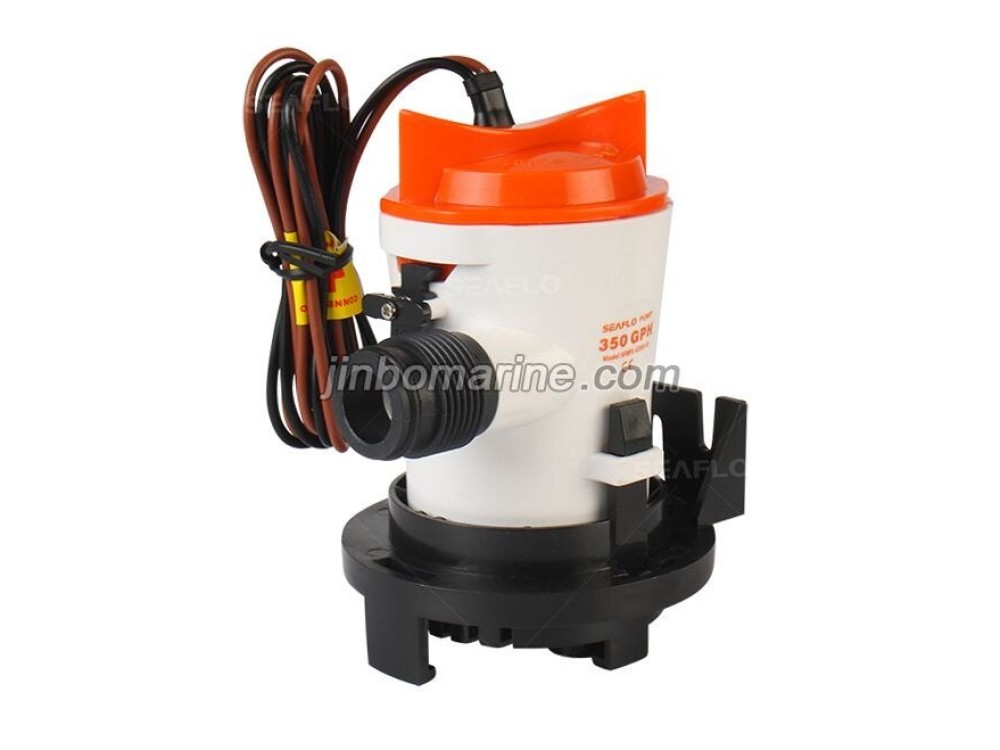

03 Series 350GPH Bilge Pump
Like our 02-series, this mounting bracket allows the pump to be mounted vertically. In addition, this model allows for the utmost flexibility with a removable cartridge for easy maintenance. The standard connection is threaded but included are adaptors to barbed in order to be flexible to your specific needs.
STANDARD PUMP CONFIGURATIONS
| Model | FlowRate | Voltage | Max Draw | Fuse Amps | Head | Wire Lead | Outlet Dia | N.W. / G.W. |
| SFBP1-G350-03 | 350 GPH | 12 V | 1.0 A | 2.0 A | 9' (3m) | 3' (1m) | 3/4" | 0.37/0.46 kg |
PERFORMANCE
|
Voltage(V)
|
Current(A)
|
Flow
|
Head(M)
|
|
|
GPH
|
LPH |
|||
| 12 | 1.5 | 320 | 1211 | 0 |
| 12 | 1.5 | 305 | 1154 | 0.4 |
| 12 | 1.5 | 285 | 1079 | 0.8 |
| 12 | 1.6 | 225 | 852 | 1.2 |
| 12 | 1.8 | 180 | 681 | 1.6 |
| 12 | 1.8 | 155 | 587 | 2 |
