06 Series 750GPH Bilge Pump
- Category:Bilge Pump
- Standards:standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

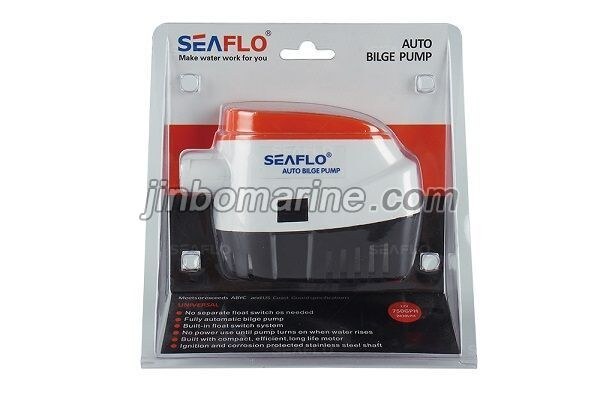

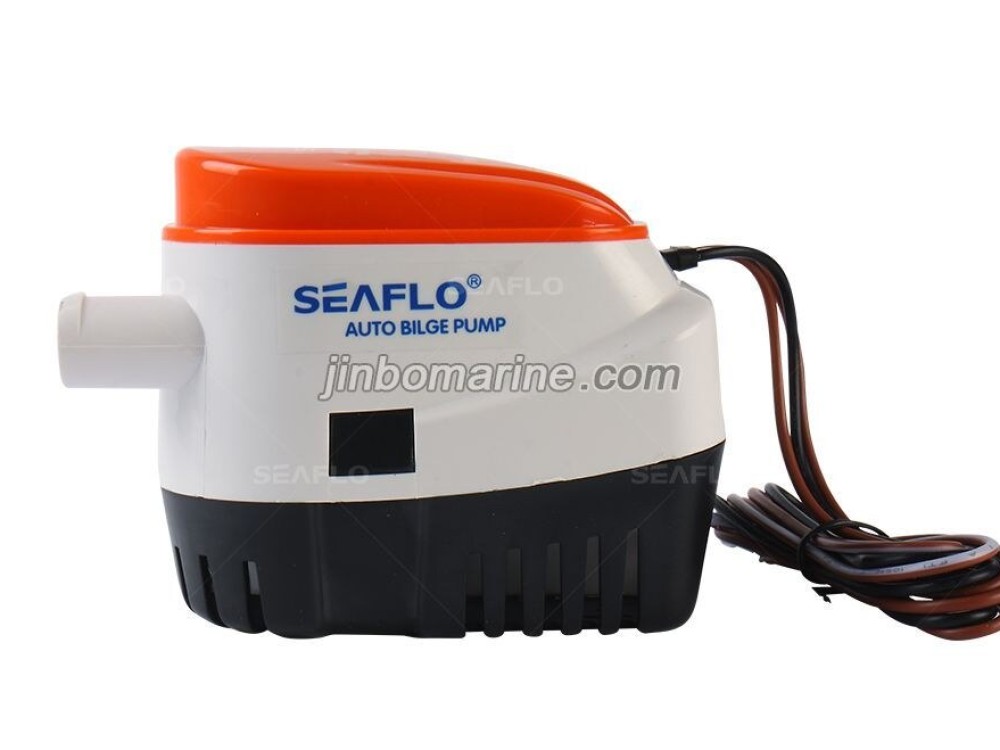

06 Series 750GPH Bilge Pump
All-in-one pump & float switch. No additional float switch required. Pump turns on when water level rises & shuts off when water is removed.
STANDARD PUMP CONFIGURATIONS
| Model | FlowRate | Voltage | Max Draw | Fuse Amps | Head | Wire Lead | Outlet Dia | N.W. / G.W. |
| SFBP1-G750-06 | 750 GPH | 12V | 3.0A | 5.0 A | 9' (3m) | 3' (1m) | 3/4" | 0.47/0.52 kg |
| SFBP2-G750-06 | 750 GPH | 24V | 1.6A | 3.0 A | 9' (3m) | 3' (1m) | 3/4" | 0.47/0.52 kg |
PERFORMANCE
750GPH
|
Voltage(V)
|
Current(A)
|
Flow
|
Head(M)
|
|
| GPH |
LPH |
|||
| 12 | 2.6 | 690 | 2612 | 0 |
| 12 | 2.6 | 680 | 2574 | 0.4 |
| 12 | 2.7 | 620 | 2347 | 0.8 |
| 12 | 2.7 | 560 | 2120 | 1.2 |
| 12 | 2.8 | 430 | 1628 | 1.6 |
| 12 | 2.8 | 370 | 1400 | 2 |
| 12 | 2.8 | 320 | 1211 | 2.4 |
