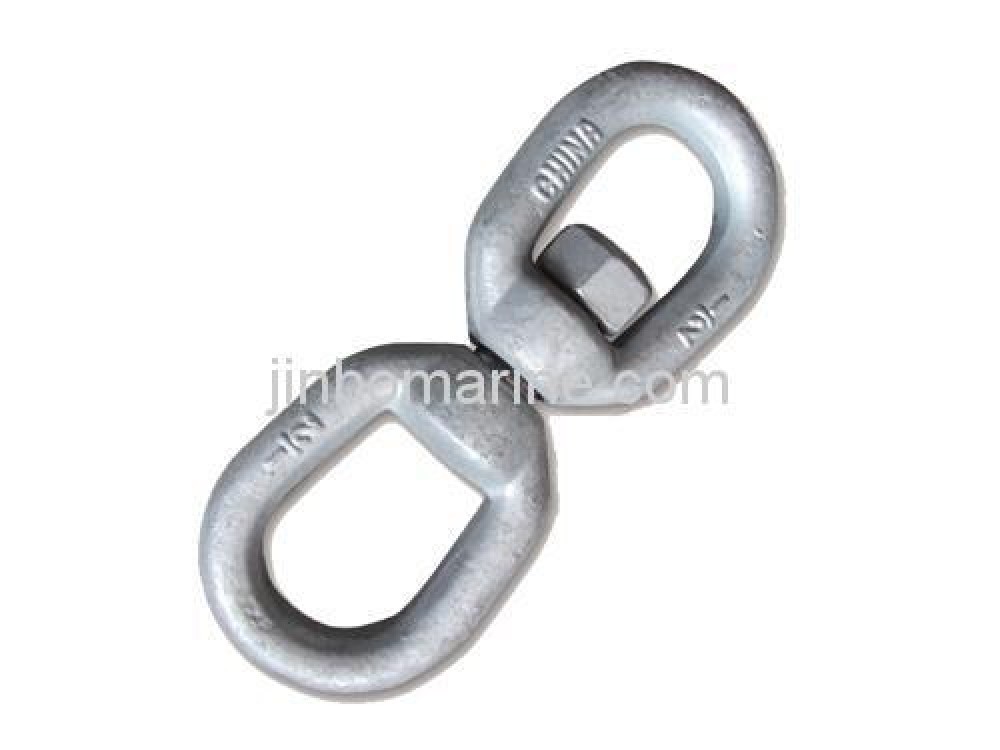

Chain Swivels G402
- Category:Chain Swivel
- Material:45# Steel
- Packing Details:Wooden Box
- Delivery Time:20 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Main Specification
Material: 45# Steel
Finish:Spaying Painting , Spraying Plastics, Galvanized
Size Table
| Size (in) | Working Load Limit (1bs) | Weight Each (1bs) | Dimensions | ||||||||
| A | B | C | D | J | M | R | S | T | |||
| 1/4 | 850 | 0.21 | 1.25 | 0.69 | 0.75 | 1.06 | 0.69 | 0.31 | 2.94 | 1.69 | 3.44 |
| 5/16 | 1250 | 0.39 | 1.63 | 0.81 | 1 | 1.25 | 0.81 | 0.38 | 3.56 | 2.06 | 4.19 |
| 3/8 | 2250 | 0.75 | 2 | 0.94 | 1.25 | 1.5 | 1 | 0.5 | 4.31 | 2.5 | 5.06 |
| 1/2 | 3600 | 1.43 | 2.5 | 1.31 | 1.5 | 2 | 1.31 | 0.63 | 5.44 | 3.19 | 6.44 |
| 5/8 | 5200 | 2.5 | 3 | 1.56 | 1.75 | 2.38 | 1.5 | 0.75 | 6.56 | 3.88 | 7.81 |
| 3/4 | 7200 | 4.13 | 3.5 | 1.75 | 2 | 2.63 | 1.88 | 0.88 | 7.19 | 4.31 | 8.69 |
| 7/8 | 10000 | 6.25 | 4 | 2.06 | 2.25 | 3.06 | 2.13 | 1 | 8.38 | 5 | 10.1 |
| 1 | 12500 | 9 | 4.5 | 2.31 | 2.5 | 3.5 | 2.38 | 1.13 | 9.63 | 5.75 | 11.6 |
| 1 1/4 | 18000 | 16.37 | 5.63 | 2.69 | 3.13 | 3.69 | 3 | 1.38 | 11.13 | 6.75 | 13.4 |
| 1 1/2 | 45200 | 49.06 | 7 | 4.19 | 4 | 4.19 | 4 | 2.25 | 17.13 | 10 | 20.1 |
