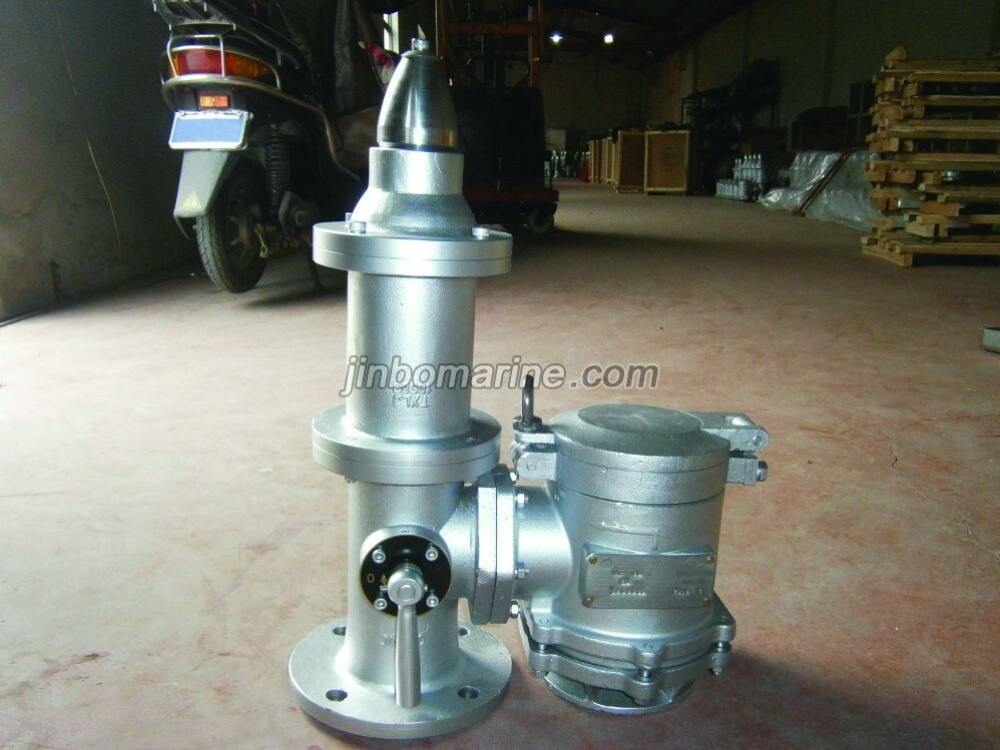

Stainless Steel PV Valve with Gas Freeing Cover

  • Category:PV VALVE
  • Material:SUS304, SUS316
  • Standards:ISO15364
  • Certificate:CCS, BV, ABS, RMRS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

China Stainless Steel PV Valve with Gas Freeing Cover:

Marine PV valve(pressure/vacuum valve for cargo oil tank)is also called as high-velocity relief valve, high velocity P/V valve, generally used in the relief system of the oil tanker and chemical tanker, according to the current regulations IMO and IBC.The purpose of the high velocity valve is to provide automatic control of pressure differentials during liquid cargo ship loading, voyage,ballasting and de-ballasting without any manual operation, also, it provides auto-protection against fire and explosions on deck. Additionally in the event that the inert gas system can not supply gas promptly, the vacuum valve can auto open to protect the tank against excessive vacuum when de-ballasting on dock. Normal, when the pressure risen in tank because of temperature or loading, the pressure valve open automatically and vent gas. When the pressure of tank come to pressure differentials, the vacuum valve or pressure valve all can be automatic resetted. If an ignition occurs outside the tank space, the flames will be quenched in the flame trap.

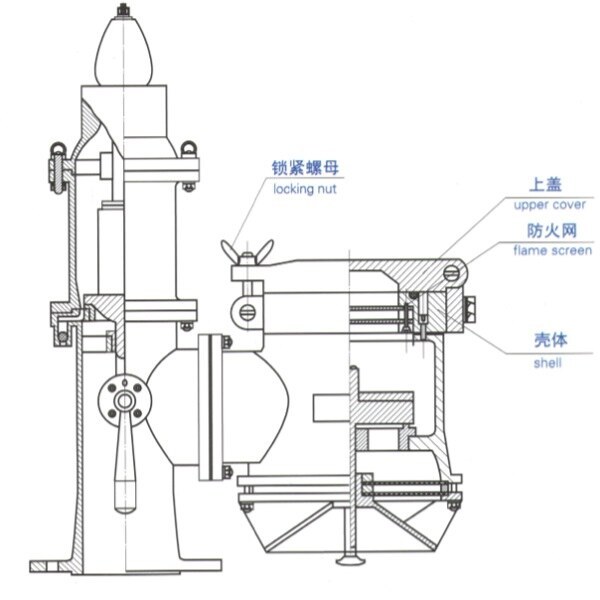

A gas freeing cover is necessary while doing other works fo the tank such as cleaing, removing the gas. Becaues such works needs ventilation and the pressure can not work when the pressure is not low or without pressure.

The pressure valve can not be opened manually, and it works with the velocity oof not smaller than 30m/s.

Specification:

Material: Cast Steel or Stainless Steel

Flange Standard: GB, JIS, DIN, ANSI, BS

Opening Pressure of Vacuum Valve: -3.5kPa

Opening Pressure of Pressure Valve on the oil tank is 14kPa, on the chemical tank is 20kPa.

The opening pressure of the pressure may be different, but the differences of opening pressure and flow range is inapparent if the pressure valves have the same diameter.

Marine Size List(mm):
DN D2 D1 D L H Assembly hole
250 320 350 395 460 860 12xø22
200 268 295 340 455 850 8xø18
150 202 225 265 385 710 8xø18
125 178 200 240 380 665 8xø18
100 148 170 210 285 565 4xø18
80 128 150 190 285 535 4xø18
65 110 130 160 255 485 4xø14
50 90 110 140 255 485 4xø14

*The flange size in the list as per GB2501.We also can machine the flange as per JIS, DIN, ANSI.
