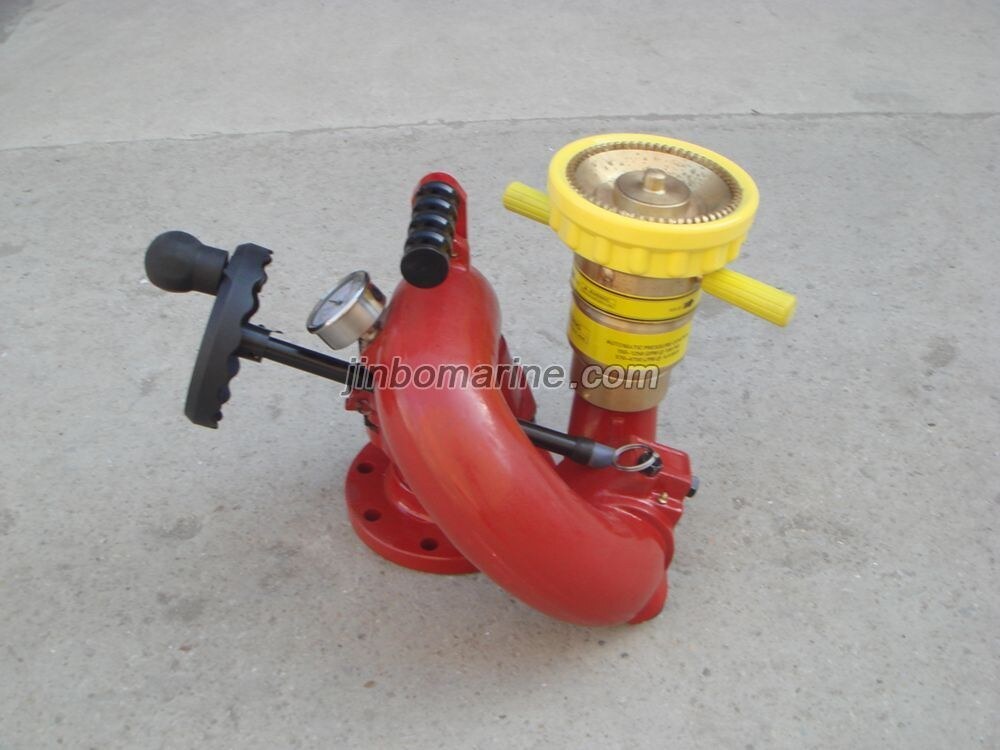

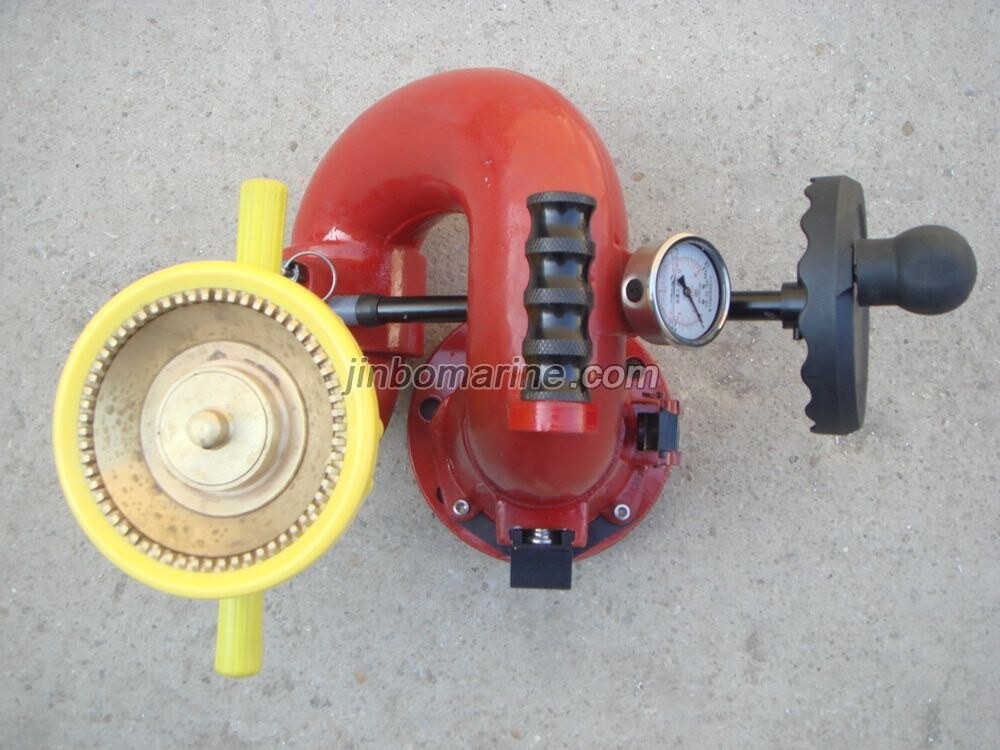

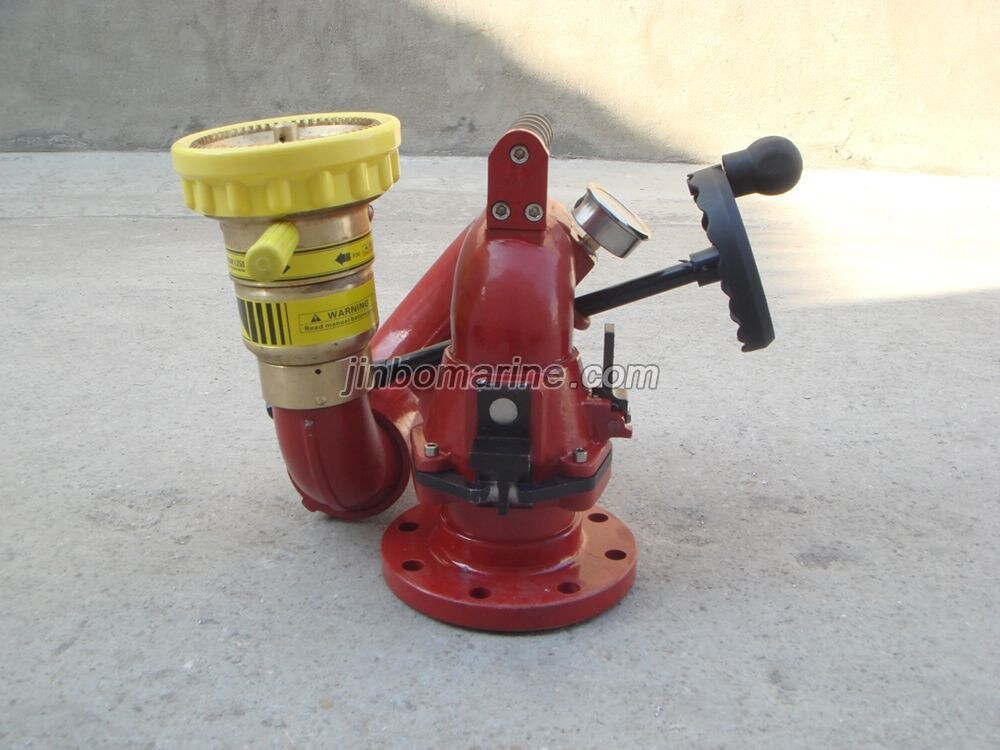

Aluminum Manual Fire Monitor PS80-HM-CN

Type:PS80-HM-CN
Flow Range :0-80L/S Automatic Nozzle (0-1250GPM)
Working Pressure : 10 bar
Max Reach @ Max Flow : 80m
Range Of Motion : -90°~+90°Vert , 360°Rot
Max Fog Angle ： 120°
Horizontal Control ： Lever Action Rotational Lock
Material (body) ：Aluminum
Material (Gear) ：Aluminum
Material (nozzle) ：Brass, Adjustable
Material (handwheel) ： plastic
Pump Requirement For Minimum Performance ：80L/S@ 8 bar
Pipe dimensions for installation : 4 Inch
Monitor Inlet : DN100 flange
Monitor Outlet：2.5 inch (65mm)
Paint : Fire Red
